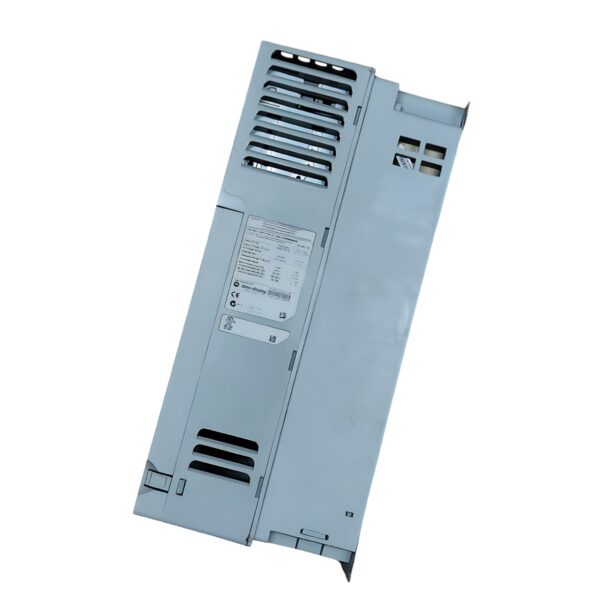

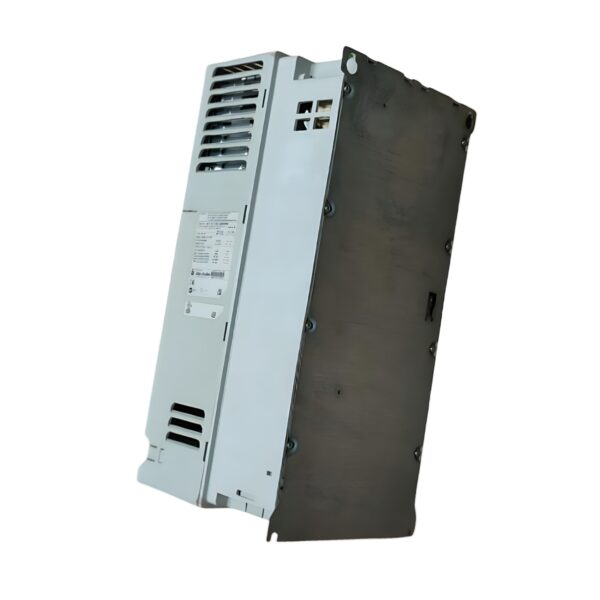

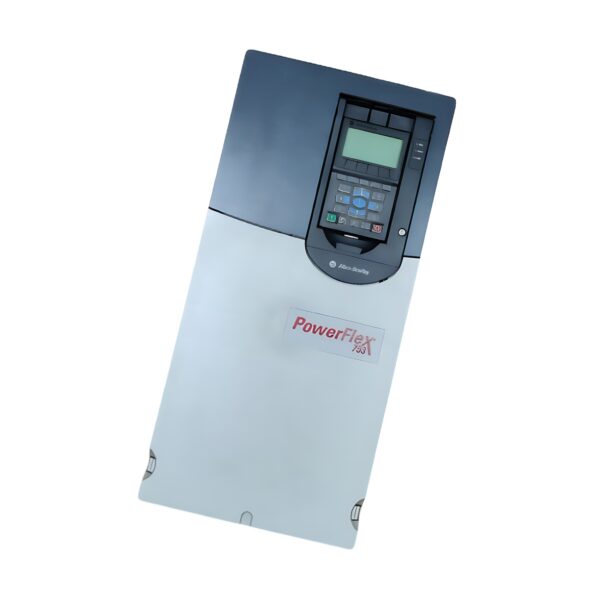

Allen Bradley 20F11NC060JA0NNNNN Inverter Drive – 30kW, IP20

The Allen Bradley 20F11NC060JA0NNNNN is a robust PowerFlex 753 adjustable frequency AC drive, ideal for a wide range of industrial motor control applications. Designed for use on 400V three-phase input, this drive delivers 60 A nominal output current, powering motors up to 30 kW Normal Duty or 22 kW Heavy Duty.

Equipped with embedded I/O, DC terminals, CE-compliant EMC filtering, and an integrated brake transistor, this drive provides advanced control in a compact Frame 4 IP20 open-type enclosure. The drive ships without a HIM module, making it suitable for remote or network-controlled environments.

Technical Specifications

Model: 20F11NC060JA0NNNNN
Series: PowerFlex 753
Drive Type: Variable Frequency Drive (VFD)
Power Rating (ND): 30 kW
Power Rating (HD): 22 kW
Frame Size: 4
Enclosure Type: IP20 / NEMA Open
Cooling Method: Air Cooled
Display: Blank Faceplate (No HIM)
EMC Filter: Included (CE-Compliant)
Brake Transistor: Included
Brake Resistor: Not fitted
CM Jumper: Installed
Slot Count: 5 total option slots

Electrical Specifications

Input Voltage Range: 380…480 VAC, 3-phase
Nominal Output Current: 60 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
DC Bus Voltage: ~650 VDC
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Input Type: AC Input with DC Terminals
  Short-Circuit Current Rating: 100 kA with recommended protection

Network & Interface Specifications

Integrated Interfaces:

• 1 × Industrial Ethernet
• 1 × RS-485
• No USB
• No HIM

Supported Protocols:

• Protocols such as EtherNet/IP, Modbus, and TCP/IP are supported via optional communication modules

Mechanical Specifications

Mounting Style: Panel / Wall Mount
IP Rating: IP20
Width: 222 mm
Height: 474 mm
Depth: 212 mm
Cooling Type: Internal Fan
Orientation: Vertical Mounting Only

Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Humidity: 5–95% non-condensing
Altitude: Up to 1000 m (derating required above)
Pollution Degree: 2
Installation Location: Indoor

Compliance & Certifications

CE / UKCA Marked: Yes
UL / cUL Listed: Yes
EMC Standards: EN 61800-3, Second Environment
Safety Compliance: EN 61800-5-1
RoHS Compliant: Yes
Functional Safety: Expandable via optional safety modules

Key Features & Benefits

✅ 60A Output Drive – Supports 30kW Normal Duty / 22kW Heavy Duty motors

✅ EMC Filtered + Brake Transistor – Enhanced electrical protection and braking efficiency

✅ Compact Frame 4 IP20 Package – Designed for panel-mounted control environments

✅ Blank HIM Panel – Ready for remote/network-based control
