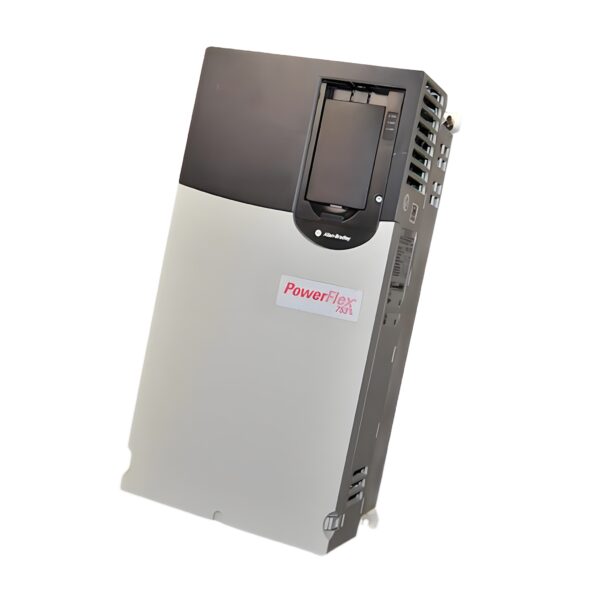

Allen Bradley 20F11ND096AA0NNNNN Inverter Drive – 55kW, IP20

The Allen Bradley 20F11ND096AA0NNNNN is a high-capacity PowerFlex 753 AC drive engineered for flexible and reliable motor control in demanding industrial environments. Delivering 96 A output current, this drive supports 480 VAC 3-phase or 650 VDC input and provides 75 HP (55 kW) at normal duty operation.

This model features a NEMA / UL Type Open IP20 chassis, internal air cooling, and an integrated dynamic braking transistor for responsive stop capabilities. The drive includes a blank HIM cover (no Human Interface Module) and supports optional expansion via dedicated communication slots—enabling scalable integration into Rockwell Automation control systems. Built for cabinet installation, it is ideal for heavy-duty applications that demand both power and flexibility.

Technical Specifications

Model: 20F11ND096AA0NNNNN
Series: PowerFlex 753
Type: AC Variable Frequency Drive
Power Rating (ND): 55.0 kW (75 HP)
Power Rating (HD): ~45 kW (60 HP) [typical]
Frame Size: [Frame 5 – confirm with Rockwell catalog]
Enclosure Type: NEMA / UL Type Open (IP20/IP00)
Cooling Method: Air cooled
Display Option: Blank (No HIM included)
Brake IGBT: Integrated
Brake Resistor: Not included
CM Jumper: Standard configuration
Control Type: Standard
Mounting Type: Panel mount
Precharge Circuit: Included

Electrical Specifications

Input Voltage: 3-phase, 380…480 VAC
DC Bus Voltage: 650 VDC
Output Current: 96 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Short Circuit Rating: 100 kA with appropriate fusing
  Power Terminals: Compression lugs or screw-type depending on frame
  EMC Filter: Optional external filter recommended for CE compliance

Network & Interface Specifications

Integrated Interfaces:

• No HIM included (blank cover)
• RS-485 communication port standard
• One or more optional communication slots for protocol, safety, or feedback modules
• Configuration via Studio 5000, Connected Components Workbench, or external HIM

Supported Protocols (via expansion):
EtherNet/IP, DeviceNet, Modbus, ControlNet, TCP/IP, PROFIBUS, SERCOS (requires communication card)

I/O Capabilities (Typical):

• Embedded digital and analog I/O available – varies per configuration
• Expandable via option cards

Mechanical Specifications

Height: Approx. 700–800 mm
Width: Approx. 300–350 mm
Depth: Approx. 300 mm
Weight: Approx. 50–65 kg
Mounting Orientation: Vertical panel mount
Enclosure Type: Open – for use inside an industrial cabinet
Cooling: Internal fan cooled

20F11ND096AA0NNNNN Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95%, non-condensing
Altitude: Up to 1000 m without derating
Pollution Degree: 2
Shock Rating: 15 g
Vibration Resistance: 1 g @ 10–500 Hz
Compliance Area: Suitable for industrial and commercial use

Compliance & Certifications

Certifications: UL, cUL, CE, RoHS
EMC Compliance: Requires external filter for CE certification
Functional Safety: STO and other functions supported via safety modules
SIL/PL Rating: SIL2 / PLd capable
Standards Met: EN 61800-3, EN 61800-5-1, IEC 61000-6-2 / 6-4

Key Features & Benefits

✅ 96 A Output Rating – Supports motors up to 75 HP, ideal for large process or drive systems

✅ Dynamic Braking Transistor – Built-in IGBT supports rapid stop capabilities

✅ Expansion Ready – Optional communication slots enable flexible network and safety integration

✅ NEMA Open Type Enclosure – Designed for cabinet mounting in ventilated control systems

✅ Blank HIM Cover – Ideal for remote or software-based configuration via Studio 5000 or CCW

📦 Order the Allen Bradley 20F11ND096AA0NNNNN from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 20F11ND096AA0NNNNN prices. This PowerFlex 753 drive provides reliable high-output motor control with integrated braking and modular communication support—ready for performance in your toughest applications.

Click here to request a quote or check availability

Drive Outlet Megastore – your trusted source for Allen Bradley PowerFlex drives and scalable industrial automation solutions.
