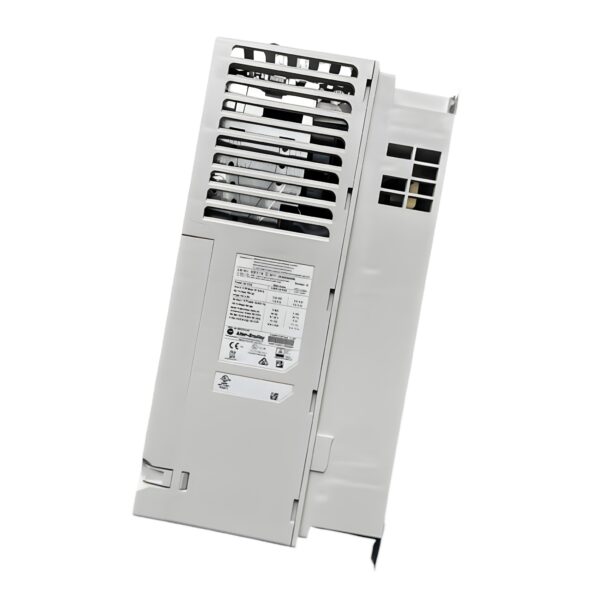

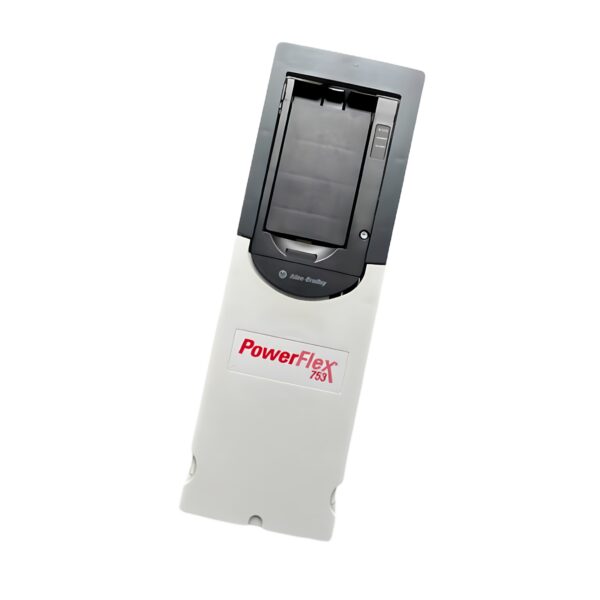

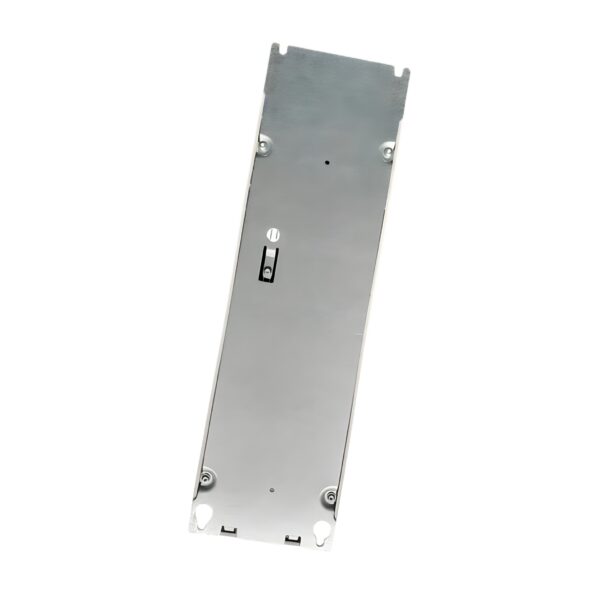

Allen Bradley 20F11RC8P7JA0NNNNN Inverter Drive – 4kW, IP20

The Allen Bradley 20F11RC8P7JA0NNNNN is a compact and efficient PowerFlex 753 AC drive designed for small motor control applications. Delivering 8.7 A output current, this model supports 4.0 kW at normal duty (ND) and 2.2 kW at heavy duty (HD) operation with a 3-phase 400 VAC input supply.

Built into a Frame 1 chassis, the drive is air-cooled and features an open-type IP20 enclosure with integrated EMC filtering and a factory-installed dynamic braking transistor. It is ideal for machine-level automation environments where compact size, embedded I/O, and high-performance features are essential. The drive is supplied without a Human Interface Module (HIM), allowing for software-based commissioning or external HIM use.

Technical Specifications

Model: 20F11RC8P7JA0NNNNN
Series: PowerFlex 753
Type: AC Variable Frequency Drive
Power Rating (ND): 4.0 kW (5 HP)
Power Rating (HD): 2.2 kW (3 HP)
Frame Size: 1
Enclosure Type: IP20 / Open Type
Cooling Method: Air cooled
Display Option: Blank (No HIM included)
Brake IGBT: Integrated
Brake Resistor: Not included
CM Jumper: Installed
Control Type: Standard with embedded I/O
Mounting Type: Panel mount
Filter Type: CE-Compliant EMC Filter (Second Environment)

Electrical Specifications

Input Voltage: 3-phase, 380…480 VAC
Output Current: 8.7 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Short Circuit Rating: 100 kA with proper fusing
  Power Terminals: Screw-type connections
  Drive Input Type: AC with DC bus terminals
  DC Bus Voltage: Approx. 650 VDC

Network & Interface Specifications

Integrated Interfaces:

• 1 x RS-485 serial port
• No HIM included (blank plate installed)
• No embedded communication module
• Expansion slots available for optional communication and feedback modules
• Configurable via Studio 5000, Connected Components Workbench, or external HIM

Supported Protocols (via expansion only):
EtherNet/IP, Modbus, DeviceNet, ControlNet, PROFIBUS, TCP/IP

Embedded I/O Capabilities:

• 3 x Digital Inputs
• 2 x Digital Outputs
• 1 x Analog Input
• 1 x Analog Output

Mechanical Specifications

Height: 400.5 mm
Width: 110 mm
Depth: 211 mm
Weight: Approx. 6–8 kg
Mounting Orientation: Vertical panel mount
Enclosure Type: Open – for integration inside a control cabinet
Cooling: Internal fan cooled

20F11RC8P7JA0NNNNN Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95%, non-condensing
Altitude: Up to 1000 m without derating
Pollution Degree: 2
Shock Rating: 15 g
Vibration Resistance: 1 g @ 10–500 Hz
Compliance Area: Suitable for domestic and commercial industrial use

Compliance & Certifications

Certifications: UL, cUL, CE, RoHS
EMC Compliance: CE EMC Directive – Second Environment filter included
Functional Safety: Supports STO via optional safety modules
SIL/PL Rating: SIL2 / PLd capable (with expansion)
Standards Met: EN 61800-3, EN 61800-5-1, IEC 61000-6-2 / 6-4

Key Features & Benefits

✅ 8.7 A Output Rating – Suitable for motors up to 4.0 kW at normal duty

✅ Compact Frame 1 Design – Saves panel space and simplifies installation

✅ Integrated Brake IGBT – Enables safe and fast motor stop functionality

✅ Embedded Analog & Digital I/O – Enables flexible control directly from the drive

✅ No HIM Configuration – Blank plate ideal for remote or software configuration
