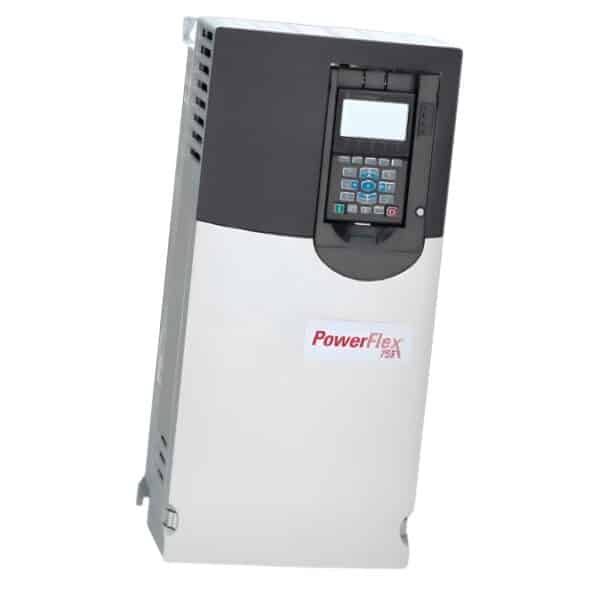

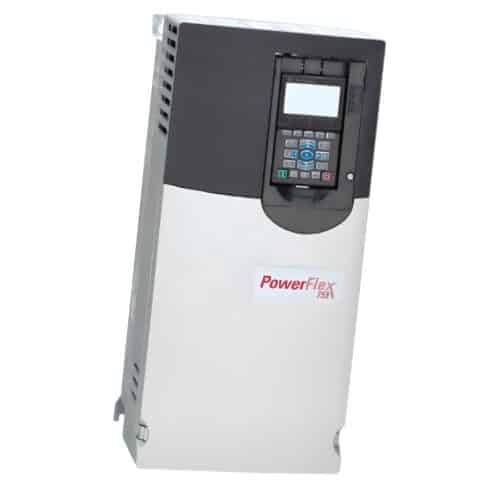

Allen Bradley 20G11NC043JA0NNNNN Inverter Drive – 18.5kW, IP20, PowerFlex 755

The Allen Bradley 20G11NC043JA0NNNNN is a high-performance PowerFlex 755 adjustable frequency AC drive, engineered for demanding industrial motor control applications. Supporting embedded EtherNet/IP communication, this drive delivers up to 22 kW (ND) or 18.5 kW (HD) motor output at 43 A nominal output current. Designed with a compact Frame 3 architecture and open type IP20 enclosure, it includes built-in CE-compliant filtering and an internal braking transistor for energy-efficient stopping.

A blank front panel is provided instead of an integrated HIM, allowing users to deploy panel-based or remote network control solutions.

Technical Specifications

Model: 20G11NC043JA0NNNNN
Series: PowerFlex 755
Drive Type: Adjustable Frequency AC Drive (VFD)
Power Rating (ND): 22 kW / 30 HP
Power Rating (HD): 18.5 kW / 25 HP
Frame Size: 3
Enclosure Type: IP20 / Open Type
Cooling Method: Air Cooled
Display: Blank Faceplate (No HIM)
EMC Filter: Included (CE-Compliant)
Brake Transistor: Included
Brake Resistor: Not Included
CM Jumper: Installed
Slot Count: 5 total option slots

Electrical Specifications

Input Voltage Range: 380…480 VAC, 3-phase
Nominal Output Current: 43 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
DC Bus Voltage: ~650 VDC
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Input Type: AC Input with DC Terminals
  Short-Circuit Current Rating: 100 kA with recommended protection
  Power Terminals: Screw terminal type

Network & Interface Specifications

Integrated Interfaces:

• 1 × EtherNet/IP
• 1 × RS-485
• No USB
• No HIM unit

Supported Protocols:

• EtherNet/IP
• Modbus
• TCP/IP
  Additional protocols via expansion cards

Mechanical Specifications

Mounting Style: Panel / Wall Mount
IP Rating: IP20
Width: 190 mm
Height: 454 mm
Depth: 212 mm
Cooling Type: Internal Fan
Orientation: Vertical Mounting Only

Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Humidity: 5–95% non-condensing
Altitude: Up to 1000 m (derating above)
Shock: 15 g
Vibration: 1 g, 10…500 Hz
Pollution Degree: 2
Installation Location: Indoor

Compliance & Certifications

CE / UKCA Marked: Yes
UL / cUL Listed: Yes
EMC Standards: EN 61800-3, Second Environment
Safety Compliance: EN 61800-5-1
RoHS Compliant: Yes
Functional Safety: Expandable with safety options

Key Features & Benefits

✅ 43A Output Capacity – Drives motors up to 22kW ND or 18.5kW HD

✅ Integrated EtherNet/IP – Ready for modern industrial Ethernet applications

✅ Built-in EMC Filtering – CE-compliant for second environment operation

✅ Flexible Control Options – Blank faceplate for remote or integrated system control

✅ Compact, Robust Design – Frame 3, air-cooled with 5 option slots
