Allen Bradley 20G11TD617AN0NNNNN Inverter Drive – 370kW, IP00

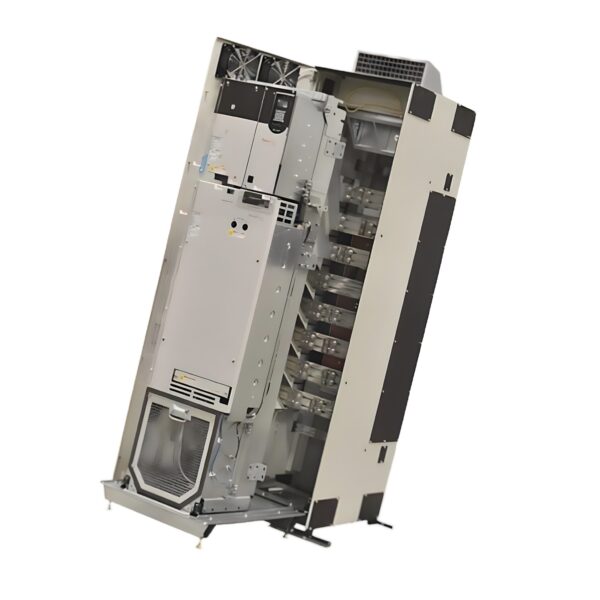

The Allen Bradley 20G11TD617AN0NNNNN is a high-capacity PowerFlex 755 AC drive engineered to deliver reliable, large-scale motor control in demanding industrial applications. With a 617 A output rating, this unit supports motors up to 370 kW (500 HP) at normal duty and operates on a 3-phase 480 VAC input or 650 VDC via integrated precharge.

Built in an IP00 open-type air-cooled chassis, this drive is designed for integration into ventilated control enclosures. It includes a CE-compliant EMC filter for industrial noise suppression, ships without a Human Interface Module (blank cover installed), and is configured without an internal dynamic braking transistor. The CM jumper is removed for flexible grounding configurations in complex plant installations.

Technical Specifications

Model: 20G11TD617AN0NNNNN
Series: PowerFlex 755
Type: AC Variable Frequency Drive
Power Rating (ND): 370.0 kW (500 HP)
Power Rating (HD): [Typically ~315 kW (HD) – confirm via manual]
Frame Size: [Large Frame – Frame 10+ depending on configuration]
Enclosure Type: IP00 / Open Type
Cooling Method: Air cooled
Display Option: Blank (No HIM included)
Brake IGBT: Not included
Brake Resistor: Not included
CM Jumper: Removed
Control Type: Standard
Mounting Type: Panel mount
Precharge Circuit: Integrated (AC input with precharge)

Electrical Specifications

Input Voltage: 3-phase, 380…480 VAC
DC Bus Voltage: 650 VDC
Output Current: 617 A
Input Frequency: 50/60 Hz
Max. Output Frequency: 590 Hz
Overload Capacity:

• 110% for 60 sec (ND)
• 150% for 60 sec (HD)
  Short Circuit Rating: 100 kA with specified protection
  Power Terminals: Busbar terminals (due to high current)
  DC Terminals: Available for optional DC-bus integration
  EMC Filter: Included (CE Second Environment compliant)

Network & Interface Specifications

Integrated Interfaces:

• No HIM included – blank cover installed
• RS-485 and communication interfaces not included by default
• Expansion options via 5 available slots for protocol, safety, and feedback modules
• Configuration via Studio 5000, Connected Components Workbench, or external HIM

Supported Protocols (via optional cards):
EtherNet/IP, ControlNet, DeviceNet, Modbus, TCP/IP, PROFIBUS

Built-in I/O:

• Varies by configuration – expansion available through option slots

Mechanical Specifications

Height: Approx. 1200–1600 mm
Width: Approx. 500–700 mm
Depth: Approx. 500 mm
Weight: Approx. 200–250 kg
Mounting Orientation: Vertical panel mount
Enclosure Type: Open (IP00) – requires control cabinet with airflow
Cooling: Forced air (internal fan cooled)

20G11TD617AN0NNNNN Environmental Specifications

Operating Temperature: 0…50 °C (up to 60 °C with derating)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95%, non-condensing
Altitude: Up to 1000 m without derating
Pollution Degree: 2
Shock Rating: 15 g
Vibration Resistance: 1 g @ 10–500 Hz
Compliance Area: For industrial cabinet installations in commercial or process plant environments

Compliance & Certifications

Certifications: UL, cUL, CE, RoHS
EMC Compliance: CE EMC Directive – Second Environment filter included
Functional Safety: STO and advanced safety supported with optional modules
SIL/PL Rating: SIL2 / PLd capable (with expansion)
Standards Met: EN 61800-3, EN 61800-5-1, IEC 61000-6-2 / 6-4

Key Features & Benefits

✅ 617 A High Current Output – Supports 500 HP motors for high-inertia or continuous-duty applications

✅ Precharge Circuit Built-In – Manages inrush current for smooth power-up and protection of supply infrastructure

✅ IP00 Open Type – Designed for integration into custom or ventilated control enclosures

✅ Flexible Grounding – CM jumper removed for advanced plant bonding and insulation strategies

✅ Modular Expansion – Up to 5 option slots support full communication, feedback, and safety integration

📦 Order the Allen Bradley 20G11TD617AN0NNNNN from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 20G11TD617AN0NNNNN prices. This ultra-high-current PowerFlex 755 AC drive is built for industrial operations demanding robust performance, EMC compliance, and integration flexibility—ready for your most intensive automation challenges.

Click here to request a quote or check availability

Drive Outlet Megastore – your trusted source for Allen Bradley PowerFlex drives and high-power automation solutions.
