20G1AND186JA0NNNNN

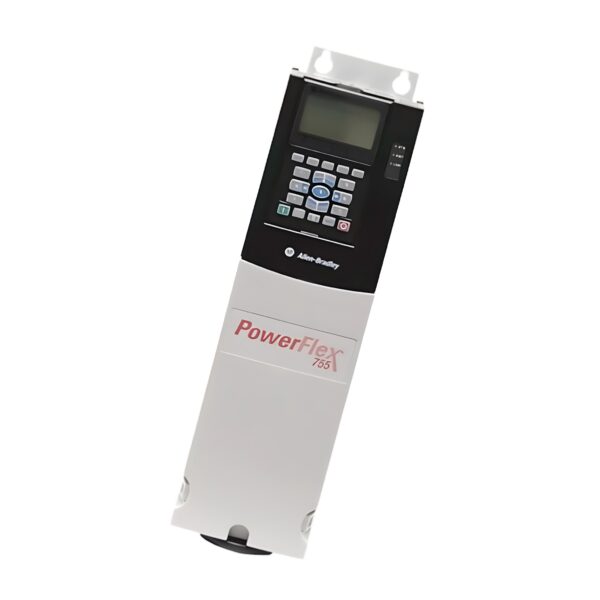

Allen Bradley 20G1AND186JA0NNNNN Inverter Drive – 110kW, IP20

£14,715.35 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Output Current 186 A
Input Voltage 3-phase, 380…480 VAC
Model 20G1AND186JA0NNNNN
Series PowerFlex 755
Power Rating (ND) 112.0 kW (150 HP)
Power Rating (HD) [Typically ~90 kW – refer to user manual]
Type AC Variable Frequency Drive
Enclosure Type IP20 / IP00 (Open Type)
Control Type Standard
Mounting Type Panel mount
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Complete Your Drive System with the Right Motor & Gearbox

Explore electric motors, worm gearboxes and complete geared motors at our sister site, Worm Gear Motors Online. Get expert help selecting the right combination for your inverter, required speed and torque.

Explore Motors & Gearboxes ↗
SKU: 20G1AND186JA0NNNNN Category: Tags: , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 20G1AND186JA0NNNNN Inverter Drive – 110kW, IP20

The AB 20G1AND186JA0NNNNN is a high-performance PowerFlex 755 AC drive engineered for large industrial motor control applications requiring precision, power, and network integration. Delivering 186 A output current, this drive supports 480 VAC three-phase input and provides 150 HP (112 kW) at normal duty operation.

Technical Specifications

Model 20G1AND186JA0NNNNN
Series PowerFlex 755
Type AC Variable Frequency Drive
Power Rating (ND) 112.0 kW (150 HP)
Power Rating (HD) [Typically ~90 kW – refer to user manual]
Frame Size [Frame 6 – consult Rockwell documentation for confirmation]
Enclosure Type IP20 / IP00 (Open Type)
Cooling Method Air cooled
Display Option Blank (No HIM included)
Brake IGBT Integrated (internal)
Brake Resistor Not included
CM Jumper Standard configuration
Control Type Standard
Mounting Type Panel mount
Precharge Circuit Integrated (AC input with precharge)

Electrical Specifications

Input Voltage 3-phase, 380…480 VAC
DC Bus Voltage Approx. 650 VDC
Output Current 186 A
Input Frequency 50/60 Hz
Max. Output Frequency 590 Hz
Short Circuit Rating 100 kA with specified fuses
EMC Filter Not included (optional external filter required for CE compliance)
Power Terminals Compression lugs or busbar (frame dependent)
Overload Capacity 110% for 60 sec (ND) 150% for 60 sec (HD) Short Circuit Rating: 100 kA with specified fuses EMC Filter: Not included (optional external filter required for CE compliance) Power Terminals: Compression lugs or busbar (frame dependent)

Network & Interface Specifications

Supported Protocols (via expansion) EtherNet/IP (embedded), DeviceNet, ControlNet, Modbus, TCP/IP, PROFIBUS (via optional modules)
Display / Interface No HIM included (blank plate installed)
Integrated Interfaces Embedded EtherNet/IP communication port 1 x RS-485 serial interface Supports DLR (Device Level Ring) Configuration via Studio 5000 , Connected Components Workbench, or external HIM

20G1AND186JA0NNNNN Mechanical Specifications

Height Approx. 900 mm
Width Approx. 300 mm
Depth Approx. 350 mm
Weight Approx. 70–80 kg
Mounting Orientation Vertical panel mount
Enclosure Type Open – control panel installation required
Cooling Integrated fan (air cooled)

Environmental Specifications

Operating Temperature 0…50 °C (up to 60 °C with derating)
Storage Temperature –40…85 °C
Relative Humidity 5% to 95%, non-condensing
Altitude Up to 1000 m without derating
Pollution Degree 2
Shock Rating 15 g
Vibration Resistance 1 g @ 10–500 Hz
Compliance Area Suitable for industrial and commercial installations

Compliance & Certifications

Certifications UL, cUL, CE, RoHS
EMC Compliance Optional EMC filter required for CE environments
Functional Safety Supports Safe Torque-Off (STO) and advanced safety with expansion
SIL/PL Rating SIL2 / PLd achievable with appropriate modules
Standards Met EN 61800-3, EN 61800-5-1, IEC 61000-6-2 / 6-4

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 20G1AND186JA0NNNNN is the correct replacement?

Check the motor rating, supply voltage, drive output current, enclosure rating and control interface against your existing installation or the relevant manufacturer datasheet.

How quickly can 20G1AND186JA0NNNNN be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 80 kg
