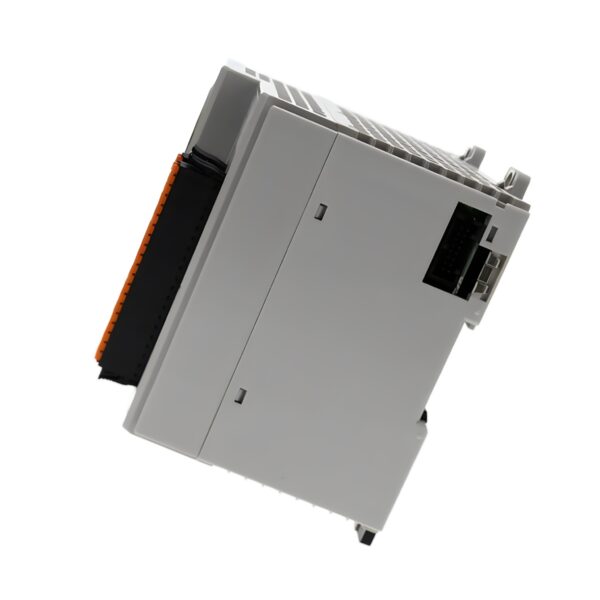

Allen Bradley 1769-L24ER-QBFC1B CompactLogix Controller

The AB 1769-L24ER-QBFC1B is a powerful CompactLogix controller that combines digital, analog, and communication capabilities into a single integrated unit. With 750KB of memory, 16 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs, it delivers flexible control in compact applications.

Designed for mid-range machine control, this controller supports up to four additional 1769 expansion modules and includes dual EtherNet/IP ports with Device Level Ring (DLR) support, plus a USB programming port. Its integrated I/O and compact footprint make it ideal for space-constrained panels without sacrificing performance.

Technical Specifications

Model: 1769L24ERQBFC1B
Series: CompactLogix 5370
Type: Integrated Controller
Memory Size: 750 KB
Digital Inputs: 16 x 24 V DC
Digital Outputs: 16 x 24 V DC sourcing
Analog Inputs: 4 (voltage or current, software-selectable)
Analog Outputs: 2 (voltage or current, software-selectable)
Expansion Capability: Supports up to 4 additional 1769 modules
Application: Compact machine control, hybrid I/O applications, integrated PLC systems

Electrical Specifications

Supply Voltage: 24 V DC
Digital Input Voltage Range: 24 V DC (sink/source compatible)
Digital Output Type: Sourcing (PNP)
Analog Input Range: ±10V, 0–10V, 0–20 mA, 4–20 mA
Analog Output Range: ±10V, 0–10V, 0–20 mA, 4–20 mA
Signal Resolution (Analog): 15-16 bit typical
USB Port: 1 x USB Type B (programming)
EtherNet/IP Ports: 2 x RJ45 with DLR support
Overvoltage Protection: Integrated
Power Consumption: Approx. 7.5 W
Battery: Not required – uses non-volatile memory

Mechanical Specifications

Width: 140 mm
Height: 118 mm
Depth: 105 mm
Mounting Type: DIN rail
Connection Type: Plug-in terminal block
Installation Orientation: Vertical
Rack Assembly Possible: No
Weight: Approx. 0.55 kg
Display: Yes (status indicators)
Front Installation Possible: Yes

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
IP Rating: IP20
Vibration Resistance: IEC 60068-2-6
Shock Resistance: IEC 60068-2-27
Certifications: CE, c-UL-us, RoHS
SIL Rating (IEC 61508): SIL 3
Performance Level (EN ISO 13849-1): PL e
Use in Commercial Environments: Permitted with appropriate enclosure

Compliance & Communication

Ethernet Ports: 2 x EtherNet/IP with DLR
USB Port: 1 x USB (Type B)
RS-232 Port: None
Supported Protocols:
– EtherNet/IP
– TCP/IP
– Modbus
Redundancy Support: Not supported
Programming Software: Studio 5000 Logix Designer
Diagnostics: Integrated status, fault, and I/O monitoring

Key Features & Benefits

✅ Integrated Digital & Analog I/O – Reduces system size and wiring by combining multiple I/O types in one controller

✅ Compact Design with Expansion – Supports up to 4 additional 1769 modules for system scalability

✅ Dual Ethernet with DLR – Enables robust network topologies and high-availability communication

✅ High Accuracy Analog I/O – Voltage/current selectable inputs and outputs with 16-bit resolution

✅ Allen Bradley Reliability – Trusted CompactLogix performance for industrial automation
