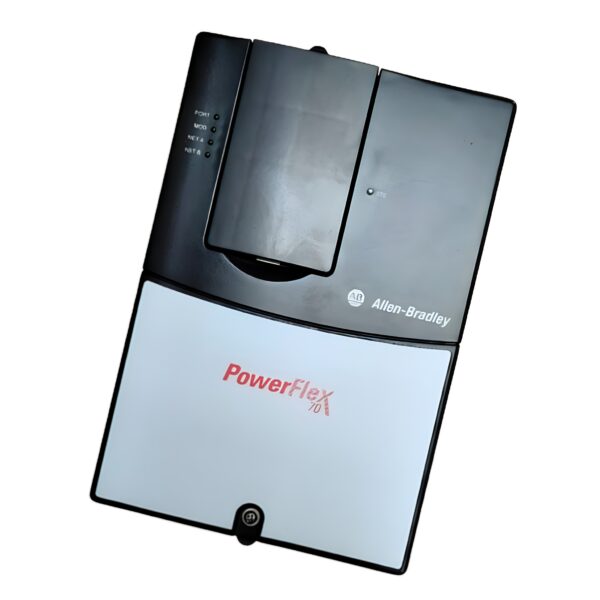

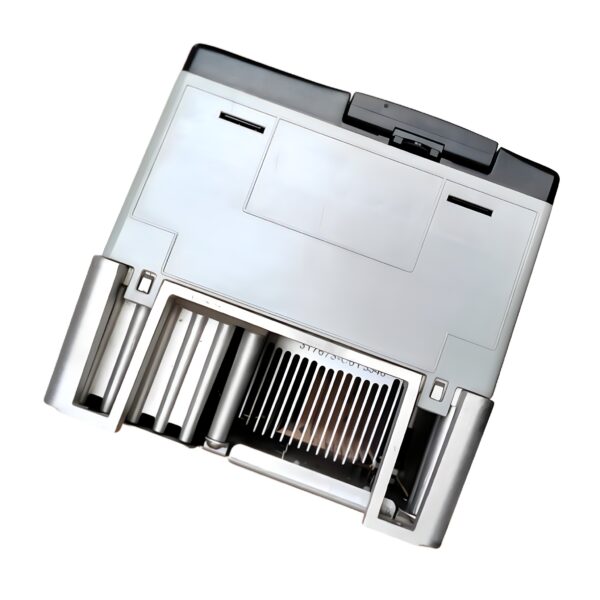

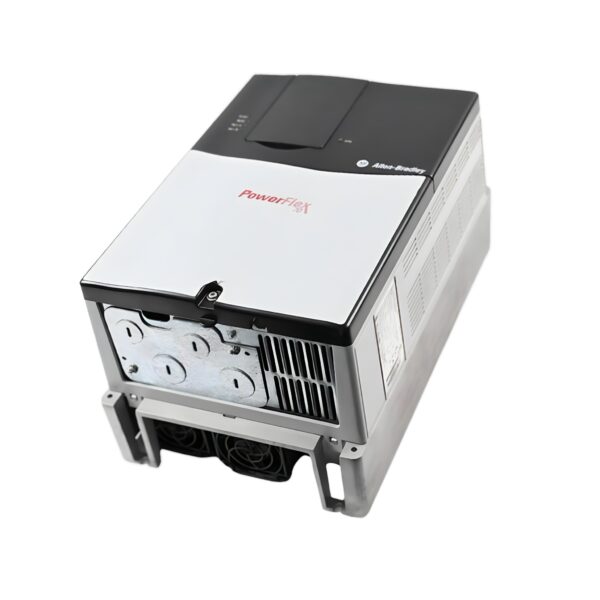

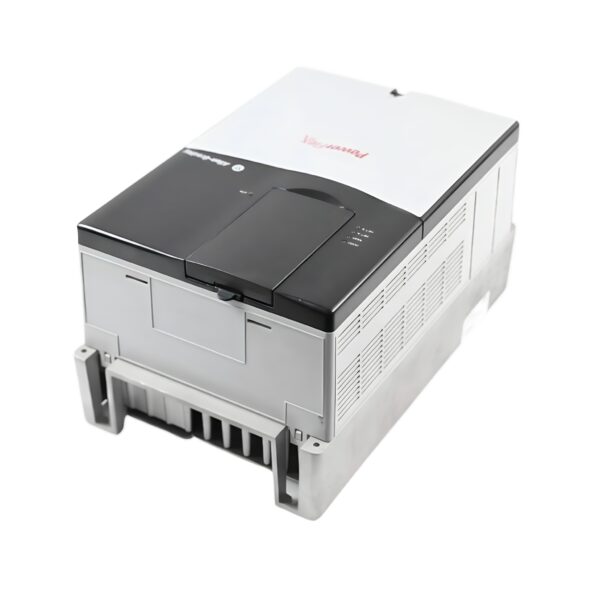

Allen Bradley 20AC022A0AYNANC0 Inverter Drive – 11kW, IP20

The AB 20AC022A0AYNANC0 is a high-performance AC variable frequency drive from the PowerFlex 70 series, engineered for applications requiring up to 11 kW (15 HP) in normal duty and 7.5 kW (10 HP) in heavy duty operation. Supporting 380–480 VAC three-phase input and output with a 22 A nominal output, this drive delivers enhanced control capabilities in demanding industrial systems.
It features panel mount IP20/NEMA Type 1 protection, integrated brake IGBT, second environment EMC filter, conformal coating, and a blank HIM plate (no human interface module). The unit ships without communication modules or feedback, offering a clean slate for custom system configurations.

Technical Specifications

Model: 20AC022A0AYNANC0
Series: PowerFlex 70
Drive Type: AC Frequency Inverter
Power Rating: 11 kW Normal Duty / 7.5 kW Heavy Duty
Frame Type: Panel Mount
Form Factor: IP20 / NEMA Type 1
Mounting: Panel-mounted
Application: High-performance motor control for conveyors, mixers, pumps, and machine automation

Electrical Specifications

• Input Voltage: 380–480 VAC
• Input Phase: Three-phase (3PH)
• Input Frequency: 50 Hz
• Output Voltage: 3-phase, up to input voltage
• Output Current (Nominal): 22 A
• Output Frequency Range: 0–500 Hz
• Brake IGBT: Installed
• Brake Resistor: Not included (drive-ready)
• Load Support: 11 kW (quadratic) / 7.5 kW (linear)

I/O & Communication Interfaces

• Digital Inputs: 6
• Digital Outputs: 0
• Analog Inputs: 2
• Analog Outputs: 1
• USB Port: Not included
• RS-485 Port: Not included
• Ethernet/IP: Supported
• Supported Protocols: EtherNet/IP, TCP/IP
• Unsupported Protocols: Modbus, DeviceNet, SERCOS, Data Highway

Mechanical Specifications

• Width: 219.9 mm
• Height: 350 mm
• Depth: 179.8 mm
• Weight: Approx. 6.5 kg
• Cooling Method: Forced air with internal fan
• HIM Module: Blank plate (no display interface included)

Environmental Specifications

• Operating Temperature: 0°C to 50°C (with derating if required)
• Storage Temperature: –40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)
• IP Rating: IP20 (NEMA Type 1)
• Conformal Coating: Yes (for corrosion resistance)
• EMC Compliance: Second environment filter per CE EMC directive (89/336/EEC)

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: IEC/EN 61800-3, IEC/EN 61800-5-1

Key Features & Benefits

✅ 11 kW / 15 HP Output. Supports heavy-load, high-performance applications.

✅ Integrated Brake IGBT. Ready for dynamic braking control.

✅ Enhanced Control. High-speed precision with full parameter flexibility.

✅ Conformal Coating. Protection in corrosive and harsh environments.

✅ EMC Filter Installed. Second environment filter ensures CE compliance.

✅ EtherNet/IP Support. Seamless integration into Rockwell and multi-vendor networks.
