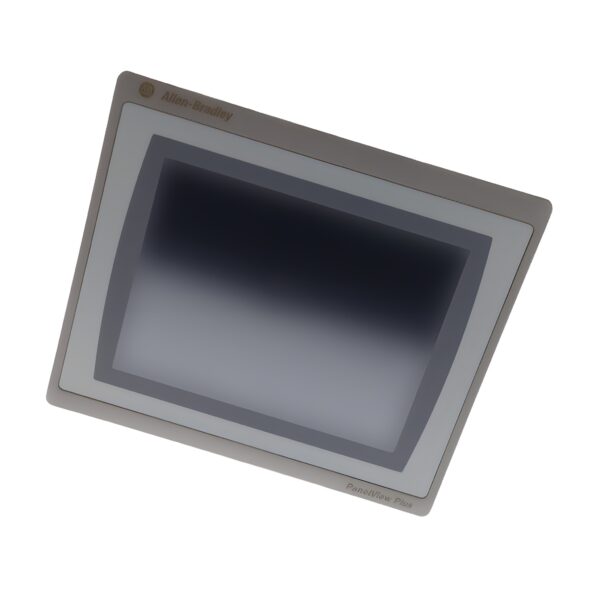

PanelView Plus 7 2711P-T10C21D8S Allen Bradley

The AB 2711P-T10C21D8S is a compact HMI terminal from the PanelView Plus 7 Standard series, engineered for cost-effective visualization and control in machine-level applications. Featuring a 10.4-inch TFT SVGA color touchscreen and a streamlined design, this terminal delivers reliable operator interface capabilities in a compact footprint.

With Windows CE operating system licensing, single Ethernet port, RS-232 communication, and USB connectivity, the 2711P-T10C21D8S is ideal for stand-alone automation systems requiring simplified HMI solutions on EtherNet/IP networks.

Technical Specifications

Model: 2711PT10C21D8S
Series: PanelView Plus 7 Standard
Type: HMI Terminal
Display Type: TFT Color Touchscreen
Display Size: 10.4 inch (SVGA 800 x 600 pixels)
Touch Interface: Analog resistive
Backlight Life: 50,000 hours typical
Operating System: Windows CE 6.0
Application: Machine HMI, standalone visualization, OEM equipment

Electrical Specifications

Supply Voltage: 24 V DC (18–30 V DC range)
Power Consumption: Approx. 50 W
Display Resolution: SVGA (800 x 600 pixels)
Display Colors: 262,144
USB Ports: 2 x USB Type A (for peripherals and file transfers)
Ethernet Ports: 1 x 10/100 Mbps (non-DLR)
Serial Ports: 1 x RS-232
Backlight: Replaceable
EMC Compliance: IEC 61000-6-2, IEC 61000-6-4

Mechanical Specifications

Front Width: 297 mm
Front Height: 252 mm
Depth (Built-In): 56.5 mm
Mounting Type: Panel Mount
Weight: Approx. 2.7 kg
IP Rating (Front): IP66 (NEMA Type 4X/12 indoor)
Cooling: Passive (fanless design)
Installation Orientation: Vertical only
Material: Polycarbonate bezel with aluminum substructure

Environmental Specifications

Operating Temperature: 0…55 °C
Storage Temperature: –25…70 °C
Relative Humidity: 5% to 95% non-condensing
Shock Resistance: 15 g, 11 ms per IEC 60068-2-27
Vibration Resistance: 1 g, 10–500 Hz per IEC 60068-2-6
Altitude Limit: Up to 2000 m without derating
Certifications: CE, UL, cULus, RoHS
Pollution Degree: 2

Compliance & Communication

Network Protocols: EtherNet/IP
DLR Support: No (Single Ethernet port only)
Serial Support: RS-232 enabled for legacy integration
USB Communication: Yes – supports USB mouse, keyboard, memory stick
Operating System: Windows CE 6.0
Software Compatibility: FactoryTalk View ME
Remote Access: Supported via VNC (with configuration)

Key Features & Benefits

✅ 10.4″ SVGA TFT Touchscreen – Compact, vibrant display ideal for panel-mounted OEM machines

✅ Windows CE Platform – Lightweight OS for embedded HMI applications with FactoryTalk View ME compatibility

✅ EtherNet/IP Communication – Standardized industrial connectivity for Allen Bradley systems

✅ Rugged IP66 Front Panel – Industrial-grade protection for demanding environments

✅ Expandable via USB Ports – Plug in memory devices or peripherals for updates and configuration
