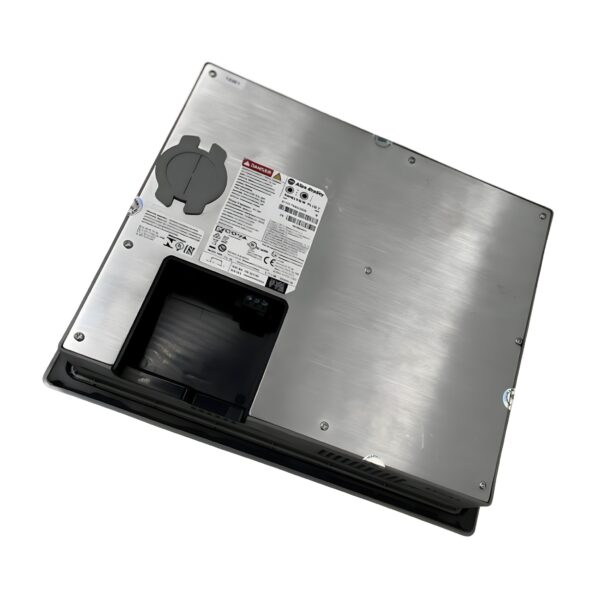

PanelView Plus 7 2711P-T10C22D8S Allen Bradley

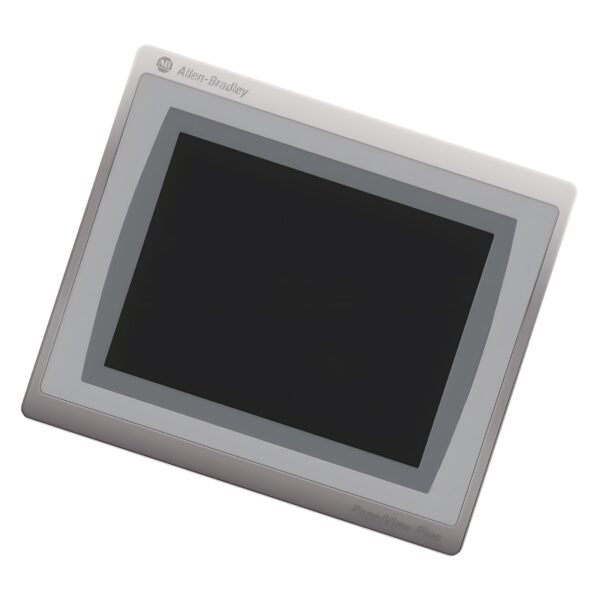

The AB 2711P-T10C22D8S is a 10.4-inch PanelView Plus 7 Standard HMI terminal designed for machine-level operator interface tasks in small to mid-size industrial control systems. Featuring a high-resolution TFT color touchscreen, dual Ethernet ports with Device Level Ring (DLR) support, and Windows CE-based runtime, this HMI offers flexible, connected visualization for real-time system monitoring and control.

Powered by 24V DC and built with an IP66-rated front bezel, the 2711P-T10C22D8S is suitable for harsh industrial environments and integrates directly with Allen Bradley Logix controllers using EtherNet/IP communications. It supports FactoryTalk View Machine Edition (ME) applications up to 25 screens and 200 alarm messages.

Technical Specifications

Model: 2711PT10C22D8S
Series: PanelView Plus 7 Standard
Type: Graphic Operator Terminal (HMI)
Display Size: 10.4 inch
Display Type: TFT Touchscreen
Display Colors: 262,144 (18-bit color)
Resolution: VGA (640 × 480 pixels)
Supply Voltage: 24V DC
Voltage Type: DC
Mounting Type: Panel / Wall mount
Application: Machine-level visualization, diagnostics, operator input, real-time data display

Electrical & Interface Specifications

Supply Voltage Range: 24V DC (nominal)
Communication Ports:
– 2 × Ethernet (DLR-enabled)
– 2 × USB
Supported Protocols: EtherNet/IP
Serial Ports: Not included
Software Environment: Windows CE 6.0 with FactoryTalk View ME Runtime
Software Licensing: Included (Standard Model)
Application Capacity: Up to 25 screens, 200 alarms
Power Consumption: Approx. 25W typical

Mechanical Specifications

Front Width: 297 mm
Front Height: 252 mm
Built-in Depth: 56.5 mm
Mounting Type: Panel mount
Enclosure Material: Industrial-grade plastic bezel
Touchscreen Type: Analog resistive
Weight: Approx. 2.1 kg
Numeric Keypad: No (touch-only interface)

Environmental Specifications

IP Rating (Front): IP66
Operating Temperature: 0…55 °C
Storage Temperature: -25…70 °C
Relative Humidity: 5% to 95% non-condensing
Shock / Vibration Resistance: Compliant with IEC/EN 60068
Certifications: CE, cULus, RoHS
Installation Location: Industrial control panels and operator workstations

Compliance & Communication

EtherNet/IP Support: Yes
DLR Support: Yes
USB Ports: 2 (for programming, data backup, peripherals)
Serial Communication: Not supported
DeviceNet / PROFIBUS / TCP/IP: Not supported
FactoryTalk View Integration: Fully supported
Studio 5000 / CCW Integration: Supported via network

Key Features & Benefits

✅ 10.4” Color Touchscreen – Clear, user-friendly display with 262K color resolution

✅ DLR Ethernet Connectivity – Redundant EtherNet/IP support for high-availability networks

✅ IP66 Front Protection – Withstands harsh environments and washdown conditions

✅ FactoryTalk View ME Ready – Ideal for standard machine control and diagnostics

✅ USB Interface – Allows for program transfer, data backup, or keyboard/mouse connection

✅ Compact Panel Mount Design – Fits into tight industrial panels with only 56.5 mm depth
