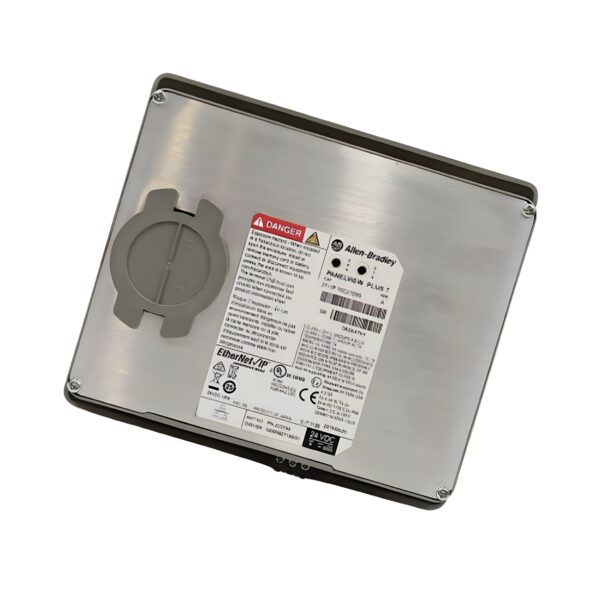

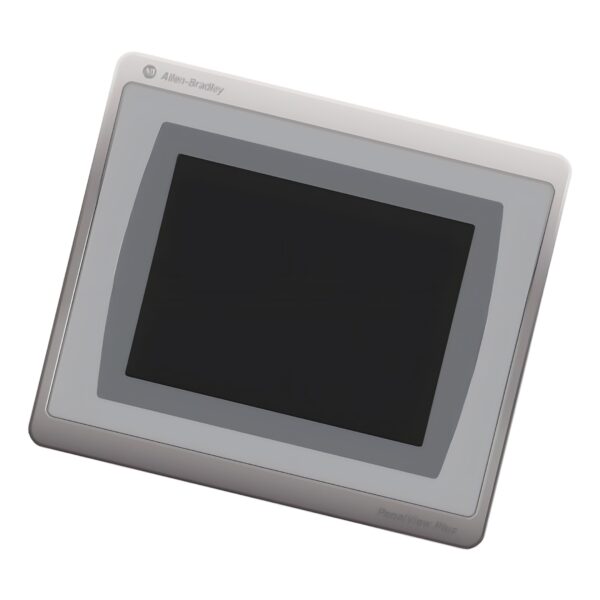

PanelView Plus 7 2711P-T6C21D8S Allen Bradley

The Allen Bradley 2711P-T6C21D8S is a compact and powerful HMI terminal from the PanelView Plus 7 Standard family. It features a 5.7-inch VGA TFT color display with touchscreen input, making it ideal for space-limited operator panels, standalone machines, and Ethernet-connected automation systems. With support for EtherNet/IP, a 24 VDC input, and preinstalled Windows CE OS licensing, this model provides flexibility and easy integration with your existing Rockwell Automation control architecture.

Technical Specifications

Model: 2711PT6C21D8S
Series: PanelView Plus 7 Standard
Display Type: TFT color touch display
Resolution: VGA (640 x 480)
Color Depth: 262,144 colors
Mounting: Panel / direct wall mounting
Power Supply: 24 VDC
Preinstalled OS: Windows CE Standard
Operating System License: Included

Electrical & Communication Interfaces

• Supply Voltage: 24 VDC
• Voltage Type: DC
• EtherNet/IP: ✔ Supported
• RS-232 / Serial Ports: ✖ Not included
• USB Ports: 2
• SW Interfaces: ✔ Included
• DeviceNet / Modbus / Other Fieldbus: ✖ Not supported

Mechanical Specifications

• Screen Diagonal: 5.7 inches
• Front Width: 176 mm
• Front Height: 152 mm
• Built-in Depth: 56.5 mm
• Mounting: Direct panel mounting
• IP Rating (Front): IP66
• Housing Material: Rugged industrial plastic
• Weight: Approx. 1.2 kg

Environmental & Compliance

• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to +70°C
• Humidity: 5% to 95% non-condensing
• Certifications: CE, c-UL-us, RoHS
• Shock & Vibration Resistance: IEC 60068-2-6 / -27

Features & Benefits

✅ Bright VGA Display. Crisp 640 x 480 resolution with vibrant color depth.

✅ Compact & Robust. Perfect for OEM or space-constrained control panels.

✅ Integrated Connectivity. Ethernet and USB ports simplify integration.

✅ Windows CE OS. Runs standard PanelView Plus 7 applications.

✅ Touchscreen Interface. Fast, intuitive user interaction with no keypad required.

📦 Order Today: AB 2711P-T6C21D8S HMI Panel

We offer unbeatable Allen-Bradley 2711P-T6C21D8S prices and fast UK and European delivery from our warehouse.

Order now to streamline your interface applications with a reliable, industrial-grade touchscreen HMI.

Click here to request availability or trade pricing.

Drive Outlet Megastore – your source for Allen-Bradley automation solutions.
