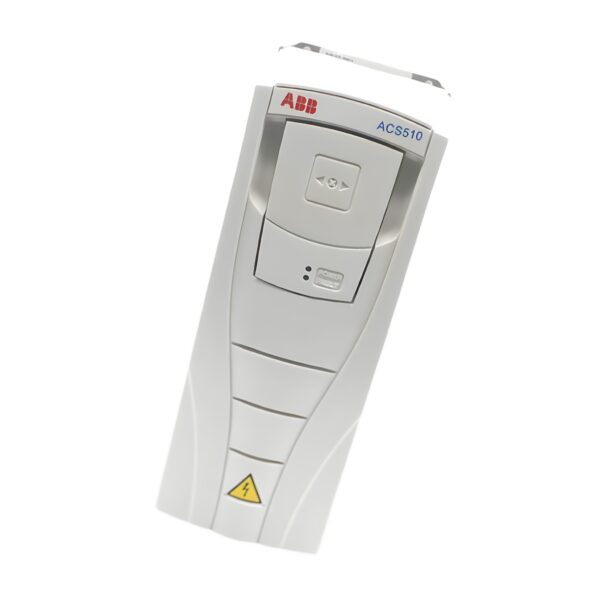

ABB ACS510-01-04A1-4 Inverter Drive – 1.5 kW, 3PH, IP21

The ABB ACS510-01-04A1-4 is a reliable and energy-efficient AC inverter drive engineered for 1.5 kW (2 HP) motor control in industrial automation, HVAC, and pumping systems. Operating from a three-phase 380–480 V supply, it delivers a consistent 4.1 A output, ideal for variable torque loads such as fans and pumps.

Designed for wall-mounted installations, this IP21-rated drive offers robust protection, integrated harmonic filtering, and flexible programming capabilities. Its compact form factor and built-in energy-saving features make it a versatile solution for both OEMs and end-users.

Technical Specifications

Model: ACS510-01-04A1-4
Series: ACS510
Drive Type: AC Frequency Inverter
Power Rating: 1.5 kW (2 HP)
Enclosure Type: IP21 / Wall-mounted
Mounting: Vertical wall mount
Application: HVAC systems, water treatment, conveyor systems, fans, pumps

Electrical Specifications

• Input Voltage: 380–480 V AC
• Input Phase: Three-phase (3PH)
• Input Frequency: 48–63 Hz
• Output Voltage: 0–Uin (0 to input voltage)
• Output Current (Nominal): 4.1 A
• Output Frequency Range: 0–500 Hz
• Overload Capacity: 110% for 60 seconds
• Braking: External resistor supported
• Integrated EMC Filter: Yes (standard)

I/O & Communication Interfaces

• Digital Inputs: Configurable (standard I/O set)
• Analog Inputs: 2
• Analog Outputs: 1
• Relay Outputs: 1
• Communication Ports: RS-232 / RS-485 (Modbus RTU)
• Optional Fieldbus Support: PROFIBUS, DeviceNet, CANopen, EtherNet/IP

Mechanical Specifications

• Dimensions (W x H x D): 130 × 345 × 120 mm
• Weight: 2.7 kg (6 lbs)
• Cooling Method: Air-cooled via internal fan
• Mounting Type: Wall-mounted (vertical orientation)

Environmental Specifications

• Operating Temperature: –10°C to +40°C (no derating)
• Storage Temperature: –40°C to +70°C
• Humidity: 5%–95% RH (non-condensing)
• IP Rating: IP21 (standard protective cover)

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• EMC Directive: 2004/108/EC
• Low Voltage Directive: 2006/95/EC
• ISO Standards: ISO 9001 (Quality), ISO 14001 (Environmental)

Key Features & Benefits

✅ Energy-Efficient Motor Control: Ideal for HVAC and fluid handling applications.

✅ Wall-Mountable & Compact: Simple installation even in tight electrical rooms.

✅ Reliable Performance: Consistent output under varying load conditions.

✅ Built-In EMC Filtering: Meets industrial electromagnetic compatibility requirements.

✅ Flexible Integration: Modbus RTU support with optional advanced fieldbus modules.

📦 Order the ABB ACS510-01-04A1-4 from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable ABB ACS510-01-04A1-4 prices, designed to meet your automation, HVAC, and general-purpose motor control needs with compact efficiency and trusted ABB performance.

Check stock now or request a quote.

Efficiency powered. Precision delivered. — Drive Outlet Megastore
