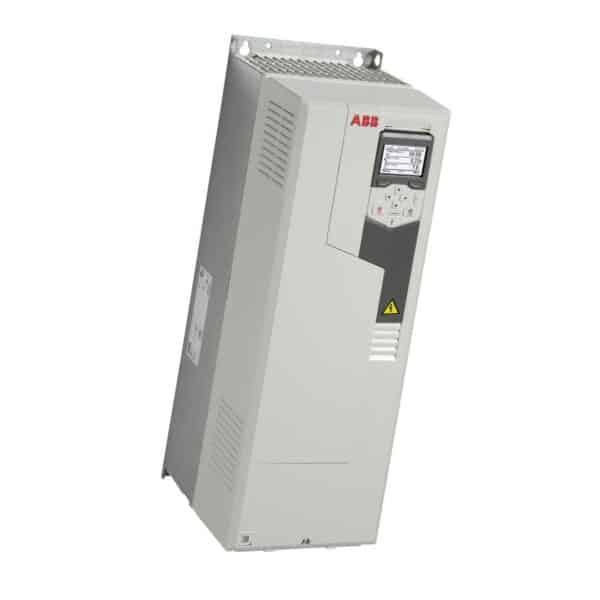

ABB ACS580-01-073A-4 Inverter Drive – 37kW, IP21, ACS580
The ABB ACS580-01-073A-4 inverter drive delivers high-performance motor control for demanding industrial applications up to 37 kW. Offering flexible control modes (VxF or sensorless vector), dual-duty ratings, and a robust IP21 design, it’s built for reliable operation in HVAC, pumping, and material handling systems.
Complete with ABB’s Assistant Control Panel, integrated RS-485 Modbus RTU, and dual-channel SIL3 Safe Torque Off (STO), this R5 frame drive is a direct upgrade from the legacy ACS550-01-073A-4.
Technical Specifications
Model: ACS580-01-073A-4
Series: ACS580
Type: Variable Frequency Drive (VFD)
Power Output: 30 kW (40 HP) at High Overload / 37 kW (50 HP) Fan & Pump Duty
Enclosure: IP21
Mounting: Cubicle Mount
Application: Pumps, fans, conveyors, HVAC, compressors, and process automation
Electrical Specifications
- Input Voltage: 380–480 V AC (±10%)
- Phase: 3-phase
- Frequency Range: 50–60 Hz (±5%)
- Output Frequency: 0–500 Hz
- Output Current (HO / ND): 61 A (High Overload) / 68.4 A (Normal Duty)
- Overload Capacity: 150% for 60 s (HO) / 110% for 60 s (ND)
- Control Type: VxF and Sensorless Vector
- Brake Chopper: Not included (external braking unit optional)
- Heat Dissipation: Approx. 1024 W
I/O and Communication
- Digital Inputs: 6 programmable
- Analog Inputs: 2
- Analog Outputs: 2
- Relay Outputs: 3 contact sets
- Keypad: Assistant Control Panel (included)
- RS-485 / Modbus RTU: Built-in
- Safe Torque Off (STO): Dual-channel SIL3 certified
- Control Power Input: 24 V AC/DC logic backup
Mechanical and Environmental
- Mounting Type: Cubicle mount
- Frame Size: R5 (with integrated gland box)
- Weight: Approx. 23 kg
- Dimensions (H × W × D): Approx. 596 × 203 × 295 mm (732 mm height incl. glandbox)
- Cooling: Internal fan (clearance: 155 mm top, 300 mm bottom incl. glandbox, 150 mm sides)
- Operating Temp: Up to +40 °C ambient
- Mounting Holes: 6 × M6 bolts (160 mm × 581 mm and 611.5 mm centres)
Compliance and Certifications
- CE Certified
- UL / cUL Listed
- EMC Compliance: IEC EN61800-3:2004 + A1:2012 (C2 Industrial)
- RoHS Compliant
- Manufacturing Standards: ISO 9001, ISO 14001
Replacement Information
Replaces legacy ACS550-01-073A-4 drive
New part numbers: ACS580-01-073A-4 or 3AUA0000144812
Key Benefits of the ABB ACS580-01-073A-4
✅ Optimised for 37 kW Loads: Dual-duty performance for flexible applications.
✅ Enhanced Safety: Dual STO inputs certified to SIL3.
✅ Easy Setup & Monitoring: Assistant Control Panel and RS-485 included.
✅ High Power Density: Compact R5 frame with integrated glandbox.
✅ Ideal Retrofit Option: Full replacement for ACS550 models with improved features.
📦 In Stock Now at Drive Outlet Megastore
At Drive Outlet Megastore, we offer unbeatable prices on the ABB ACS580-01-073A-4 inverter drive.
Engineered for industrial precision, seamless integration, and dependable control, this ABB VFD ensures maximum uptime in every operation.
Request a quote or contact us today
Fast UK Delivery – Trusted ABB Drives – Only at Drive Outlet Megastore.
