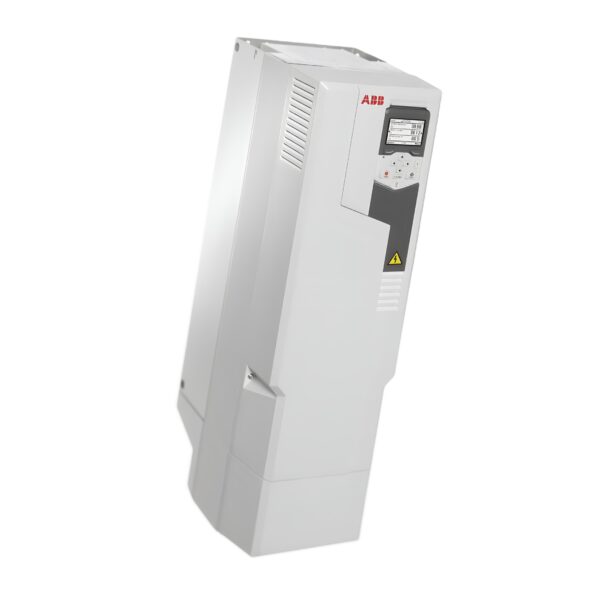

ABB ACS580-01-088A-4 Inverter Drive – 45kW, IP21, ACS580
The ABB ACS580-01-088A-4 inverter drive delivers robust, high-capacity motor control for industrial applications requiring up to 45 kW. With dual-duty capability, advanced VxF and sensorless vector control, and integrated SIL3-rated Safe Torque Off, this compact drive is a reliable solution for HVAC systems, conveyors, compressors, and process automation.
Housed in a durable R5 frame with IP21 protection and complete with ABB’s intuitive Assistant Control Panel, it’s designed for smooth integration and high-performance operation in demanding environments.
Technical Specifications
Model: ACS580-01-088A-4
Series: ACS580
Type: Variable Frequency Drive (VFD)
Power Output: 37 kW (50 HP) at High Overload / 45 kW (60 HP) Fan & Pump Duty
Enclosure: IP21
Mounting: Cubicle Mount
Application: HVAC, pumping, conveyor systems, mixers, material handling
Electrical Specifications
- Input Voltage: 380–480 V AC (±10%)
- Phase: 3-phase
- Frequency Range: 50–60 Hz (±5%)
- Output Frequency: 0–500 Hz
- Output Current (HO / ND): 72 A (High Overload) / 82.7 A (Normal Duty)
- Overload Capacity: 150% for 60 s (HO) / 110% for 60 s (ND)
- Control Type: VxF and Sensorless Vector
- Brake Chopper: Not included (external braking unit optional)
- Heat Dissipation: Approx. 1240 W
I/O and Communication
- Digital Inputs: 6 programmable
- Analog Inputs: 2
- Analog Outputs: 2
- Relay Outputs: 3 contact sets
- Keypad: Assistant Control Panel (included)
- RS-485 / Modbus RTU: Built-in
- Safe Torque Off (STO): Dual-channel SIL3 certified
- Control Power Input: 24 V AC/DC for auxiliary logic
Mechanical and Environmental
- Mounting Type: Cubicle mount
- Frame Size: R5 (with integrated gland box)
- Weight: Approx. 23 kg
- Dimensions (H × W × D): Approx. 596 × 203 × 295 mm (732 mm height incl. glandbox)
- Cooling: Internal fan (clearance: 155 mm top, 300 mm bottom incl. glandbox, 150 mm sides)
- Operating Temp: Up to +40 °C ambient
- Mounting Holes: 6 × M6 bolts (160 mm × 581 mm and 611.5 mm centres)
Compliance and Certifications
- CE Certified
- UL / cUL Listed
- EMC Compliance: IEC EN61800-3:2004 + A1:2012 (C2 Industrial)
- RoHS Compliant
- Manufacturing Standards: ISO 9001, ISO 14001
Replacement Information
Replaces legacy ACS550-01-087A-4 drive
New part numbers: ACS580-01-088A-4 or 3AUA0000080502
Key Benefits of the ABB ACS580-01-088A-4
✅ Full 45 kW Performance: Dual-duty rated for both standard and heavy load conditions.
✅ STO Safety Built-In: Dual-channel SIL3 Safe Torque Off for enhanced protection.
✅ Flexible I/O and Control: RS-485, analog/digital I/O, and Modbus RTU as standard.
✅ Efficient Design: Compact R5 frame with integrated glandbox for easy cabinet installation.
✅ Ideal Retrofit Option: Seamlessly replaces ACS550-01-087A-4 with improved functionality.
📦 In Stock Now at Drive Outlet Megastore
At Drive Outlet Megastore, we offer unbeatable prices on the ABB ACS580-01-088A-4 inverter drive.
Powerful, intelligent, and easy to integrate—this ABB VFD is your go-to solution for precision control in large-scale industrial systems.
Request a quote or contact us today
Fast UK Delivery – Trusted ABB Drives – Only at Drive Outlet Megastore.
