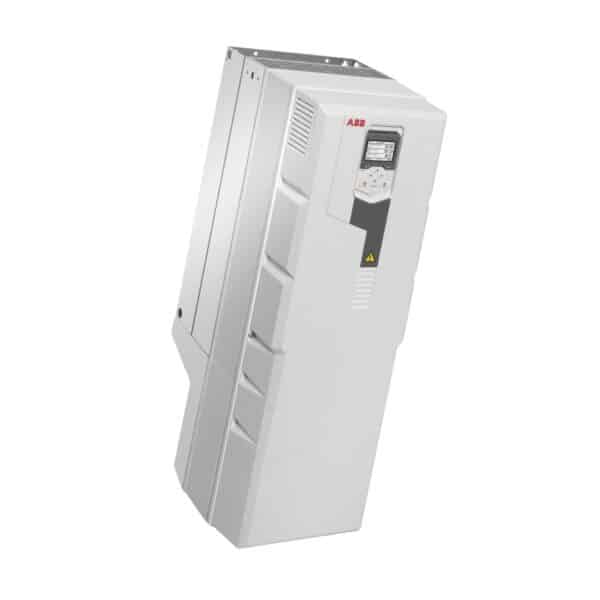

ABB ACS580-01-246A-4 Inverter Drive – 132kW, IP21, ACS580

The ABB ACS580-01-246A-4 inverter drive is designed to deliver maximum performance and energy efficiency in demanding industrial applications. With robust 234A output for fan and pump duty or 206A for high overload loads, this 132 kW AC drive excels in HVAC systems, material handling, water treatment, and process control.

Its intelligent safety features, broad voltage tolerance, and integrated Assistant Control Panel make setup and commissioning easy while ensuring reliable and flexible operation across a wide range of industrial environments.

Technical Specifications

Model: ACS580-01-246A-4
Series: ACS580
Type: Variable Frequency Drive
Power Output: 110 kW (HO) / 132 kW (ND)
Enclosure Rating: IP21
Mounting: Cubicle / Panel
Application: Fans, compressors, pumps, conveyors, extruders, and general automation

Electrical Specifications

• Input Voltage: 380–480 V AC (±10%)
• Phase: 3-phase
• Frequency Range: 50–60 Hz (±5%)
• Output Frequency: 0–500 Hz
• Output Current: 206 A (HO) / 234 A (ND)
• Overload Capacity: 150% for 60 s (High Overload) / 110% for 60 s (Fan/Pump)
• Control Type: VxF and Sensorless Vector
• Brake Chopper: Not included (external braking unit optional)
• Heat Loss: Approx. 3336 W

I/O and Interface Capabilities

• Digital Inputs: 6
• Analog Inputs: 2
• Analog Outputs: 2
• Relay Outputs: 3
• Keypad Interface: Assistant Control Panel included
• Integrated Communication: RS-485 / Modbus RTU
• Safety Functions: Dual-channel SIL3 Safe Torque Off (STO)
• Aux Power Input: 24 V AC/DC for independent control circuit power

Mechanical and Environmental

• Frame Size: R8 with integrated glandbox
• Weight: 69 kg
• Dimensions (W × D × H): 300 mm × 393 mm × 680 mm (965 mm with glandbox)
• Mounting Type: Cubicle Mount
• Ventilation Clearance: 155 mm (top), 300 mm (bottom), 150 mm (sides)
• Mounting Holes: 6 × M8 bolts (263 mm × 658 mm and 701 mm centres)
• Ambient Temp Rating: 40 °C continuous operation

Compliance and Standards

• CE Certified
• UL / cUL Listed
• EMC Compliance: IEC EN61800-3:2004 + A1:2012 (Category C2)
• RoHS Compliant
• Manufactured under ISO 9001 / ISO 14001 standards

Manufacturer and Replacement Details

Part Number: ACS580-01-246A-4 or 3AUA0000080507
Replaces: ACS550-01-246A-4
Country of Origin: Finland
HS Code: 85044085 – Static Converters

Key Features

✅ Powerful Motor Control: Delivers 234 A at 132 kW for high-demand applications.

✅ Smart Interface: Assistant Control Panel with guided commissioning.

✅ Reliable Performance: Full compliance with EMC and safety regulations.

✅ Energy Efficient: Optimised heat loss and load management.

✅ Flexible Integration: Full Modbus RTU support with expansion for fieldbus protocols.

📦 In Stock Now at Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable ABB ACS580-01-246A-4 pricing, expert guidance, and fast delivery. Whether you’re upgrading a 132 kW system or designing a new one, trust us for the best support and availability.

Click Here to Contact Our ABB Drive Specialists – Get Your Quote Today!
