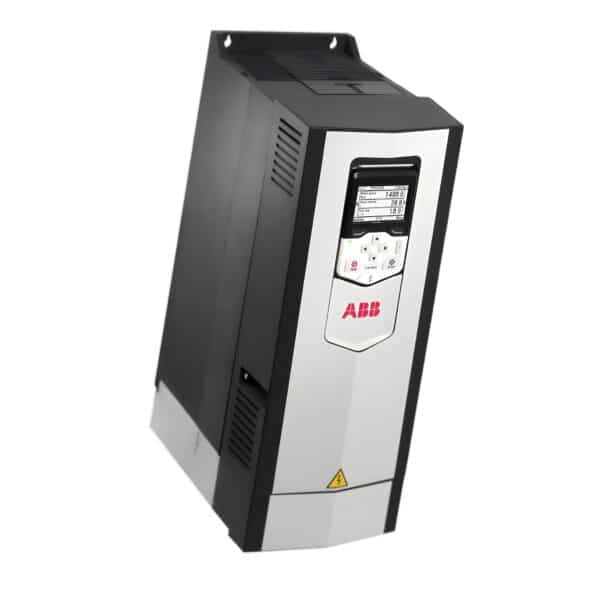

ABB ACS880-01-014A-5 Inverter Drive – 7.5kW (10HP), IP21, ACS880
The ABB ACS880-01-014A-5 inverter drive is built for precise motor control in demanding industrial applications. Offering a 7.5 kW (10HP) light-overload rating and protected with an IP21/NEMA Type 1 enclosure, this compact unit delivers ABB’s signature Direct Torque Control (DTC) for fast, accurate torque response and minimal energy waste. With up to 98% efficiency, it helps reduce operational costs while maximizing performance.
Designed for wall-mounted installation and full network integration, this drive supports major industrial protocols like PROFINET, EtherNet/IP, and MODBUS, making it ideal for pumps, compressors, fans, and conveyors in smart automation environments.
Technical Specifications
Model: ACS880-01-014A-5
Series: ACS880
Type: AC Inverter Drive
Power Output: 5.5 kW (HD) / 7.5 kW (LO)
Enclosure Rating: IP21 / NEMA Type 1
Mounting: Wall-mounted
Application: Pumps, fans, mixers, conveyors, compressors
Electrical Specifications
- Input Voltage: 380–500 V AC (±10%)
- Phase: 3-phase
- Frequency Range: 47.5–63 Hz
- Output Voltage: Adjustable up to supply voltage
- Output Current: 11 A (HD), 14 A (LO)
- Efficiency Class: IE2 / up to 98% efficiency
- Drive Type: Wall-mounted, open cabinet
- UL Output Ratings: 7.5 HP (HD), 10 HP (LO)
Mechanical and Environmental
- Frame Size: R2
- Weight: 8.4 kg
- Dimensions (W × D × H): 155 mm × 249 mm × 409 mm
- Enclosure Type: IP21 / NEMA Type 1
- Humidity Range: 5–95% RH
- Cooling: Forced air
- Ambient Temperature Rating: Up to 40 °C
- Altitude Tolerance: Up to 4000 m without derating
- Sound Level: 59 dB(A)
UL Ratings (North American Standards)
| Use Type | Power (HP) | Output Current (A) |
|---|---|---|
| Heavy-Duty Use | 7.5 HP | 11.0 A |
| Light-Overload Use | 10 HP | 14.0 A |
Communication & Interfaces
- Protocols Supported: PROFINET, EtherNet/IP, DeviceNet, PROFIBUS, MODBUS, CAN, PROFIsafe
- Hardware Interfaces: 1 × RS-485, 1 × USB
- Analog Inputs/Outputs: 2 / 2
- Digital Inputs/Outputs: 6 / 2
Compliance and Certifications
- CE Certified
- UL Listed (US and Canada)
- RoHS Compliant
- Customs Tariff Code: 85044085
- Country of Origin: Finland
Key Features
✅ Up To 98% Efficiency: Lowers energy usage while boosting overall drive performance.
✅ Compact And Lightweight Design: R2 frame saves panel space and simplifies installation.
✅ IP21 / NEMA 1 Rated: Designed for clean, indoor cabinet installations.
✅ DTC Technology For Precise Motor Control: Real-time response with fast torque adjustments.
✅ Universal Fieldbus Connectivity: Built-in support for major industrial communication networks.
