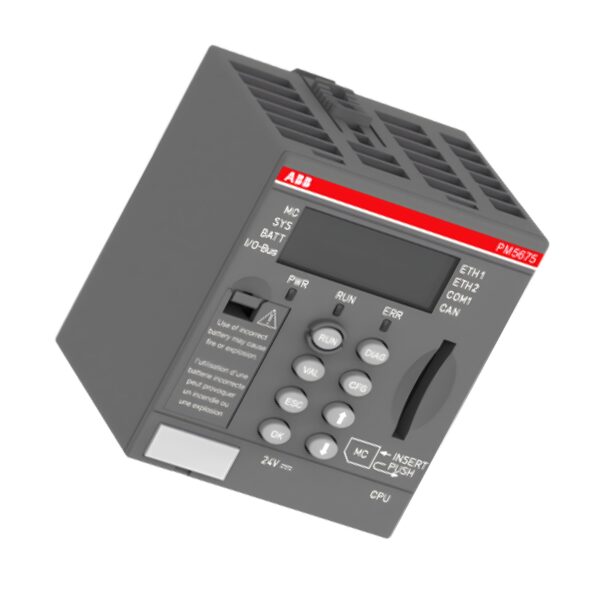

ABB PM5675-2ETH AC500 Processor Module

The ABB PM5675-2ETH is a powerful AC500 series processor module equipped with 160MB memory, dual Ethernet ports, RS232/RS485, CAN interface, integrated 8GB flashdisk, and an LCD display. Designed for complex automation systems requiring large memory capacity and enhanced data logging capabilities.

Technical Specifications

Manufacturer: ABB
Product Name: PM5675-2ETH ABB
Product ID: 3ABD00038897
Platform: AC500
Function: 160MB RAM, 8GB Flash, 2x Ethernet, RS232/485, CAN, Display
Display: Integrated LCD
Degree of Protection: IP20
Controller Processing Time: 0.000002 ms

Electrical Characteristics

Interfaces:
• 2x Industrial Ethernet
• RS232/RS485
• CAN
Rated Voltage (Ur): 24 V DC
Supply Voltage Range: 20.4 … 28.8 V DC
Memory Size: 820500 kB RAM + 8 GB Flashdisk
Memory Type (User Data): RAM

Mechanical Dimensions

Net Weight: 0.135 kg
Gross Weight: 0.159 kg
Product Dimensions (L x W x H): 62 mm x 67.5 mm x 76 mm
Package Dimensions (L x W x H): 84 mm x 71 mm x 72 mm

Environmental & Compliance

Ambient Air Temperature (Operation): 0 … +60 °C
Ambient Air Temperature (Storage): -40 … +70 °C
UNSPSC Code: 32151705
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
RoHS Compliance: EU Directive 2011/65/EU + Amendment 2015/863
SCIP Code: b8733554-b2d6-4466-b85d-fd892a6c0e87
REACH Status: Contains SVHC > 0.1%

Ordering Information

Replacement Product ID: 1SAP151500R0378
Invoice Description: Processor module. Memory 160MB. Interfaces: 2x Ethernet, RS232/485, CAN. 8GB Flashdisk. Display (PM5675-2ETH)
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit: Piece

Key Features

✅ 160MB RAM + 8GB Flashdisk: Ideal for logging-intensive and memory-heavy applications.

✅ Dual Ethernet Ports: High-speed communication and redundancy support.

✅ Versatile Connectivity: RS232/485 and CAN interfaces included.

✅ Ultra-Fast Processing: Only 2µs controller cycle time.

✅ Compact IP20 Housing: Space-saving and easy integration.

✅ LCD Display: Built-in status monitoring and diagnostics.

📦 Buy ABB Processor Modules – 8GB Flash, Dual Ethernet, RS232/485, CAN

At Drive Outlet Megastore we offer unbeatable ABB PM5675-2ETH prices.

Engineered for advanced industrial control systems where memory size, durability, and communication performance are critical.

Contact our team today for stock, compatibility help, or to request a formal quotation.
