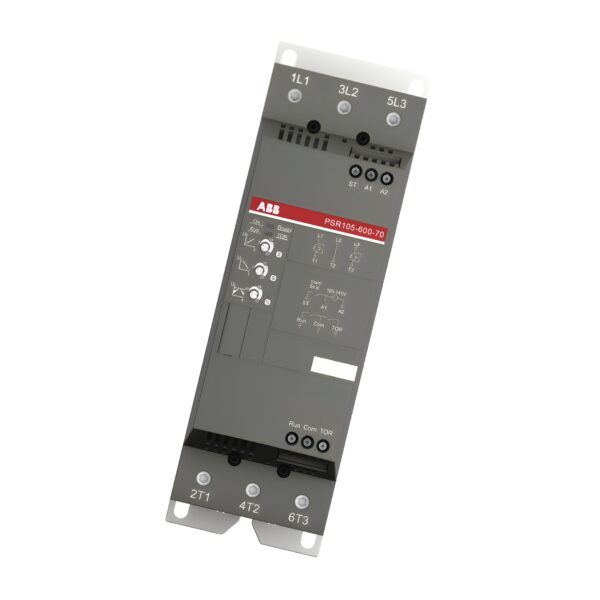

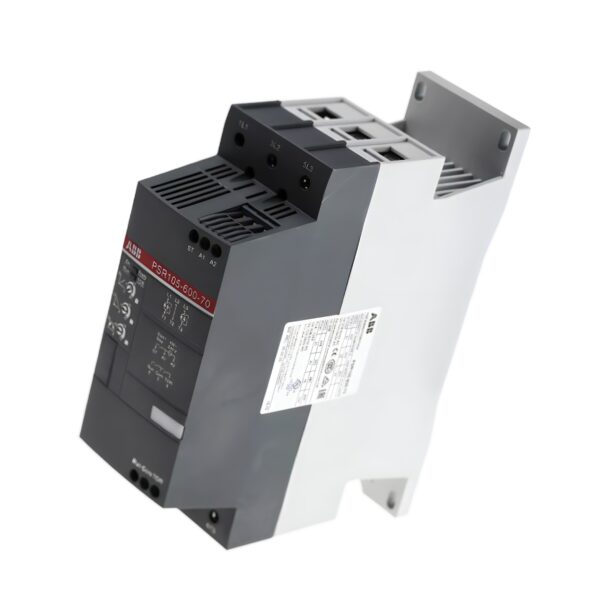

ABB PSR105-600-70 Softstarter (1SFA896115R7000)

The ABB PSR105-600-70 softstarter is a compact and efficient motor starting solution designed for industrial three-phase motors up to 105 A. With a voltage range of 208–600 V AC and rated control voltage of 100–240 V AC, it ensures smooth start and stop via two-phase voltage ramping. The integrated bypass contactor enhances installation ease and reduces heat dissipation.

Ideal for applications such as compressors, pumps, conveyors, and fans, the PSR105-600-70 provides high starting reliability in space-constrained panels.

Technical Specifications

Model: PSR105-600-70 ABB
Rated Operational Current (Ie): 105 A
Rated Operational Voltage: 208 … 600 V AC
Control Supply Voltage (Us): 100 … 240 V AC
Control Circuit Voltage (Uc): 24 V DC
Rated Frequency: 50/60 Hz
Operational Power:
– 30 kW @ 230 V
– 55 kW @ 400 V
– 55 kW @ 500 V
Ramp Time: 1–10 s (Start), 0–20 s (Stop)
Initial Voltage During Start: 40–70%
Step Down Voltage: 100–60%
Starting Capacity: 4 × Ie for 6 s
Max Starts Per Hour: 10 (50% ON/OFF cycle)

Functionality & Indicators

Soft Start / Stop: Voltage ramp-based
Built-in Bypass Contactor: Yes
RUN Signal Relay: Yes (NO)
Bypass Signal Relay: Yes (NO)
LED Status Indicators:
– Start Ramp Completed (Green)
– Ready to Start (Green)
– Running (Green)
– Ramping (Green)
Communication Option: FieldBusPlug (external)
Electronic Overload Protection: No
Recommended MMS: MS495 (80–100 A)
Inside Delta Start: Not Supported
Current Limit Function: No

Electrical & Installation

Terminal Type: Bars
Main Circuit Connection:
– Rigid 1 × 10 … 95 mm²
– Rigid 2 × 6 … 35 mm²
Control Circuit:
– 1 × 0.75 … 2.5 mm²
– 2 × 0.75 … 2.5 mm²
Supply Circuit: 1 × 0.75 … 2.5 mm²
Tightening Torque:
– Main Circuit: 8 N·m
– Control Circuit: 0.6 N·m
– Supply Circuit: 0.6 N·m
Degree of Protection: IP10 (IEC 60529)

Mechanical & Environmental

Dimensions (W × H × D): 180 × 220 × 70 mm
Weight: 2.1 kg
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +70°C
Installation Category: III

Certifications & Compliance

CE Marked: Yes
RoHS: Compliant (2011/65/EU & 2015/863)
REACH: Certified
UL/CSA Horsepower Ratings:
– 30 HP @ 208 V
– 40 HP @ 240 V
– 75 HP @ 480 V
– 100 HP @ 600 V
Maximum UL Voltage: 600 V
WEEE Category: 5 – Small Equipment
Standards: IEC 60947-4-2, EN 60947-1

Key Features & Benefits

✅ 105 A Motor Softstarter: Powers motors up to 55 kW.

✅ Built-in Bypass: Reduces panel heat and energy waste.

✅ Compact Housing: Ideal for confined control cabinets.

✅ Plug-and-Play Configuration: Front-mounted potentiometers.

✅ Optional Fieldbus Integration: Expandable via external adapter.

✅ Status LEDs: Real-time visual feedback for ramp and run states.

📦 Buy ABB PSR105-600-70 Softstarter at Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable ABB PSR105-600-70 prices.

Built for efficiency, safety, and space savings, the PSR105-600-70 is the perfect choice for motor protection in demanding environments like HVAC, pumping, and conveyor systems.

Click here to check stock or request a quote now.

Fast UK dispatch and the lowest prices guaranteed – only at Drive Outlet Megastore.
