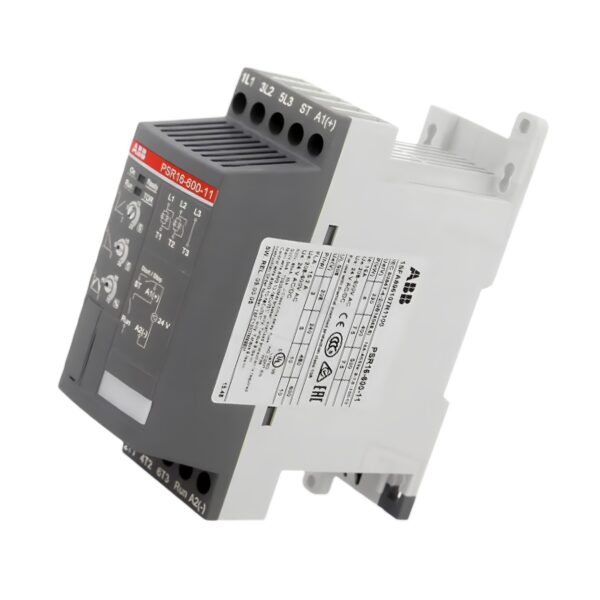

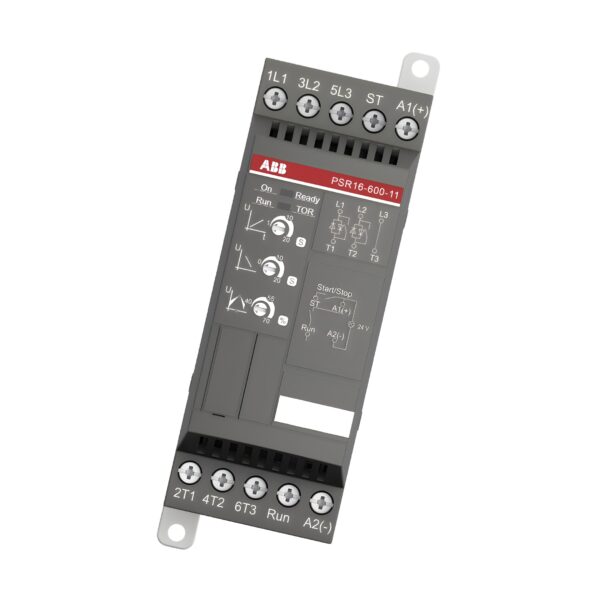

ABB PSR16-600-11 Softstarter (1SFA896107R1100)

The ABB PSR16-600-11 is a compact, cost-effective softstarter built for controlling three-phase motors with ease. Rated for up to 16 A and 208–600 V AC, it supports reliable soft start/stop operations using a two-phase voltage ramp. Designed for small pumps, fans, conveyors, and compressors, this model is ideal for space-constrained control panels and supports up to 100 starts per hour.

With a built-in bypass contactor, user-friendly potentiometers, LED status indicators, and compatibility with ABB manual motor starters and Fieldbus plug adapters, the PSR16-600-11 offers robust performance in a minimal footprint.

Technical Specifications

Model: PSR16-600-11 ABB
Rated Operational Current (Ie): 16 A
Rated Operational Voltage: 208 … 600 V AC
Control Supply Voltage (Us): 24 V AC/DC
Control Circuit Voltage (Uc): 24 V DC
Rated Frequency: 50/60 Hz
Operational Power:
– 4.0 kW @ 230 V
– 7.5 kW @ 400 V
– 7.5 kW @ 500 V
Ramp Time: 1–10 s (Start), 0–20 s (Stop)
Initial Voltage During Start: 40–70%
Step Down Voltage: 100–60%
Starting Capacity: 4 × Ie for 6 s
Max Starts Per Hour: 10 (50% ON/OFF cycle)

Functionality & Indicators

Soft Start / Stop: Voltage ramp control
Built-in Bypass Contactor: Yes
RUN Signal Relay: Yes (NO)
Bypass Signal Relay: No
LED Status Indicators:
– Start Ramp Completed (Green)
– Ready to Start (Green)
– Running (Green)
– Ramping (Green)
Communication Option: FieldBusPlug (external)
Electronic Overload Protection: No
Recommended MMS: MS132 (10–16 A)
Inside Delta Start: Not Supported
Current Limit Function: No

Electrical & Installation

Terminal Type: Screw Terminals
Main Circuit Connection:
– Rigid 1/2 × 0.75 … 2.5 mm²
Control Circuit:
– 1 × 0.75 … 2.5 mm²
– 2 × 0.75 … 2.5 mm²
Supply Circuit: Rigid 1/2 × 0.75 … 2.5 mm²
Tightening Torque:
– Main Circuit: 1 N·m
– Control Circuit: 1 N·m
– Supply Circuit: 1 N·m
Degree of Protection: IP20 (IEC 60529)

Mechanical & Environmental

Dimensions (W × H × D): 114 × 140 × 45 mm
Weight: 0.4 kg
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +70°C
Installation Category: III

Certifications & Compliance

CE Marked: Yes
RoHS: Compliant (2011/65/EU & 2015/863)
REACH: Certified
UL/CSA Horsepower Ratings:
– 3 HP @ 208 V
– 5 HP @ 240 V
– 10 HP @ 480 V
– 10 HP @ 600 V
Maximum UL Voltage: 600 V
WEEE Category: 5 – Small Equipment
Standards: IEC 60947-4-2, EN 60947-1

Key Features & Benefits

✅ Compact DIN-rail Mounting: Saves valuable cabinet space.

✅ Integrated Bypass: Reduces heat and wiring effort.

✅ LED Status Display: Clear operational feedback.

✅ Simple Configuration: Potentiometer-controlled ramp setup.

✅ Fieldbus Ready: Supports optional communication interface.

✅ Perfect for Light-Duty Starts: Up to 100 operations/hour.

📦 Buy ABB PSR16-600-11 Softstarter at Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable ABB PSR16-600-11 prices.

Ideal for small motor control applications, the PSR16-600-11 delivers reliable starts, panel space savings, and energy efficiency in a single compact unit.
