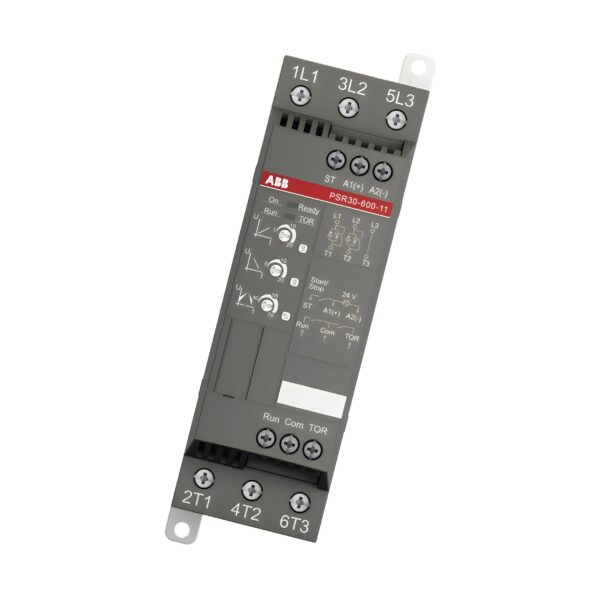

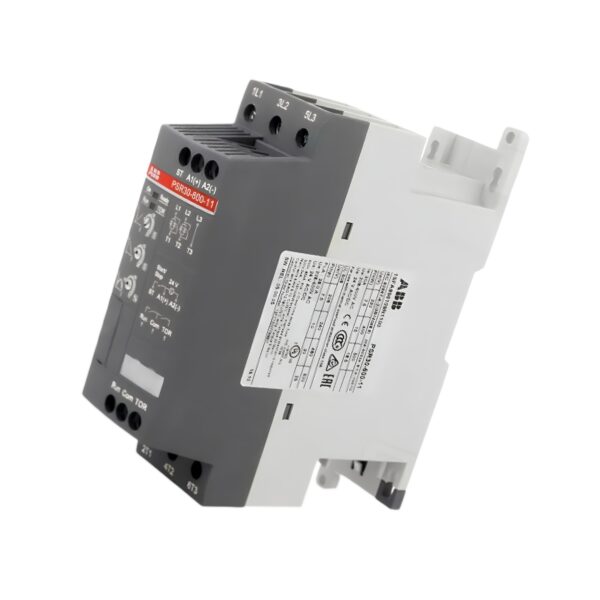

ABB PSR30-600-11 Softstarter (1SFA896109R1100)

The ABB PSR30-600-11 is a compact and efficient softstarter designed for reliable motor control up to 30 A. With a wide voltage range of 208–600 V AC and a control voltage of 24 V AC/DC, this unit offers smooth motor startup and stop using a two-phase voltage ramp method.

Engineered with a built-in bypass contactor, relay outputs for RUN and TOR signals, and intuitive front-panel potentiometers, the PSR30-600-11 is suitable for compressors, conveyors, pumps, and fans. Its compact design makes it perfect for panel optimization while enabling up to 100 starts per hour and optional Fieldbus communication for system integration.

Technical Specifications

Model: PSR30-600-11 ABB
Rated Operational Current (Ie): 30 A
Rated Operational Voltage: 208 … 600 V AC
Control Supply Voltage (Us): 24 V AC/DC
Control Circuit Voltage (Uc): 24 V DC
Rated Frequency: 50/60 Hz
Operational Power:
– 7.5 kW @ 230 V
– 15 kW @ 400 V
– 18.5 kW @ 500 V
Ramp Time: 1–10 s (Start), 0–20 s (Stop)
Initial Voltage During Start: 40–70%
Step Down Voltage: 100–60%
Starting Capacity: 4 × Ie for 6 s
Max Starts Per Hour: 10 (at 3.5 × Ie for 7 s)

Functionality & Indicators

Soft Start / Stop: Voltage ramp control
Built-in Bypass Contactor: Yes
RUN Signal Relay: Yes (NO)
Bypass Signal Relay: Yes
Fault/Overload Relays: Not Available
LED Status Indicators:
– Start Ramp Completed (Green)
– Ready to Start (Green)
– Running (Green)
– Ramping (Green)
Communication Option: FieldBusPlug (optional external adapter)
Electronic Overload Protection: No
Recommended MMS: MS132 (25–32 A)
Inside Delta Start: Not Supported
Current Limit Function: No

Electrical & Installation

Terminal Type: Screw Terminals
Main Circuit Connection:
– Rigid 1/2 × 0.75 … 2.5 mm²
Control Circuit:
– 1 × 0.75 … 2.5 mm²
– 2 × 0.75 … 2.5 mm²
Supply Circuit: Rigid 1 × 0.75 … 2.5 mm²
Tightening Torque:
– Main Circuit: 2.3 N·m
– Control Circuit: 0.6 N·m
– Supply Circuit: 0.6 N·m
Degree of Protection: IP20 (IEC 60529)

Mechanical & Environmental

Dimensions (W × H × D): 128 × 160 × 45 mm
Weight: 0.6 kg
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +70°C
Installation Category: III

Certifications & Compliance

CE Marked: Yes
RoHS: Compliant (2011/65/EU & 2015/863)
REACH: Certified
UL/CSA Horsepower Ratings:
– 7.5 HP @ 208 V
– 10 HP @ 240 V
– 20 HP @ 480 V
– 25 HP @ 600 V
Maximum UL Voltage: 600 V
WEEE Category: 5 – Small Equipment
Standards: IEC 60947-4-2, EN 60947-1

Key Features & Benefits

✅ High Current Control: 30 A rating for larger loads.

✅ Dual Relays: RUN and Bypass relays provide feedback signals.

✅ Compact Design: Saves panel space without sacrificing performance.

✅ Energy Efficient: Integrated bypass reduces heat and losses.

✅ Status LEDs: Immediate visual indication of operating state.

✅ Easy Setup: Simple potentiometer adjustments for ramp timing.

✅ Optional Communication: Supports Fieldbus integration.

📦 Buy ABB PSR30-600-11 Softstarter at Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable ABB PSR30-600-11 prices.

Maximise motor efficiency and reduce mechanical stress with this compact and reliable softstarter—engineered for ABB quality and ready for industrial duty.
