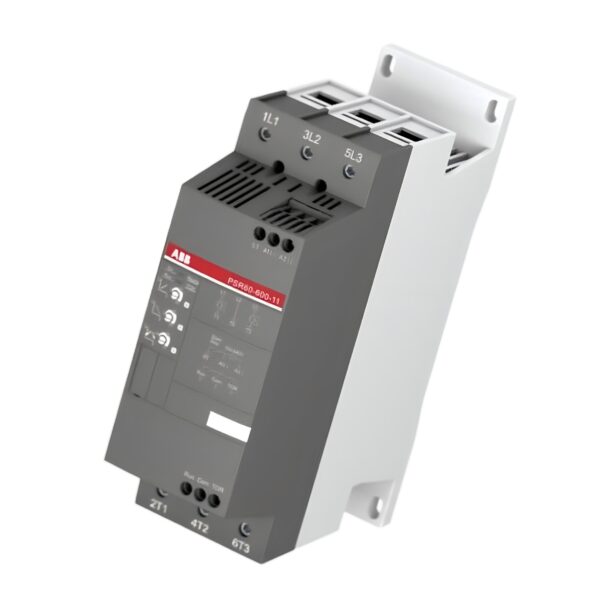

ABB PSR60-600-11 Softstarter (1SFA896112R1100)

The ABB PSR60-600-11 is a high-performance softstarter designed for compact installations requiring reliable motor control. With a maximum operational current of 60 A and voltage range of 208–600 V AC, this softstarter provides controlled motor startup and shutdown using a two-phase voltage ramp.

Ideal for applications like pumps, fans, compressors, and conveyors, the PSR60-600-11 integrates built-in bypass contactors to simplify wiring and reduce heat dissipation. Compatible with ABB MMS protection and optional Fieldbus communication, it offers excellent value in a compact footprint.

Technical Specifications

Model: PSR60-600-11 ABB
Rated Operational Current (Ie): 60 A
Rated Operational Voltage: 208 … 600 V AC
Control Supply Voltage (Us): 24 V AC/DC
Control Circuit Voltage (Uc): 24 V DC
Rated Frequency: 50/60 Hz
Operational Power:
– 15 kW @ 230 V
– 30 kW @ 400 V
– 37 kW @ 500 V
Ramp Time: 1–10 s (Start), 0–20 s (Stop)
Initial Voltage During Start: 40–70%
Step Down Voltage: 100–60%
Starting Capacity: 4 × Ie for 6 s
Max Starts Per Hour: 10 (at 3.5 × Ie for 7 s)

Functionality & Indicators

Soft Start / Stop: Voltage ramp
Built-in Bypass Contactor: Yes
RUN Signal Relay: Yes (NO)
Bypass Signal Relay: Yes
Fault/Overload Relays: Not Available
LED Status Indicators:
– Start Ramp Completed (Green)
– Ready to Start (Green)
– Running (Green)
– Ramping (Green)
Communication Option: FieldBusPlug (optional)
Electronic Overload Protection: No
Recommended MMS: MS495 (45–63 A)
Inside Delta Start: Not Supported
Current Limit Function: No

Electrical & Installation

Terminal Type: Main Circuit: Bars
Main Circuit Connection:
– Rigid 1 × 6–95 mm²
– Rigid 2 × 6–35 mm²
Control Circuit:
– 1 × 0.75–2.5 mm²
– 2 × 0.75–2.5 mm²
Supply Circuit: Rigid 1 × 0.75–2.5 mm²
Tightening Torque:
– Main Circuit: 8 N·m
– Control Circuit: 0.6 N·m
– Supply Circuit: 0.6 N·m
Degree of Protection: IP10 (IEC 60529)

Mechanical & Environmental

Dimensions (W × H × D): 180 × 220 × 70 mm
Weight: 2.1 kg
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +70°C
Installation Category: III

Certifications & Compliance

CE Marked: Yes
RoHS: Compliant (2011/65/EU & 2015/863)
REACH: Certified
UL/CSA Horsepower Ratings:
– 20 HP @ 208 V
– 20 HP @ 240 V
– 40 HP @ 480 V
– 50 HP @ 600 V
Maximum UL Voltage: 600 V
WEEE Category: 5 – Small Equipment
Standards: IEC 60947-4-2, EN 60947-1

Key Features & Benefits

✅ High Power Control: Rated for 60 A and up to 37 kW motors.

✅ Built-in Bypass: Energy efficient and simplified wiring.

✅ Fieldbus Ready: Optional plug-in communication module.

✅ Clear Status LEDs: Indicate system state at a glance.

✅ Compact Footprint: Saves space in control panels.

✅ Flexible Termination: Large main terminals support up to 95 mm².

✅ Reliability by ABB: Trusted performance across industrial applications.

📦 Buy ABB PSR60-600-11 Softstarter at Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable ABB PSR60-600-11 prices.

Built for performance and durability, this compact softstarter is ideal for demanding applications with high start frequency or sensitive mechanical loads.

Click here to check stock or request a quote today.

Fast UK delivery available – order now while stock lasts!
