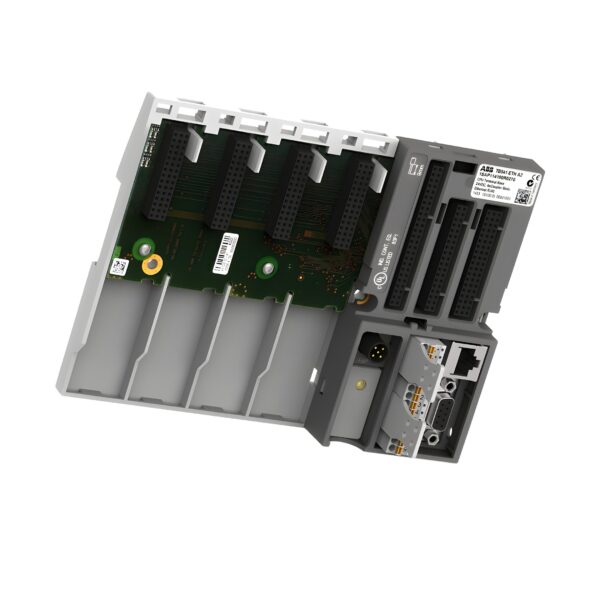

ABB TB541-ETH AC500 Terminal Base

The ABB TB541-ETH is a powerful terminal base designed for AC500 V2 PLCs, featuring four slots for communication modules and built-in Ethernet and RS232/RS485 interfaces. This extended platform provides high connectivity for advanced automation environments that demand modular communication scalability.

Technical Specifications

Manufacturer: ABB
Product Name: TB541-ETH ABB
Product ID: 3ABD00029573
Platform: AC500 V2
Interfaces:
– 1x Ethernet
– 2x Serial (RS232/RS485)
Communication Slots: 4 slots for communication modules
Degree of Protection: IP20

Mechanical Dimensions

Net Weight: 0.24 kg
Gross Weight: 0.311 kg
Product Dimensions (L x W x H): 28 mm x 175.5 mm x 135 mm
Package Dimensions (L x W x H): 147 mm x 189 mm x 40 mm

Environmental & Compliance

UNSPSC: 32151700
WEEE Category: Product Not in WEEE Scope
Tariff Code (CN8): 85044040
Made to Order: No

Ordering Information

Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Selling Unit: Piece

Key Features

✅ Maximum Expansion: 4 slots for communication modules for complex PLC setups.

✅ Integrated Networking: Ethernet interface built-in.

✅ Dual Serial Ports: Includes 2x RS232/RS485 for legacy and serial communication.

✅ DIN-Rail Ready: Compact and modular for control cabinet integration.

✅ AC500 V2 Ready: Optimized for ABB’s latest automation platform.

📦 Buy ABB Terminal Bases – Quad Comm Slot + Ethernet for AC500 PLC Systems

At Drive Outlet Megastore we offer unbeatable ABB TB541-ETH prices.

Ideal for automation engineers looking to deploy multiple communication protocols within one system, the TB541-ETH delivers high flexibility and future-proof control architecture.

Contact us today for pricing, stock availability, or integration support.
