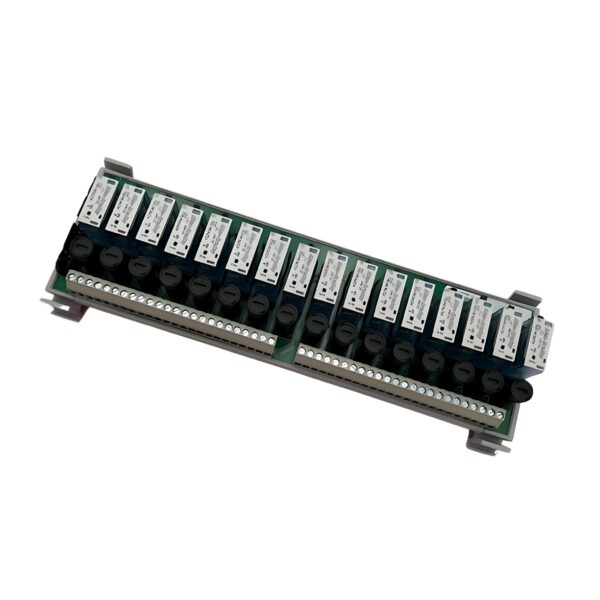

Allen Bradley 1492-XIM24-16RF Relay Expander Module – 24V DC Coil, 16 Relays with Fusing, DIN Rail Mount, for CompactLogix 32-Point I/O

The Allen Bradley 1492-XIM24-16RF is a relay expander interface module designed to simplify PLC I/O wiring and signal isolation in automation systems. Featuring 16 individually fused 24V DC relays, this module provides reliable control and protection for high-density I/O connections. It is engineered for seamless integration with Allen Bradley 1769 CompactLogix 32-point I/O expansion modules.

Built as part of the Allen Bradley 1492 wiring system, the 1492-XIM24-16RF offers plug-in connections on the control side and screw terminals on the field side, enabling fast installation, reduced wiring errors, and simplified maintenance. Its 35mm DIN rail mountable enclosure ensures easy panel integration in both OEM and retrofit automation systems.

Technical Specifications

Model: 1492-XIM24-16RF Allen Bradley
Series: 1492-XIM
Product Type: Relay Expander Module
Coil Voltage: 24V DC
Number of Relays: 16
Fusing: Integrated fuses for each relay output
Rated Current: 96 A total
Mounting Method: DIN rail (top hat rail 35 mm)
Pollution Degree: 2
Control Side Connection: Plug-in connection
Field Side Connection: Screw connection
Width: 280.67 mm
Height: 83.05 mm
Depth: 70.61 mm

Electrical & Performance Details

• Control Voltage: 24V DC nominal
• Relay Channels: 16 individual outputs with integrated fuses
• Main Connector: Designed for 1769 CompactLogix 32-point I/O expansion modules
• Rated Current Capacity: 96A module total (depending on relay load distribution)
• Function: Expands relay output capability and isolates PLC I/O signals
• System Compatibility: Works within the Allen Bradley 1492 interface wiring architecture

Mechanical Specifications

• Width: 280.67 mm
• Height: 83.05 mm
• Depth: 70.61 mm
• Mounting: Standard 35mm DIN rail (top hat)
• Connections: Plug-in on control side, screw terminals on field side
• Housing: Compact polycarbonate enclosure for panel mounting

Environmental & Application Suitability

• Typical Applications: PLC output expansion, machine control, process automation, I/O marshalling panels, and industrial relay interfacing
• Use Case: Ideal for high-density CompactLogix installations requiring fused relay outputs
• Installation Environment: Industrial control panels and automation cabinets

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes (as part of the 1492 system)
• RoHS Compliant: Yes

Key Features & Benefits

✅ 16-channel relay expander for efficient, high-density I/O interfacing.

✅ 24V DC relays suitable for most industrial control systems.

✅ Integrated fusing for added circuit protection and simplified fault isolation.

✅ Plug-in control connections reduce wiring time and installation errors.

✅ Screw terminal field connections ensure secure, serviceable wiring.

✅ Compact, modular design for maximum panel density.

✅ Perfect compatibility with CompactLogix 32-point I/O modules and the 1492 wiring system.

📦 Order the Allen Bradley 1492-XIM24-16RF from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1492-XIM24-16RF prices, with fast UK & EU delivery and professional technical support for PLC wiring and relay expansion systems.

Check stock now or request a quote.

Expand your PLC I/O with the Allen Bradley 1492-XIM24-16RF — precision-engineered for reliability, efficiency, and seamless CompactLogix integration, available at Drive Outlet Megastore.
