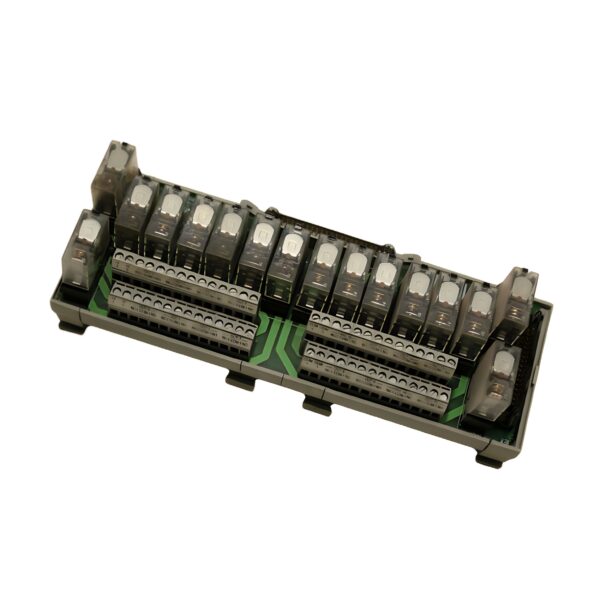

Allen Bradley 1492-XIM4024-16R Interface Relay Module – 24V DC Coil (20–26V), SPDT Contact, DIN Rail Mount, 1492-XIM Wiring System

The Allen Bradley 1492-XIM4024-16R is an interface relay module developed for seamless PLC I/O connection as part of the Allen Bradley 1492 wiring system. With a 24V DC nominal coil (20–26V DC range) and SPDT contact configuration, this compact module delivers reliable switching and signal interfacing in automation panels.

Designed for DIN rail mounting, the 1492-XIM4024-16R simplifies control wiring using pre-wired and pre-tested cables, reducing installation time and maintenance costs. Each interface module includes pre-printed adhesive label cards for clear field-wiring identification, improving organisation and fault tracing in control systems.

Technical Specifications

Model: 1492-XIM4024-16R Allen Bradley
Series: 1492-XIM
Product Type: Interface Relay Module
Coil Voltage Range: 20 → 26V DC (24V DC nominal)
Contact Configuration: SPDT (Single Pole Double Throw)
Mounting Type: DIN Rail (35mm top hat)
System: 1492 Wiring System for PLC I/O Modules
Wiring: Pre-wired / pre-tested cable compatible
Identification: Includes pre-printed field-wiring label cards

Electrical & Performance Details

• Coil Type: DC coil rated for 24V nominal (20–26V DC range)
• Contact Form: SPDT for versatile control and signal switching
• Function: Provides electrical isolation between PLC I/O and field devices
• System Compatibility: Integrates with digital, analog, and high-speed counter PLC I/O modules
• Performance Advantage: Improves wiring efficiency and reduces installation errors

Mechanical Specifications

• Mounting: Standard 35mm DIN rail
• Construction: Compact module for high-density panel layouts
• Design: Simplified interface layout with labelled terminations

Environmental & Application Suitability

• Typical Applications: PLC interface wiring, machine automation, process control, and I/O marshalling
• Use Case: Ideal for systems requiring efficient PLC-to-field device connectivity
• Installation Environment: Industrial control cabinets and automation enclosures

Compliance & Certifications

• CE Marked: Yes
• UL / cUL: Approved as part of the Allen Bradley 1492 interface system
• RoHS Compliant: Yes

Key Features & Benefits

✅ 24V DC operation with wide 20–26V coil voltage range.

✅ SPDT contacts for flexible control and signal interfacing.

✅ Pre-wired and pre-tested system reduces wiring time and complexity.

✅ DIN rail mounting for rapid and secure installation.

✅ Increased DIN rail density for compact, organised control panels.

✅ Pre-labelled wiring terminals improve maintenance and fault identification.

✅ Ideal for PLC I/O connection in high-performance automation systems.

📦 Order the Allen Bradley 1492-XIM4024-16R from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1492-XIM4024-16R prices, with fast UK & EU delivery and expert support for PLC wiring, relay interfaces, and automation system integration.

Check stock now or request a quote.

Enhance your PLC connectivity with the Allen Bradley 1492-XIM4024-16R — engineered for reliability, flexibility, and clean panel design from Drive Outlet Megastore.
