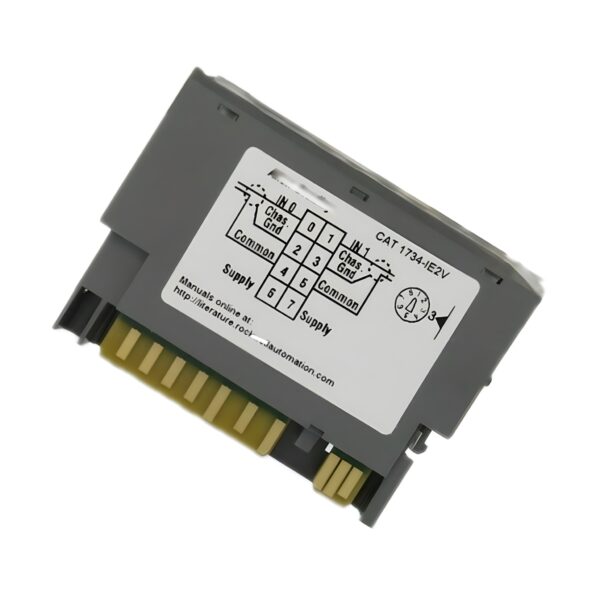

Allen Bradley 1734-IE2V Analog Input Module

The AB 1734-IE2V is a high-performance 2-channel analog voltage input module in the POINT I/O family, designed for compact and scalable distributed control applications. It accepts voltage input ranges of ±10V and 0–10V with 16-bit resolution, delivering exceptional accuracy and signal fidelity for analog sensors, process signals, and instrumentation.

This module is ideal for machine builders and automation engineers seeking space-saving solutions without compromising performance. It integrates seamlessly into the POINT I/O system via TB or TBS terminal bases and is DIN rail mountable for easy installation.

Technical Specifications

Model: 1734IE2V
Series: POINT I/O
Type: Analog Input Module
Channels: 2 Analog Inputs
Signal Type: Voltage Input
Input Ranges: ±10V, 0–10V (selectable)
Resolution: 16-bit
Terminal Base Compatibility: TB / TBS
Application: Analog signal acquisition, PLC expansion, remote I/O

Electrical Specifications

Supply Voltage (Backplane): 24 V DC
Input Type: Analog Voltage
Input Ranges Supported: ±10V, 0…10V
Resolution: 16 bits (0.0015% full-scale typical)
Input Impedance: >1 MΩ
Isolation: Channel-to-backplane isolation
Conversion Rate: One update per channel per scan
Power Dissipation: Approx. 1.0 W
Overvoltage Protection: Integrated
Calibration: Factory calibrated
Overrange/Underrange Detection: Supported

Mechanical Specifications

Width: 12 mm
Height: 56 mm
Depth: 75.5 mm
Mounting Type: DIN rail (POINTBus backplane)
Connection Type: Plug-in connection via TB/TBS base
Installation Orientation: Vertical
Weight: Approx. 45 g
Front Installation Possible: Yes

Environmental Specifications

Operating Temperature: 0…55 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
IP Rating: IP20
Vibration Resistance: IEC 60068-2-6
Shock Resistance: IEC 60068-2-27
Certifications: CE, c-UL-us, RoHS
Use in Commercial Environments: Permitted with appropriate enclosure

Compliance & Communication

Backplane Protocol: POINTBus
Communication Support: Managed by network adapter (e.g., EtherNet/IP, DeviceNet via POINT adapter)
Network Support (Direct): None – requires adapter module
TCP/IP Support: Yes, via POINT I/O communication adapter
Redundancy Support: No
Diagnostics: Basic fault reporting via controller

Key Features & Benefits

✅ Dual Analog Voltage Inputs – Accepts ±10V and 0–10V signals for sensors, transducers, and instrumentation

✅ High 16-bit Resolution – Provides precise measurement for demanding analog input applications

✅ Compact POINT I/O Form Factor – Saves space while supporting scalable distributed I/O setups

✅ Modular Design – Seamless integration with TB/TBS bases and POINTBus backplane

✅ Rockwell Automation Reliability – Built for industrial environments with robust performance
