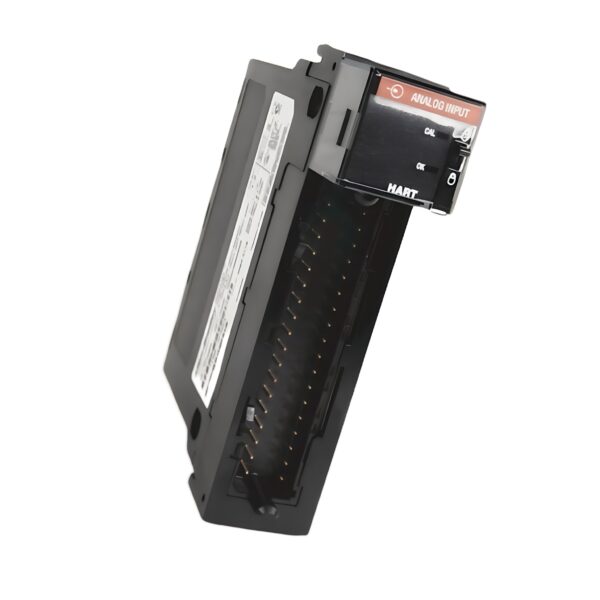

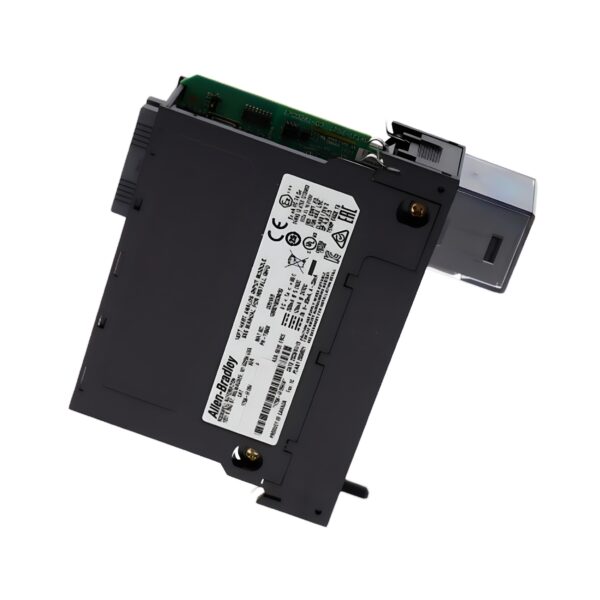

Allen Bradley 1756-IF16H Analog Input Module

The AB 1756-IF16H is a high-performance analog input module from the ControlLogix platform, offering 16 differential inputs with support for HART protocol communication. Designed for process-critical applications, it provides real-time analog measurements along with diagnostic and status data over HART, streamlining commissioning and reducing wiring complexity. This module is ideal for industries requiring precise analog signal acquisition with field-device integration, such as oil & gas, water treatment, and chemical processing.

Technical Specifications

Model: 1756IF16H
Series: ControlLogix
Input Type: Analog (Current/Voltage)
Channels: 16
HART Protocol: Supported
Resolution: 16-bit
Plug Connection: Plug-in terminal
Power Supply Required: Backplane powered

Electrical & Interface Data

• Input, Current: ✔ Yes
• Input, Voltage: ✔ Yes
• Input, Thermocouple / RTD / Resistor: ✖ Not supported
• Output Channels: ✖ None
• Resolution: 16-bit
• HART Support: ✔ Fully supported on each channel
• Explosion Safety (Dust/Gas): ✖ None
• Compatible Chassis: ControlLogix 1756 series

Mechanical & Installation

• Mounting: Backplane mount (ControlLogix chassis)
• Height: 300 mm
• Depth: 111.25 mm
• Width: 38.1 mm
• Electrical Connection Type: Plug-in

Features & Benefits

✅ 16 High-Resolution Inputs. 16-bit analog data precision.

✅ HART Integration. Reduce field wiring and enable device diagnostics.

✅ Robust Construction. Built for industrial environments.

✅ ControlLogix Ready. Native integration with Logix5000 systems.

✅ Scalable Design. Use multiple modules in a single chassis.

📦 Order Today: Allen-Bradley 1756-IF16H Analog Input Module with HART

We offer unbeatable Allen-Bradley 1756-IF16H prices with fast UK delivery and full technical support.
