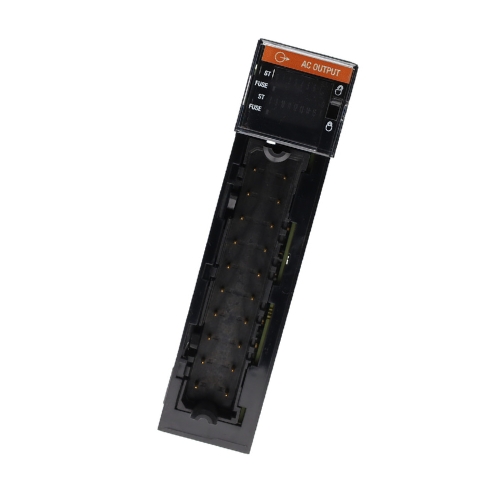

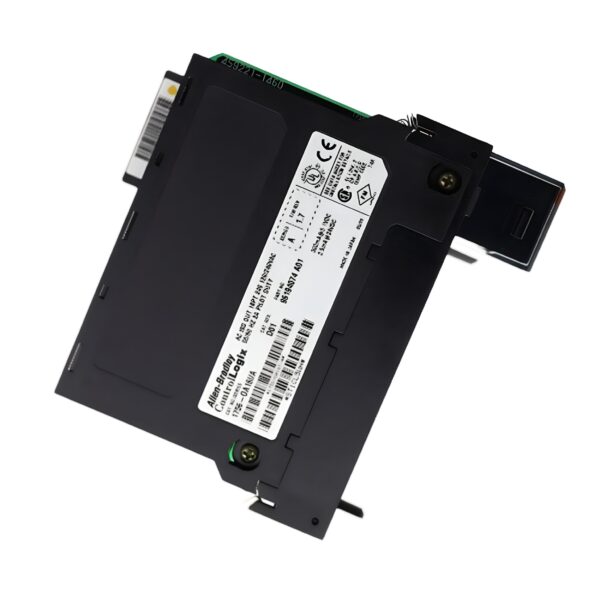

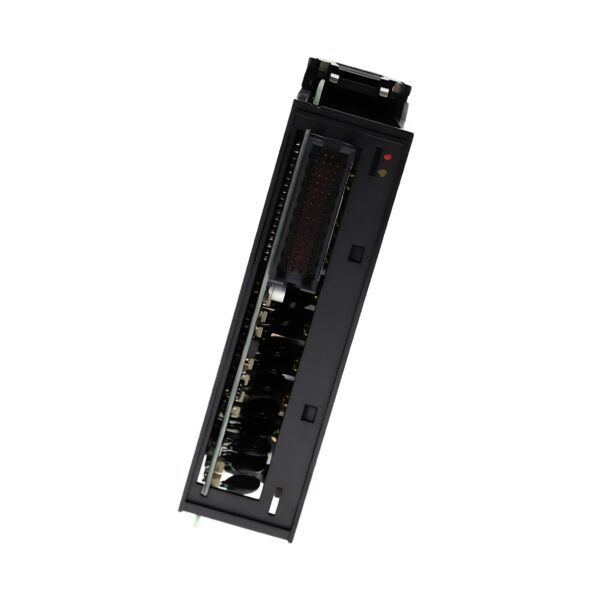

Allen Bradley 1756-OA16I Digital Output Module

The AB 1756-OA16I is a high-voltage AC digital output module for ControlLogix systems, providing 16 isolated triac outputs rated for 74–265 VAC operation. Designed to control actuators, solenoids, and relays in high-voltage applications, the module supports up to 5A total output current and uses plug-in 36-pin terminal connections for efficient wiring.

With individually isolated outputs and support for standard 120/240V AC loads, the 1756-OA16I is ideal for robust industrial control systems requiring reliable and noise-immune AC switching. It installs into any 1756 chassis and integrates seamlessly with Logix-based controllers.

Technical Specifications

Model: 1756OA16I
Series: ControlLogix
Type: Digital AC Output Module
Output Channels: 16 (individually isolated)
Output Voltage Range: 74–265 VAC
Nominal Output Voltage: 110–230 VAC
Output Type: Triac (solid-state AC switching)
Mounting Type: 1756 Chassis Slot
Application: High-voltage output control for industrial actuators, alarms, solenoids, relays, and lighting systems

Electrical Specifications

Output Voltage Type: AC
Permitted Voltage at Output: 110…230 V AC
Output Current (Total): Up to 5 A
Signal Change Delay: 9.3…11 ms (ON/OFF delay)
Short-Circuit Protection: Not included (external protection recommended)
Isolation: Each output channel isolated
Backplane Communication: Via 1756 ControlLogix chassis
Input Current at Signal 1: 10 mA (per active output)

Mechanical Specifications

Width: 38.1 mm
Height: 300 mm
Depth: 111.25 mm
Mounting: ControlLogix chassis slot
Connection Type: 36-pin plug-in terminal block
Housing: Rugged industrial-grade enclosure
Weight: Approx. 280 g

Environmental Specifications

IP Rating: IP20 (when installed in enclosure)
Operating Temperature: 0…60 °C
Storage Temperature: -40…85 °C
Humidity: 5% to 95%, non-condensing
Shock/Vibration Resistance: IEC 60068 compliant
Certifications: CE, cULus, RoHS
Installation Location: Control cabinets, process enclosures

Compliance & Communication

EtherNet/IP / ControlNet / DeviceNet Support: Via controller and communication modules
Studio 5000 Integration: Fully supported
Diagnostic Features: Module and channel status indicators
Redundancy Compatibility: Yes (controller dependent)
Output Monitoring: Configurable via Logix Designer

Key Features & Benefits

✅ 16 Isolated Triac Outputs – Supports high-voltage AC loads with electrical isolation

✅ 74–265 VAC Range – Wide compatibility with global power standards

✅ Compact Chassis Fit – Slim 38.1 mm width for dense I/O applications

✅ Solid-State Switching – Reliable, noise-immune AC output control

✅ Studio 5000 Ready – Seamless integration into Logix automation architectures

✅ Plug-in Terminal Block – Fast, tool-free wiring and maintenance

📦 Order the Allen Bradley 1756-OA16I from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1756-OA16I prices. With 2 units currently in stock, we provide fast delivery and expert support for your high-voltage output control needs.

Click here to request a quote or buy now

Drive Outlet Megastore – your trusted source for Allen Bradley ControlLogix output modules and industrial automation hardware.
