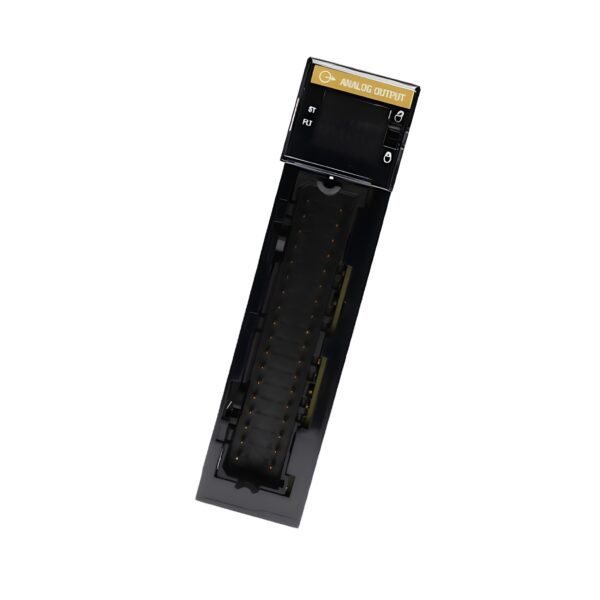

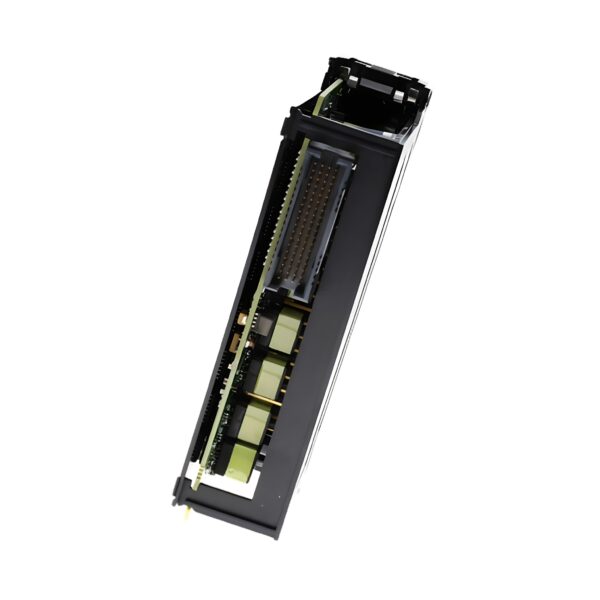

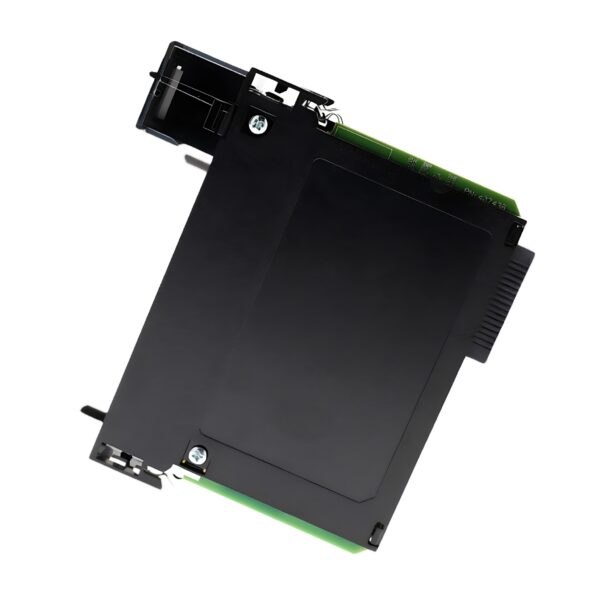

Allen Bradley 1756-OF8I Analog Output Module

The Allen Bradley 1756-OF8I is a high-precision analog output module designed for use with ControlLogix systems. It features 8 individually isolated outputs supporting both current and voltage signals, ensuring robust and noise-resistant control for analog-driven applications.

This module delivers 16-bit resolution and supports a wide range of analog output ranges. It is ideal for industrial automation systems requiring precise analog control in demanding environments.

Technical Specifications

Model: 1756OF8I
Series: ControlLogix
Module Type: Analog Output Module
Channels: 8 Isolated Analog Outputs
Signal Types Supported: Current & Voltage
Resolution: 16-bit
Connector Type: 36-Pin Plug-in

Electrical Specifications

Output Type: Voltage and Current
Output Voltage Ranges: Typically ±10 VDC
Output Current Ranges: Typically 0–20 mA, 4–20 mA
Number of Analog Outputs: 8
Channel Isolation: Individually isolated
Resolution: 16-bit DAC per channel
Power Supply Requirements: Supplied from chassis backplane

Mechanical Specifications

Mounting: Chassis-based (ControlLogix backplane)
Connector Type: Plug-in connection
Width: 38.1 mm
Height: 300 mm
Depth: 111.25 mm
Housing Type: Enclosed module for cabinet installation

Environmental Specifications

Operating Temperature: 0°C to +60°C
Storage Temperature: –40°C to +85°C
Relative Humidity: 5% to 95% non-condensing
Vibration Resistance: IEC 60068-2-6 compliant
Shock Resistance: 30G operational
Explosion Safety Classification (Gas/Dust): None

Compliance & Certifications

CE Marked: Yes
UL Listed: Yes
RoHS Compliant: Yes
ATEX Certified: No
Conformal Coating: No
Standard Compliance: IEC 61131, EN 61010

Key Features & Benefits

✅ 8 Isolated Analog Outputs: Prevents ground loops and signal interference

✅ High Accuracy with 16-Bit Resolution: Enables precise analog control

✅ Supports Voltage & Current Outputs: Flexible for various industrial applications

✅ Compact ControlLogix Format: Simple integration into Logix 5000 systems

✅ Reliable Signal Isolation: Enhances safety and reduces electrical noise
