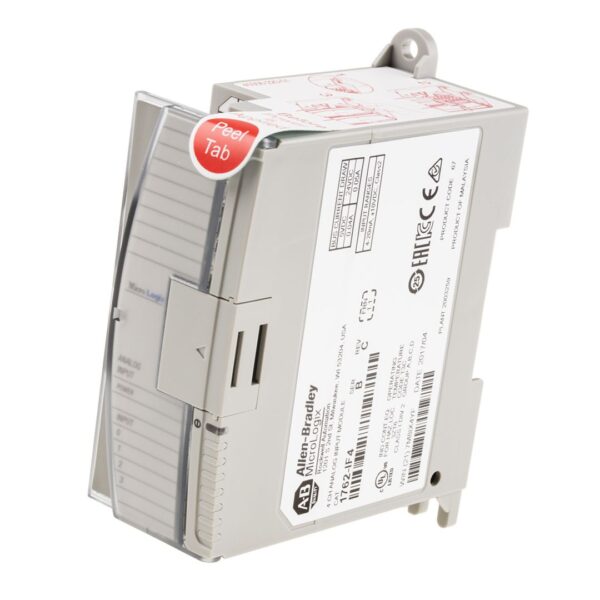

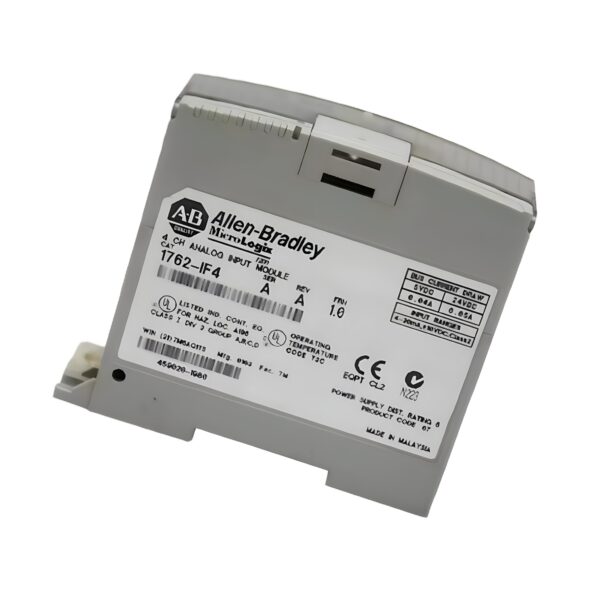

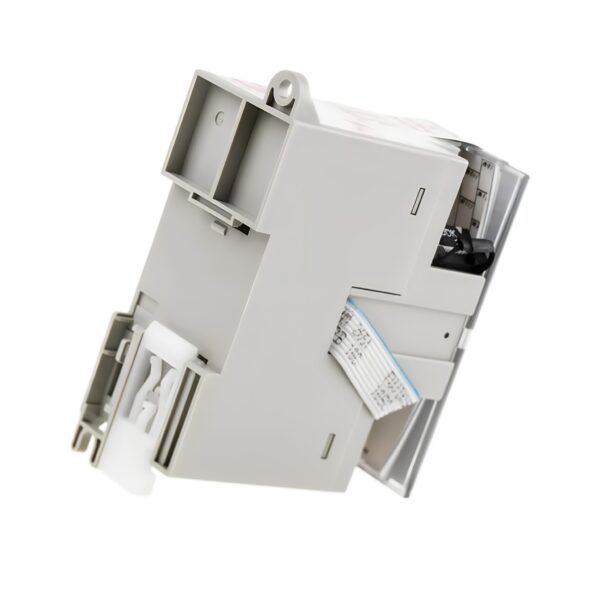

Allen Bradley 1762-IF4 MicroLogix 1200 Input Module

The AB 1762-IF4 is a 4-channel analog input module for the MicroLogix 1200 and 1400 PLC platforms, offering versatile voltage and current input capability with high-resolution signal conversion. It supports input ranges of ±10V and 4–20 mA, making it ideal for integrating analog sensors, transmitters, and instrumentation into compact control systems.

With 15-bit resolution and rugged DIN-rail mount design, the 1762-IF4 delivers reliable and precise analog signal monitoring for a wide range of industrial automation and process applications.

Technical Specifications

Model: 1762IF4
Series: MicroLogix 1200 / 1400
Type: Analog Input Module
Channels: 4 Analog Inputs
Signal Type: Voltage / Current
Input Ranges: ±10V, 0–10V, 4–20 mA (selectable per channel)
Resolution: 15-bit
Application: Analog sensor input, process control, signal acquisition

Electrical Specifications

Input Type: Voltage or Current
Voltage Ranges Supported: ±10V, 0–10V
Current Range Supported: 4–20 mA
Resolution: 15 bits (0.003% full-scale typical)
Input Impedance:

• Voltage: >1 MΩ
• Current: ~250 Ω
  Overrange Detection: Supported
  Isolation: Channel-to-backplane isolation
  Power Dissipation: Approx. 1.3 W
  Calibration: Factory calibrated
  Update Rate: Software-configurable via controller

Mechanical Specifications

Width: 40.4 mm
Height: 90 mm
Depth: 87 mm
Mounting Type: DIN rail
Connection Type: Screw terminal block
Installation Orientation: Vertical
Explosion Safety Category (Gas/Dust): Not rated
Weight: Approx. 180 g
Front Installation Possible: Yes

Environmental Specifications

Operating Temperature: 0…55 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
IP Rating: IP20
Vibration Resistance: IEC 60068-2-6
Shock Resistance: IEC 60068-2-27
Certifications: CE, c-UL-us, RoHS
Use in Commercial Environments: Permitted with proper enclosure

Compliance & Communication

Backplane Protocol: MicroLogix expansion bus
Controller Compatibility: MicroLogix 1200, MicroLogix 1400
Diagnostics: Channel error status via controller
Redundancy Support: Not supported
TCP/IP Support: Not applicable – relies on host controller
Programming Software: RSLogix 500

Key Features & Benefits

✅ 4 Analog Inputs – Supports both current and voltage signal types for flexible I/O design

✅ Selectable Input Ranges – ±10V and 4–20 mA inputs tailored to match sensor output

✅ High Resolution – 15-bit analog conversion ensures accurate signal capture

✅ Compact MicroLogix Format – Ideal for small machine control and embedded automation

✅ Proven Reliability – Backed by Rockwell Automation’s industrial-grade quality

📦 Order the Allen Bradley 1762-IF4 from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1762-IF4 prices. With 1 unit currently in stock, this versatile analog input module is ready for immediate dispatch to help you expand your MicroLogix-based automation system.

Click here to request a quote or buy now

Drive Outlet Megastore – your trusted source for Allen Bradley analog input modules and MicroLogix expansion solutions.
