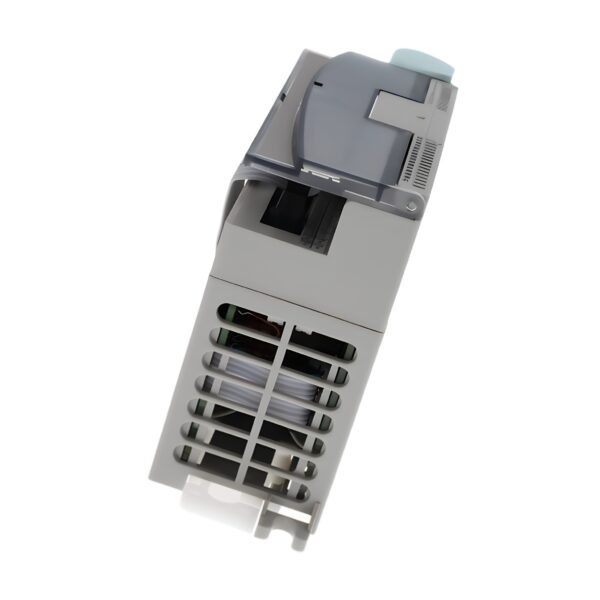

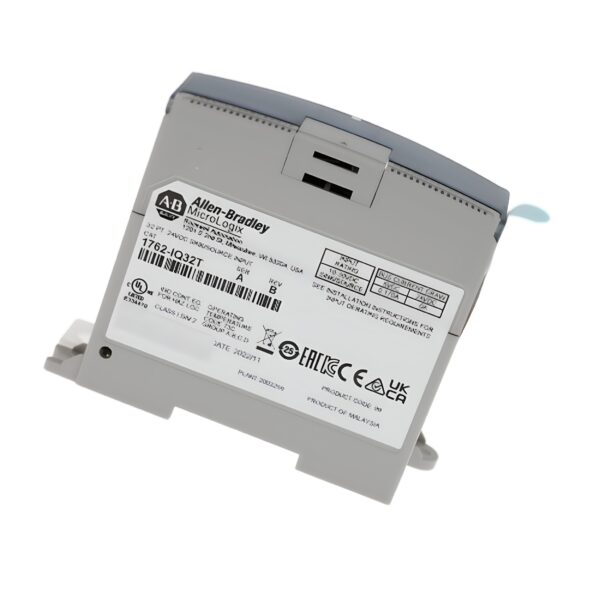

Allen Bradley 1762-IQ32T Digital Input Module – 32-Channel, 24V DC Inputs for MicroLogix 1200 PLC

The Allen Bradley 1762-IQ32T is a high-density 32-channel digital input module designed for the MicroLogix 1200 PLC platform. Supporting 24V DC input devices, this module is ideal for applications with large numbers of sensors, switches, or discrete monitoring points where compact I/O expansion and reliable signal recognition are essential.

With a compact footprint and screw-terminal wiring, the 1762-IQ32T integrates cleanly into both OEM and plant-floor control panels. Its stable 6.5 mA input threshold and 8 ms signal de-bounce performance ensure accurate digital state detection in industrial environments subject to electrical noise and vibration.

Technical Specifications

Model: 1762-IQ32T Allen Bradley
Brand: Allen Bradley
Series: MicroLogix 1200
Module Type: Digital Input Module
Number of Digital Inputs: 32
Input Voltage: 24V DC
Input Current (Logic High): 6.5 mA
Signal Response Time: 8 ms (typical)
Output Channels: None
Connection Type: Screw Terminal

Electrical & Performance Details

• Voltage Type: DC input field devices
• Short-Circuit Protection: Not provided (external protection recommended)
• Digital Output Capability: Not included (input-only module)
• Input Filtering: 8 ms fixed input de-bounce

Mechanical Specifications

• Height: 90 mm
• Width: 40.4 mm
• Depth: 87 mm
• Mounting: Direct expansion to MicroLogix 1200 chassis
• Terminal Method: Screw terminal field connection

Environmental Specifications

• Operating Environment: Industrial automation and machine control
• Typical Applications: Sensors, limit switches, pushbuttons, machine I/O banks
• Explosion Safety Certification: Not rated for hazardous areas

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes

Key Features & Benefits

✅ 32 digital inputs for high-density machine or process I/O.

✅ 24V DC signal compatibility for industry-standard field devices.

✅ Compact module footprint helps minimise panel space usage.

✅ Reliable input filtering provides clean digital state detection.

✅ Trusted Allen Bradley build quality for continuous industrial uptime.
