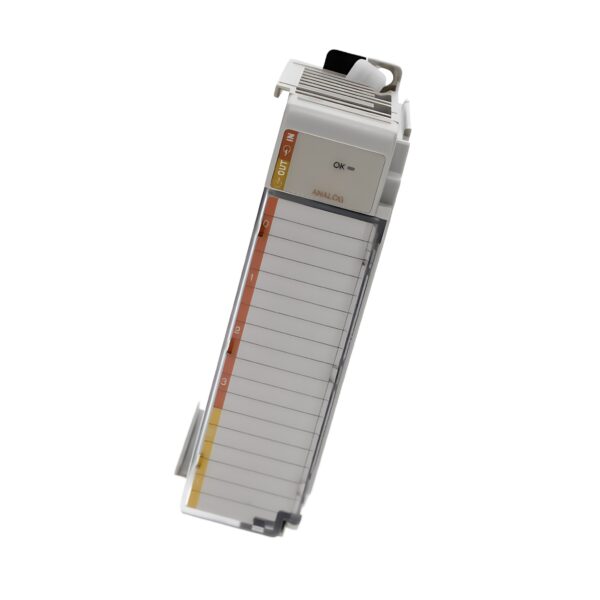

Allen Bradley 1769-IF4XOF2 Analog Combination Module

The AB 1769-IF4XOF2 is a CompactLogix analog combination module that provides a reliable solution for applications requiring both input and output signal processing. Featuring 4 analog voltage inputs and 2 analog voltage outputs, this single-slot module is ideal for monitoring and controlling a variety of analog devices in compact control systems.

Technical Specifications

Manufacturer: 1769IF4XOF2
Product Series: CompactLogix 1769
Part Number: 1769-IF4XOF2
Module Type: Analog Combination (I/O)
Input Channels: 4 Analog Inputs
Output Channels: 2 Analog Outputs
Resolution: 8-bit

Electrical Specifications

Input Signal Type: Voltage (+10V)
Output Signal Type: Voltage (+10V)
Input Current: Yes
Input, Thermocouple/RTD: No
Short-Circuit Protection: Not available
Output, Current/Voltage: No (data field shows none, but module includes voltage output)

Mechanical Specifications

Module Width: 87 mm
Module Height: 118 mm
Module Depth: 35 mm
Mounting Type: DIN Rail or Panel
Connection Type: Screw Terminal
Form Factor: Single-slot

Environmental Specifications

Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5–95% non-condensing
Vibration/Shock Resistance: Complies with IEC 60068

Key Features & Benefits

✅ Compact combination module – Saves space by integrating both analog input and output in one unit

✅ 4 analog voltage inputs – Ideal for precise measurement and monitoring of process signals

✅ 2 analog voltage outputs – Enables direct control of analog actuators

✅ Simple wiring – Screw terminal block ensures secure and reliable connections

✅ CompactLogix-compatible – Designed for seamless integration with 1769 I/O platforms

📦 Order the Allen Bradley 1769-IF4XOF2 Today

At Drive Outlet Megastore we offer unbeatable Allen Bradley 1769-IF4XOF2 prices. This versatile analog I/O module is perfect for space-conscious automation setups requiring flexible signal interfacing.
