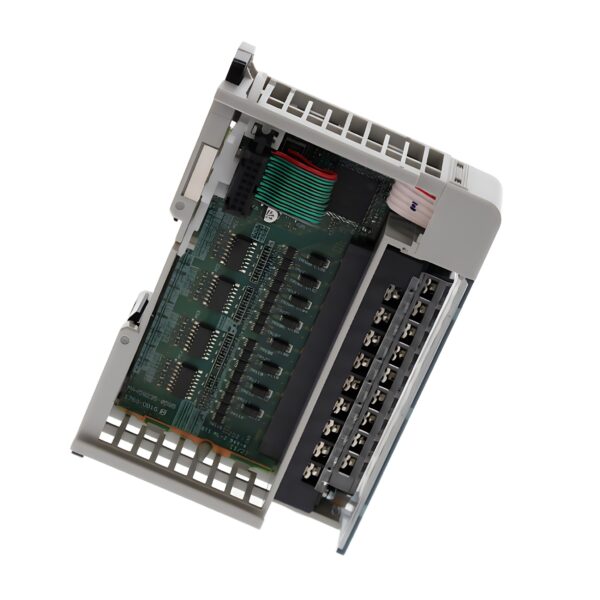

Allen Bradley 1769-OB16 Digital Output Module

The AB 1769-OB16 is a 16-point Compact I/O digital output module designed for use with CompactLogix and MicroLogix 1500 controllers. Featuring 16 sourcing (positive logic) transistor outputs, it delivers 24V DC output signals for controlling indicators, relays, solenoids, and other field devices.

With a compact 35 mm width and plug-in terminal connection, the 1769-OB16 allows for fast installation in space-constrained panels. It provides output current up to 0.2 A per channel and supports fast switching with signal change delays between 0.1 and 1 ms. This module is ideal for high-density digital output applications in industrial automation systems.

Technical Specifications

Model: 1769OB16
Series: Compact I/O
Type: Digital Output Module
Output Channels: 16
Output Type: Sourcing (Transistor, Positive Logic)
Output Voltage: 24 V DC
Current per Output: 0.2 A
Signal Change Delay: 0.1…1 ms
Mounting Type: DIN rail or chassis mount
Application: Output control of discrete DC loads in CompactLogix and MicroLogix 1500 systems

Electrical Specifications

Output Voltage Range: 24…24 V DC
Output Type: Transistor (sourcing)
Output Current per Channel: 0.2 A
Short-Circuit Protection: Not included
Number of Digital Inputs: 0
Number of Digital Outputs: 16
Isolation: Channel-to-backplane isolation
Backplane Current (5V): Module-specific (consult datasheet)
Output Delay (On/Off): Configurable from 0.1 to 1 ms
Load Type: Resistive or inductive (within specs)

Mechanical Specifications

Width: 35 mm
Height: 118 mm
Depth: 87 mm
Mounting Type: DIN rail or panel mount via Compact I/O system
Connection Type: Plug-in terminal block (removable)
Form Factor: Compact I/O modular
Status Indicators: Per channel LED indicators

Environmental Specifications

Operating Temperature: 0…+60 °C
Storage Temperature: –40…+85 °C
Relative Humidity: 5%…95% non-condensing
IP Rating: IP20 (when mounted in enclosure)
Shock/Vibration Resistance: IEC 60068 compliant
Certifications: CE, UL, cULus, RoHS
Application in Commercial/Residential Areas: Permitted

Compliance & Communication

Compatible Controllers: CompactLogix, MicroLogix 1500
Configuration Software: Studio 5000 / RSLogix 5000 / RSLogix 500
Module Type: Output only
Protocol Support: Not applicable (I/O module)
Diagnostics: Channel-level diagnostics via controller

Key Features & Benefits

✅ 16 DC Sourcing Outputs – Compact solution for controlling digital loads in automation systems

✅ Fast Switching Capability – Signal change delay configurable between 0.1–1 ms

✅ Compact DIN Rail Form Factor – Saves space in control panels and distributed I/O installations

✅ Plug-in Terminal Block – Simplifies installation, wiring, and maintenance

✅ Rockwell Integration – Seamlessly integrates with CompactLogix and MicroLogix platforms

✅ Cost-Effective High-Density Output – Ideal for applications requiring multiple DC output points
