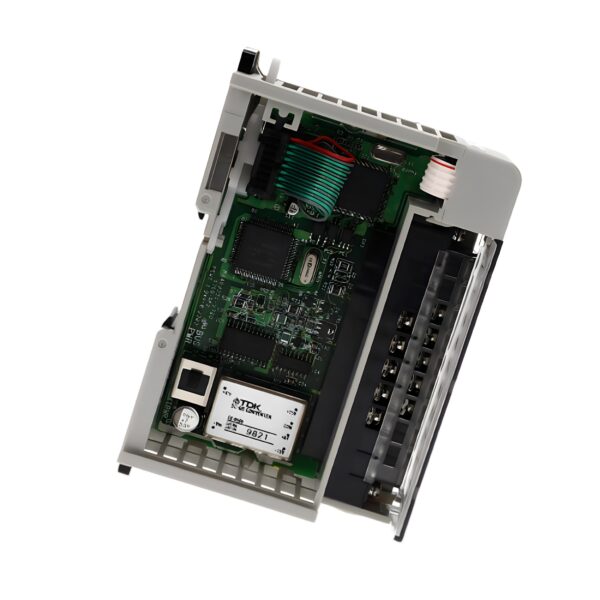

Allen Bradley 1769-OF2 Analog Output Module

The AB 1769-OF2 is a Compact I/O analog output module engineered for precision analog signal control in industrial applications. Designed to deliver stable analog output for current or voltage signals, this module supports a wide range of process control requirements, including actuator control, analog signaling to drives, and setpoint generation.

Part of the CompactLogix and MicroLogix 1500 platform, the 1769-OF2 ensures seamless integration, high-speed performance, and easy installation in space-constrained control cabinets.

Technical Specifications

Manufacturer: Allen Bradley
Series: Compact I/O
Part Number: 1769OF2
Module Type: Analog Output
Channels: 2 analog outputs

Electrical Specifications

Output Types:
– Voltage: ±10V
– Current: 0–20 mA, 4–20 mA

Resolution: 14-bit
Load Resistance (Voltage Mode): ≥1 kΩ
Load Resistance (Current Mode): ≤600 Ω
Channel-to-channel Isolation: None (single group)
Backplane Current (5V): 130 mA
Backplane Current (24V): 60 mA

Mechanical Specifications

Width: 87 mm
Height: 118 mm
Depth: 35 mm
Mounting Type: DIN rail
Connection Type: Screw terminal
Module Style: Compact plug-in

Environmental Specifications

Operating Temperature: 0°C to +60°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5–95% non-condensing
Shock: 30 g
Vibration: 5 g, 10–500 Hz
IP Rating: IP20
Pollution Degree: 2

Compliance & Certifications

CE Marked: Yes
UL Listed: Yes
CSA Certified: Yes
RoHS Compliant: Yes
ATEX Certified: No
Explosion Safety (Gas/Dust): None

Supported Protocols (via controller):
– EtherNet/IP
– TCP/IP
– DeviceNet, Modbus, and others (controller dependent)

Key Features & Benefits

✅ 2 Isolated Analog Outputs – Supports both current and voltage formats

✅ 14-Bit Resolution – Ensures accurate signal control for industrial processes

✅ Flexible Output Ranges – Supports ±10V and 0–20 mA analog standards

✅ Compact DIN Rail Mounting – Ideal for space-limited enclosures

✅ Compatible with CompactLogix & MicroLogix 1500 – Seamless integration with Allen Bradley controllers
