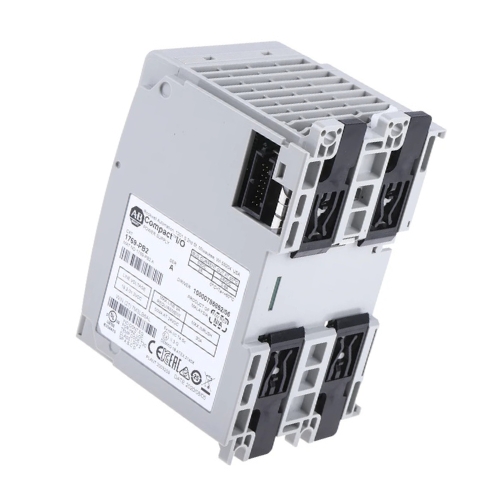

Allen Bradley 1769-PB2 Expansion Power Supply Unit

£258.69 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Model 1769PB2
Series Compact I/O
Type Expansion Power Supply Module
Input Voltage 24V DC nominal
Input Voltage Range 24V DC (regulated)
Mounting Type DIN rail or direct panel mount
Connection Type Removable terminal block (standard with 1769 series)
IP Rating IP20
Protection Features Overcurrent, short-circuit, and thermal protection
Output Power 50 W total
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 1769-PB2 Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 1769-PB2 Expansion Power Supply Unit

The AB 1769-PB2 is a DC-powered expansion power supply unit for Compact I/O systems, delivering dependable 24V DC operation with a total output power of 50W. This compact module provides up to 4 A at 5V DC and 2 A at 24V DC, supporting both logic and peripheral loads within CompactLogix and MicroLogix 1500 controller architectures.

Technical Specifications

Model 1769PB2
Series Compact I/O
Type Expansion Power Supply Module
Input Voltage 24V DC nominal
Output Power 50 W total
Redundancy Support No
Application CompactLogix and MicroLogix 1500 systems, I/O rack power

Electrical Specifications

Input Voltage Range 24V DC (regulated)
5V DC 4 A
24V DC 2 A
Efficiency High-efficiency switch-mode conversion
Protection Features Overcurrent, short-circuit, and thermal protection
Output Ratings 5V DC: 4 A 24V DC: 2 A Backplane Current Supply: Left Side: 1.4 A @ 5V DC Right Side: 1.0 A @ 5V DC Efficiency: High-efficiency switch-mode conversion Protection Features: Overcurrent, short-circuit, and thermal protection
Backplane Current Supply 24V DC: 2 A Backplane Current Supply:

Mechanical Specifications

Width 70 mm
Height 118 mm
Depth 78 mm
Mounting Type DIN rail or direct panel mount
Connection Type Removable terminal block (standard with 1769 series)
Module Format Single-slot width

Environmental Specifications

Operating Temperature 0°C to 60°C
Storage Temperature –40°C to +85°C
Humidity 5% to 95% RH (non-condensing)
IP Rating IP20
Pollution Degree 2
Installation Location Control cabinet (indoor use only)

Compliance & Certifications

CE Marked Yes
UL / cUL Listed Yes
RoHS Compliant Yes
Standards IEC 61131-2, EN 61010-2-201

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 1769-PB2 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can 1769-PB2 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 2 kg
