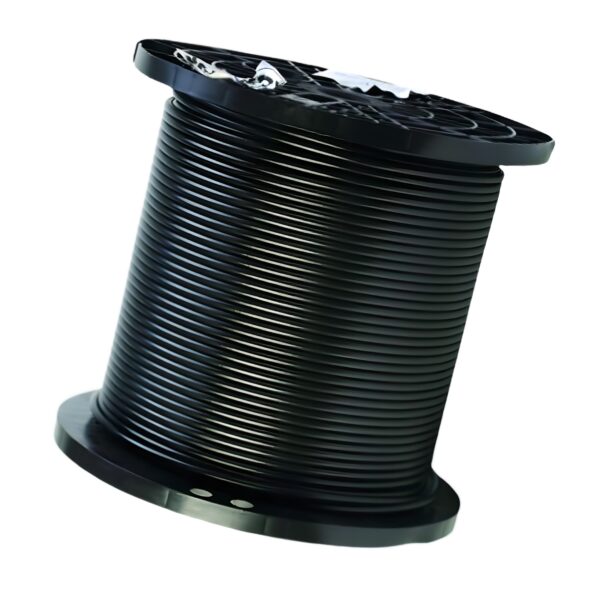

Allen Bradley 1786-RG6 Controlnet RG6 Shield 1000FT Cable

The AB 1786-RG6 is a high-performance RG-6 coaxial cable designed specifically for ControlNet communication networks. Featuring a quad-shielded construction, this 1000-foot spool ensures optimal signal integrity and noise immunity in demanding industrial environments where high-speed deterministic control is critical.

Manufactured with a durable PVC outer jacket, this cable maintains a consistent 75 Ohm impedance and is ideal for long-distance ControlNet trunk and drop cable installations. Suitable for use in both fixed and semi-flexible applications, it supports reliable real-time data exchange between Rockwell Automation components in distributed control systems.

Technical Specifications

Model: 1786RG6
Series: ControlNet
Type: Coaxial Cable (Quad-Shield)
Cable Standard: RG-6
Impedance: 75 Ohms
Length: 1000 ft (304.8 m)
Shield Type: Quad-shielded (double foil, double braid)
Application: ControlNet trunk/drop cable, network infrastructure

Electrical Specifications

Characteristic Impedance: 75 Ohm ±3
Capacitance: Nominal (typical RG-6 value) ~16.5 pF/ft
Voltage Rating: Up to 300 V RMS
Signal Attenuation: Low-loss (dependent on frequency and distance)
Shield Coverage: >95% (quad-layer for superior EMI protection)

Mechanical Specifications

Outer Jacket Material: Polyvinyl Chloride (PVC)
Conductor Type: Solid bare copper
Shield Layers: Two aluminum foil shields + two braided shields
Diameter (Approx.): 6.9 mm (typical RG-6)
Spool Length: 1000 feet
Color: Black (standard ControlNet identification)

Environmental Specifications

Operating Temperature Range: –40°C to +85°C
Installation Temperature Range: 0°C to +60°C
Humidity: 5% to 95% RH (non-condensing)
UV Resistance: Yes (typical PVC jacket)
Oil/Water Resistance: Moderate – suitable for clean industrial environments

Compliance & Certifications

CE Marked: Yes
UL / cUL Recognized: Yes
RoHS Compliant: Yes
Standards: Compliant with ControlNet physical media requirements (ODVA)

Key Features & Benefits

✅ ControlNet Certified: Engineered to meet Rockwell Automation’s ControlNet physical layer specs

✅ Quad Shielding: Superior noise immunity for high-interference environments

✅ Long-Distance Ready: Supports 1000-foot trunk runs with consistent 75 Ohm impedance

✅ Durable PVC Jacket: Flexible yet rugged, for industrial-grade cable management

✅ Easy Termination: Compatible with standard RG-6 compression or crimp connectors

📦 Order the Allen Bradley 1786-RG6 from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Allen Bradley 1786-RG6 prices. Ensure high-reliability ControlNet network performance with this premium RG-6 quad-shield coaxial cable—ideal for trunk or drop segment installations.

Check stock now or request a quote

Shielded for speed. Built for reliability. — Drive Outlet Megastore
