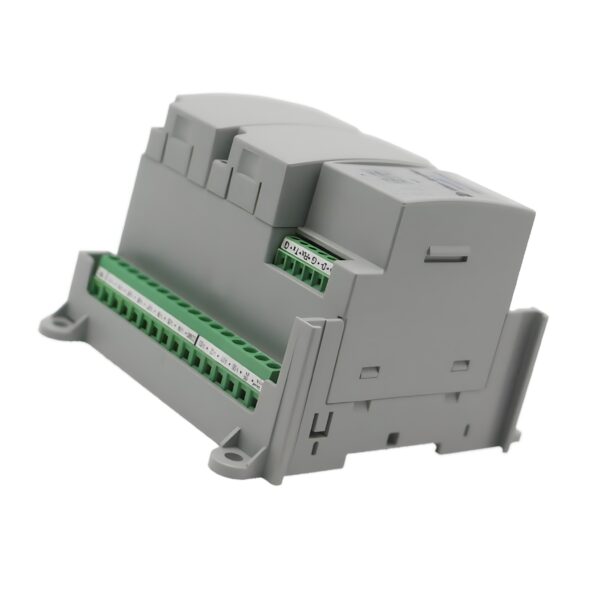

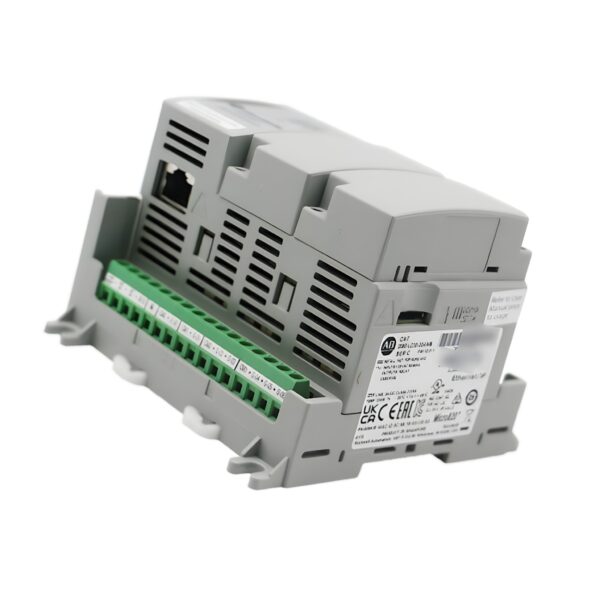

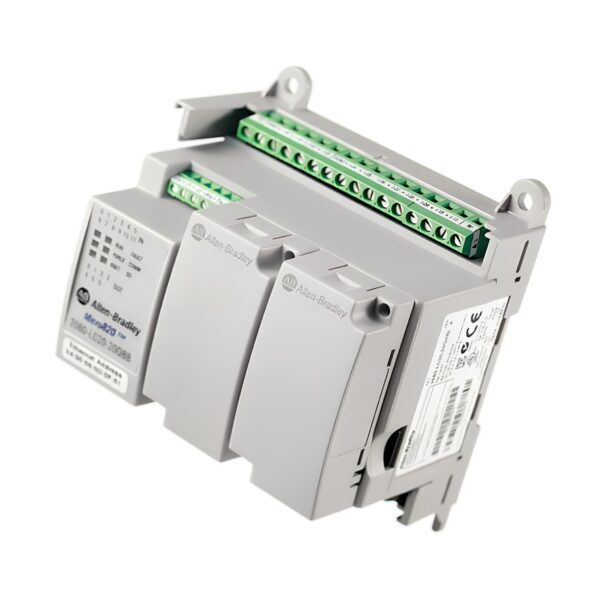

Allen Bradley 2080-LC20-20AWB Micro820 PLC – 20 I/O, Ethernet/IP, Analog + Relay Outputs, MicroSD, Compact Controller

The Allen Bradley 2080-LC20-20AWB is a versatile Micro820 programmable logic controller designed for compact machine control, OEM automation, and distributed control panel applications. It features a flexible mix of digital, analog, and relay I/O along with embedded communication ports to support modern industrial networking and device integration.

This controller includes 12 digital inputs (with 8 × 110–120V AC input support), 8 relay outputs, 4 configurable analog inputs with thermistor reference, and 1 analog output. Built-in EtherNet/IP and RS-232/485 serial interfaces provide connectivity for PLC-to-PLC networks, HMIs, drives, and sensors. A MicroSD card slot supports data logging, recipe handling, and program backup, while the integrated real-time clock enables time-based control logic.

Technical Specifications

Model: 2080-LC20-20AWB Allen Bradley
Series: Micro820
Controller Type: Compact Programmable Logic Controller (PLC)
Digital Inputs: 12 total (8 × 110–120V AC compatible)
Relay Outputs: 8
Digital Outputs: 4
Analog Inputs: 4 configurable (with thermistor reference support)
Analog Outputs: 1
Memory: 20 kB user program memory
Communication Ports: Ethernet/IP, RS-232/485 Serial, USB
Expansion Support: 2 Micro800 plug-in modules
Storage: MicroSD Card Support
Integrated Display: Yes

Communication & Networking

• EtherNet/IP: Supported for HMI, PLC, and SCADA communication
• Modbus: Supported over RS-232/485
• Programming Software: Connected Components Workbench (CCW)
• Data Logging & Recipes: Via MicroSD storage

Mechanical & Installation Specifications

• Height: 90 mm
• Width: 100 mm
• Depth: 80 mm
• Mounting: DIN rail, panel, wall, or rack assembly
• Form Factor: Compact model with removable terminal blocks (RTB)

Environmental & Application Suitability

• Operating Environment: Factory automation, OEM systems, commercial control panels
• Typical Applications: Motor control, HVAC systems, packaging lines, water systems, small machine automation
• Safety Rating: Not SIL / Performance Level rated (standard control use)

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes

Key Features & Benefits

✅ All-in-one PLC with digital, analog, and relay I/O onboard.

✅ Built-in Ethernet/IP ensures seamless HMI and network integration.

✅ Analog measurement and output support process and temperature control.

✅ MicroSD functionality simplifies backups, logging, and recipe management.

✅ Supports plug-in expansion for scalable application needs.

✅ Compact, panel-ready design saves cabinet space and integration time.
