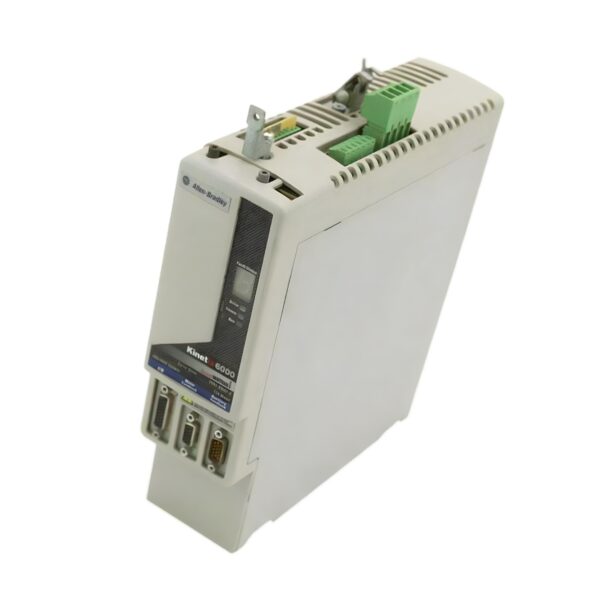

Allen Bradley 2094-BM02-S Kinetix 6000 Axis Module

The AB 2094-BM02-S is a high-performance axis inverter module from the Kinetix 6000 series, designed for multi-axis servo drive systems. Operating on a 3-phase 480 VAC input, it delivers 6.6 kW continuous power output at 15 A with integrated Safe Torque-Off (STO) functionality for safety-critical applications.

Engineered for demanding motion control environments, this module offers precise torque and velocity regulation in a compact form, ensuring seamless integration into EtherNet/IP or SERCOS-based Kinetix 6000 servo systems.

Technical Specifications

Model: 2094BM02S
Series: Kinetix 6000
Module Type: Axis Inverter
Inverter Current Rating: 15 A Continuous
Continuous Output Power: 6.6 kW
Input Voltage: 3-Phase, 400–480 VAC
Frequency Range: 50/60 Hz
Safe Torque-Off (STO): Integrated
Cooling Method: Internal Fan

Communication & Integration

Drive System: Kinetix 6000
Supported Networks:
SERCOS
EtherNet/IP (via interface module)
Safety Compliance:
Safe Torque-Off (STO) per IEC 61800-5-2
ISO 13849-1 (PLd)
SIL2 (IEC 61508)

Mechanical Specifications

Mounting: Panel / Rail Mounted
Enclosure Rating: IP20 (Open Type)
Frame Size: Standard
Cooling: Convection or Fan-Assisted
Weight: Approx. 3.6 kg

Environmental Specifications

Operating Temperature: 0°C to +55°C
Storage Temperature: -40°C to +85°C
Relative Humidity: 5% to 95% (non-condensing)
Altitude: Up to 1000 m without derating
Certifications:
cULus
CE
RoHS
TUV Functional Safety

Key Features & Benefits

✅ 6.6 kW Continuous Power Output for robust servo motion

✅ Safe Torque-Off (STO) integrated for compliance with global machine safety standards

✅ Compact Design for high-density control cabinet layouts

✅ High-Speed Servo Performance with SERCOS or EtherNet/IP integration

✅ Seamless Compatibility with Kinetix 6000 systems and MP-Series motors

📦 Order the Allen Bradley 2094-BM02-S Today

At Drive Outlet Megastore we offer unbeatable Allen Bradley 2094-BM02-S prices. Power your multi-axis motion system with this robust and safety-rated Kinetix 6000 inverter module.

Request a quote or check availability – Fast UK & EU shipping available.
