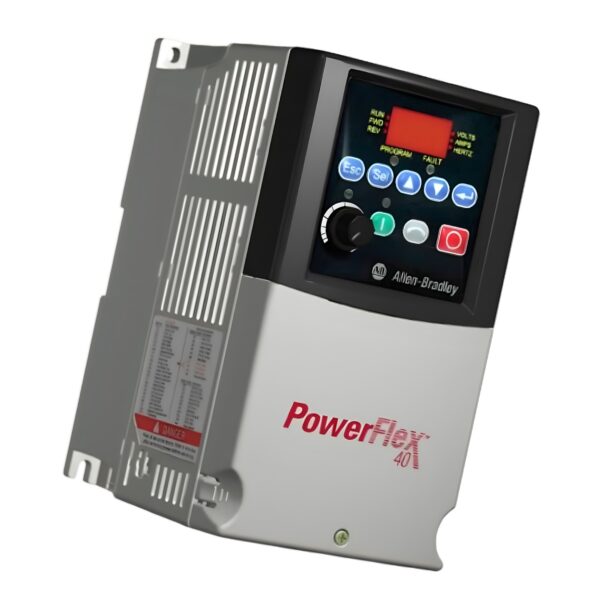

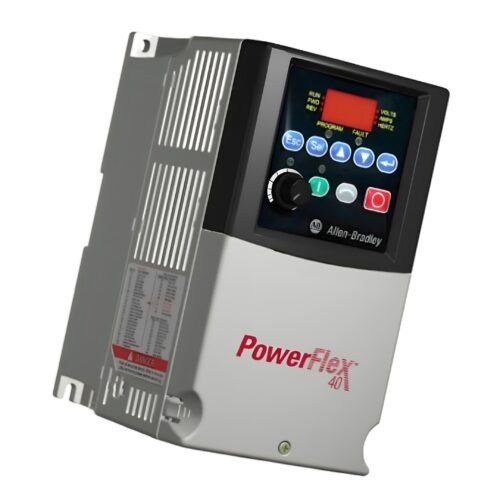

Allen Bradley 22B-D012N104 Inverter Drive – 5.5kW, IP20

£1,743.35 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Input Voltage 380–480 VAC, 3 Phase
Model 22BD012N104
Nominal Output Current 12 A
Series PowerFlex 40
Display Type LED with digital keypad
Enclosure Type IP20, Open
Input Frequency 50/60 Hz
Output Frequency Range Up to 400 Hz
Enclosure Rating IP20 (Open Type)
Mounting DIN rail or panel
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

Complete Your Drive System with the Right Motor & Gearbox

Explore electric motors, worm gearboxes and complete geared motors at our sister site, Worm Gear Motors Online. Get expert help selecting the right combination for your inverter, required speed and torque.

Explore Motors & Gearboxes ↗
SKU: 22B-D012N104 Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 22B-D012N104 Inverter Drive – 5.5kW, IP20

The Allen-Bradley 22B-D012N104 is a robust and cost-effective PowerFlex 40 AC drive , designed to provide compact motor control for general-purpose applications requiring speed control, flexible mounting, and basic communication. Delivering 12 A output current and supporting up to 5.5 kW (7.5 HP) of motor power, this model features Frame Size C , IP20 Open Type enclosure , RS-485 communications , and a non-filtered input for installations with external EMC measures.

Technical Specifications

Model 22BD012N104
Series PowerFlex 40
Frame Size C
Display Type LED with digital keypad
Filter None (No CE compliant filter)
Enclosure Type IP20, Open
Mounting DIN rail or panel
Cooling Method Internal fan

Electrical Specifications

Input Voltage 380–480 VAC, 3 Phase
Output Power – Quadratic Load 5.5 kW (7.5 HP)
Nominal Output Current 12 A
Input Frequency 50/60 Hz
Output Frequency Range Up to 400 Hz
Brake Chopper Included
Brake Resistor Not included
Control Unit Integrated keypad with display

I/O and Interface Capabilities

Analog Inputs 2
Analog Outputs 1
Digital Inputs 2
Digital Outputs 2
RS-485 Communication Yes
USB / Ethernet Not supported
Supported Protocols ✖ Modbus ✖ EtherNet/IP ✖ DeviceNet ✖ TCP/IP / SERCOS

Mechanical Specifications

Width 100 mm
Height 180 mm
Depth 136 mm
Weight Approx. 2.4 kg
Mounting Options DIN rail / panel
Enclosure Rating IP20 (Open Type)

Environment & Compliance

Use in Domestic/Commercial Installations Yes
Ambient Operating Temp -10°C to +50°C (derating may apply)
Altitude Derating Applies above 1000 m
Certifications UL, cUL, CE (if external filter applied), RoHS
EMC Compliance Requires external filter (not included)

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 22B-D012N104 is the correct replacement?

Check the motor rating, supply voltage, drive output current, enclosure rating and control interface against your existing installation or the relevant manufacturer datasheet.

How quickly can 22B-D012N104 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 2.4 kg
