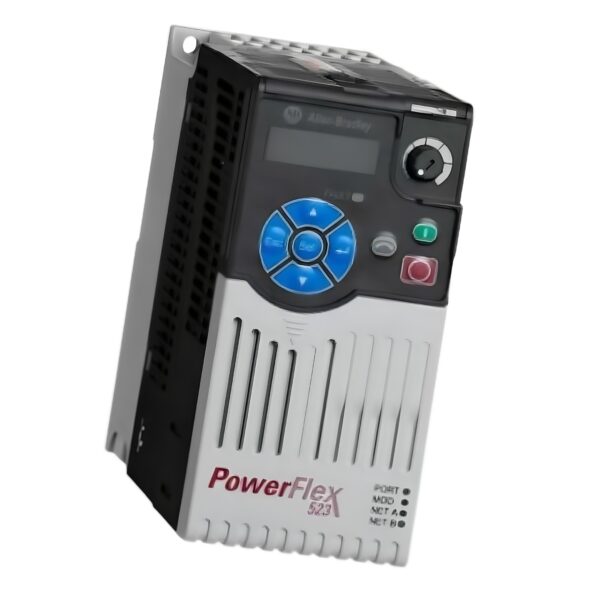

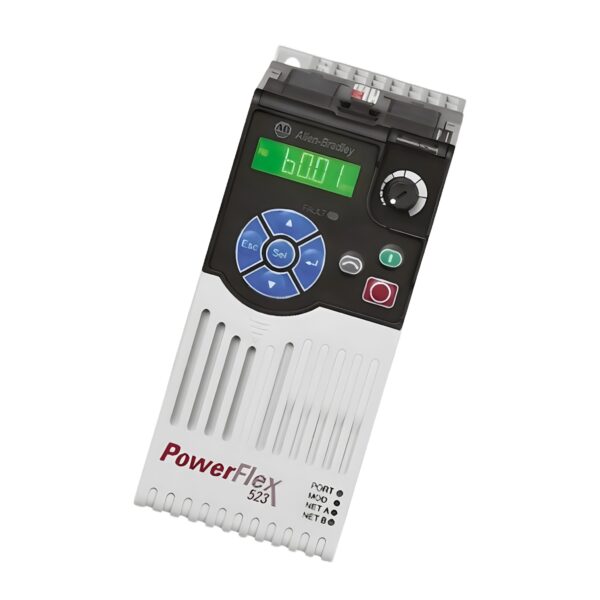

Allen Bradley 25A-A011N114 Inverter Drive – 2.2kW, IP20

The AB 25A-A011N114 is a compact AC variable frequency drive from the PowerFlex 523 series, delivering 2.2 kW (3 HP) of motor control performance in both normal and heavy duty applications. With single-phase 200–240 VAC input and three-phase output, this drive is ideal for compact machines and standalone systems needing 11 A output.

Packed into a Frame B enclosure with IP20 open-type protection, this unit includes a dynamic brake chopper, built-in Modbus RTU, and onboard I/O to support a wide range of small automation setups.

Technical Specifications

Model: 25AA011N114
Series: PowerFlex 523
Drive Type: AC Frequency Inverter
Power Rating: 2.2 kW (3 HP)
Frame Size: B
Form Factor: IP20 / NEMA Open Type
Mounting: Panel-mounted
Application: General-purpose and heavy-duty motor control

Electrical Specifications

• Input Voltage: 200–240 VAC
• Input Phase: Single-phase (1PH)
• Input Frequency: 50/60 Hz
• Output Voltage: 3-phase, up to input voltage
• Output Current (Nominal): 11 A
• Output Frequency Range: 0–500 Hz
• Dynamic Brake Chopper: Included
• Brake Resistor: Not fitted (external optional)
• Load Support: 2.2 kW for both linear and quadratic loads

I/O & Communication Interfaces

• Digital Inputs: 5
• Digital Outputs: 2
• Analog Inputs: 1
• Analog Outputs: 1
• USB Port: 1 (for programming and diagnostics)
• RS-485 Port: 1 (Modbus RTU)
• Industrial Ethernet: Not included
• Supported Protocols: Modbus RTU
• Unsupported Protocols: DeviceNet, EtherNet/IP, TCP/IP, SERCOS

Mechanical Specifications

• Width: 87 mm
• Height: 180 mm
• Depth: 172 mm
• Weight: Approx. 1.4 kg
• Cooling Method: Convection or fan-based depending on enclosure
• Control Panel: Integrated keypad included

Environmental Specifications

• Operating Temperature: 0°C to 50°C (with derating above 40°C)
• Storage Temperature: –40°C to 85°C
• Humidity: 5% to 95% RH (non-condensing)
• IP Rating: IP20 (open type)
• Application Approved For: Domestic and commercial use

Compliance & Certifications

• CE Marked: Yes
• UL / cUL Listed: Yes
• RoHS Compliant: Yes
• Standards: IEC/EN 61800-5-1, IEC/EN 61800-3

Key Features & Benefits

✅ 3 HP / 2.2 kW Output. Ideal for small motors and standalone industrial machines.

✅ 1PH In / 3PH Out. Converts single-phase supply for 3-phase control.

✅ 11 A Rated Output. Supports both normal and heavy-duty load profiles.

✅ Modbus RTU Built-In. Easy integration with Modbus-based control systems.

✅ Integrated Dynamic Brake Chopper. Ready for high-inertia loads and deceleration control.
