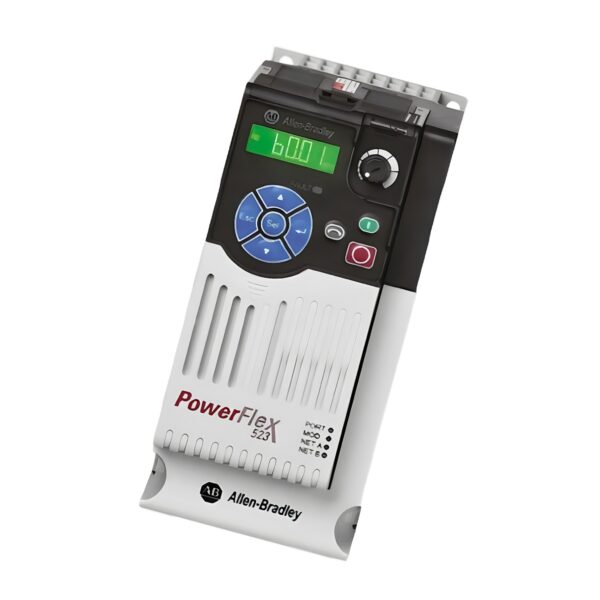

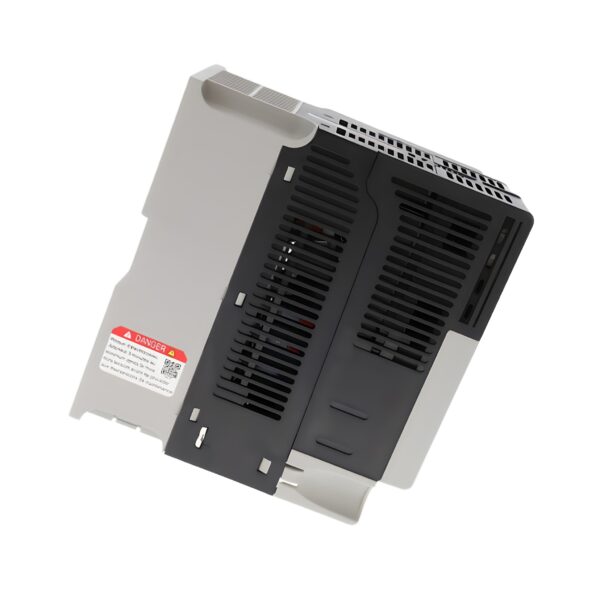

Allen Bradley 25A-D010N114 Inverter Drive – 4kW, IP20
The AB 25A-D010N114 is a three-phase AC variable frequency drive from the PowerFlex 523 series, delivering reliable 4 kW (5 HP) motor control for both normal and heavy-duty applications. Designed for 380–480 VAC three-phase input and output, this unit supplies 10.5 A of continuous output current. Housed in a Frame B enclosure with IP20 open-type protection, the drive features a built-in dynamic brake chopper, integrated Modbus RTU via RS-485, and configurable onboard I/O, making it ideal for pumps, fans, conveyors, and small machinery.
Technical Specifications
Model: 25AD010N114
Series: PowerFlex 523
Drive Type: AC Frequency Inverter
Power Rating: 4 kW (5 HP)
Frame Size: B
Form Factor: IP20 / NEMA Open Type
Mounting: Panel-mounted
Application: Industrial motors, automation systems, HVAC
Electrical Specifications
- Input Voltage: 380–480 VAC
- Input Phase: Three-phase (3PH)
- Input Frequency: 50/60 Hz
- Output Voltage: 3-phase, up to input voltage
- Output Current (Nominal): 10.5 A
- Output Frequency Range: 0–500 Hz
- Dynamic Brake Chopper: Included
- Brake Resistor: Not fitted (external optional)
- Load Support: 4 kW for both linear and quadratic loads
I/O & Communication Interfaces
- Digital Inputs: 5
- Digital Outputs: 2
- Analog Inputs: 1
- Analog Outputs: 1
- USB Port: 1 (for programming and diagnostics)
- RS-485 Port: 1 (Modbus RTU)
- Industrial Ethernet: Not included
- Supported Protocols: Modbus RTU
- Unsupported Protocols: DeviceNet, EtherNet/IP, TCP/IP, SERCOS, Data Highway
Mechanical Specifications
- Width: 87 mm
- Height: 180 mm
- Depth: 172 mm
- Weight: Approx. 1.6 kg
- Cooling Method: Convection or fan-based depending on installation
- Control Panel: Integrated keypad included
Environmental Specifications
- Operating Temperature: 0°C to 50°C (with derating above 40°C)
- Storage Temperature: –40°C to 85°C
- Humidity: 5% to 95% RH (non-condensing)
- IP Rating: IP20 (open type)
- Application Approved For: Domestic and commercial use
Compliance & Certifications
- CE Marked: Yes
- UL / cUL Listed: Yes
- RoHS Compliant: Yes
- Standards: IEC/EN 61800-5-1, IEC/EN 61800-3
Key Features & Benefits
✅ 5 HP / 4 kW Output. Ideal for pumps, fans, and small industrial machines.
✅ 3PH In / 3PH Out. Balanced voltage and current distribution.
✅ 10.5 A Rated Output. Reliable performance in high-duty environments.
✅ Modbus RTU Built-In. Seamless integration for RS-485 networks.
✅ Integrated Brake Chopper. Supports high-inertia deceleration applications.
📦 Order the Allen-Bradley 25A-D010N114 from Drive Outlet Megastore
At Drive Outlet Megastore, we provide unbeatable Allen-Bradley 25A-D010N114 prices, ideal for robust, flexible motor control. Compact, powerful, and protocol-ready, the 25A-D010N114 delivers reliable performance in demanding environments.
Check stock now or request a quote.
Efficiency powered. Precision delivered. Allen Bradley engineered. — Drive Outlet Megastore
