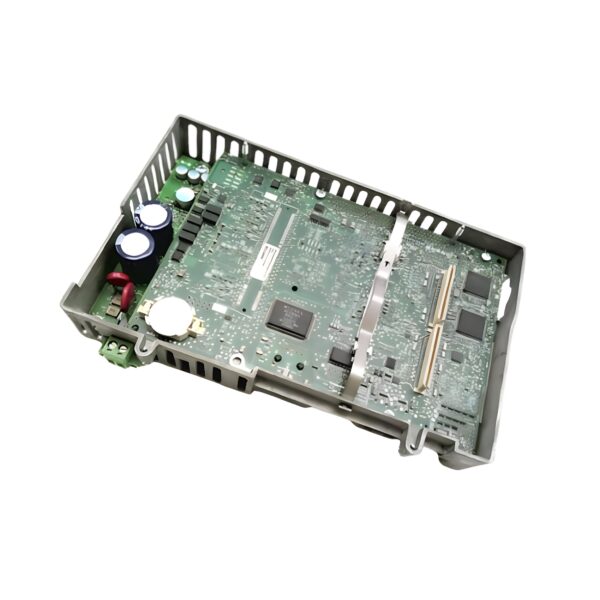

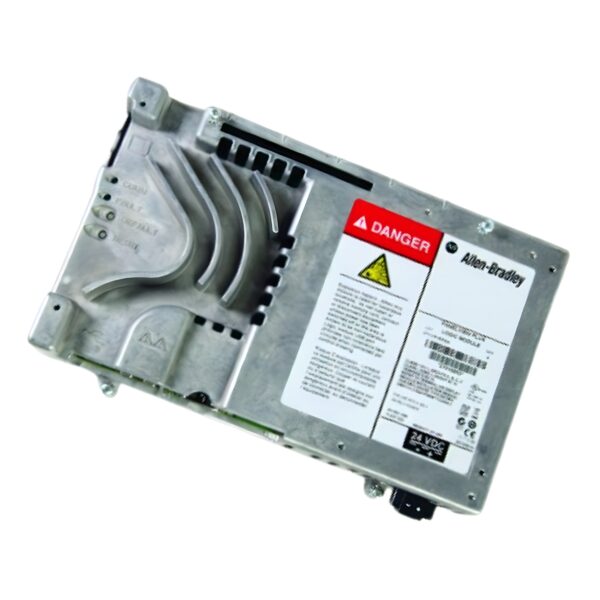

PanelView Plus Logic Module 2711P-RP8D

The AB 2711P-RP8D is the enhanced logic module for the PanelView Plus 6 series, offering significant performance upgrades for graphic terminal applications. With a 1 GHz processor, 512MB of RAM, and 512MB flash storage, this module delivers faster screen transitions, responsive interaction, and improved application handling.

It supports Ethernet and RS-232 connectivity, ActiveX controls, and remote access via VNC or FTP—making it a reliable control platform for HMI applications requiring fast performance, modern visualization, and peripheral integration.

Technical Specifications

Model: 2711PRP8D
Series: PanelView Plus 6
Module Type: Logic Module (Processor Unit)
Processor Speed: 1 GHz
RAM: 512MB
Flash Storage: 512MB
Non-Volatile Application Storage: 80MB
Mounting: Directly into PanelView Plus 6 terminal backplane
Application: HMI visualization, factory control panels, industrial automation interfaces

Electrical Specifications

Power Supply Input: 24V DC
Connectivity Ports:

• 1 × Ethernet
• 1 × RS-232
• 1 × USB Host
• 1 × USB Device

Supported Functions:

• Remote access via VNC
• Data logging via DataStore Plus
• Application restore/backup
• PDF Viewer for contextual support
• Microsoft Office Viewer support
• ActiveX control integration

Mechanical Specifications

Mounting Type: Panel mount (attaches to HMI display)
Compatibility: Compatible with PanelView Plus 6 terminals
Construction: Compact, fanless, industrial housing

Environmental Specifications

Operating Temperature: 0°C to 55°C
Storage Temperature: –25°C to +70°C
Humidity: 5% to 95% RH (non-condensing)
Vibration & Shock: Meets IEC standards for industrial use
Cooling: Fanless passive cooling

Compliance & Certifications

CE Marked: Yes
UL / cUL Listed: Yes
RoHS Compliant: Yes
Standard Compliance: IEC 61000, EN 61131

Key Features & Benefits

✅ Faster Performance: Upgraded 1 GHz processor delivers up to 70% faster screen transitions

✅ High Capacity Storage: 512MB RAM and 512MB flash for complex HMI applications

✅ Remote Connectivity: Access via VNC, FTP, and USB for flexible diagnostics and updates

✅ Broad Software Support: Compatible with ActiveX controls, .CSV recipe management, Microsoft viewers, and PDF integration

✅ Plug-and-Play Upgrade: Easy installation for new or existing PanelView Plus 6 systems

📦 Order the Allen Bradley 2711P-RP8D from Drive Outlet Megastore

At Drive Outlet Megastore, we offer unbeatable Allen Bradley 2711P-RP8D prices. Whether you’re upgrading your HMI or building new control stations, this logic module ensures peak performance and reliability for your PanelView Plus 6 terminals.

Check stock now or request a quote

Faster HMI logic. Smarter interface performance. — Drive Outlet Megastore
