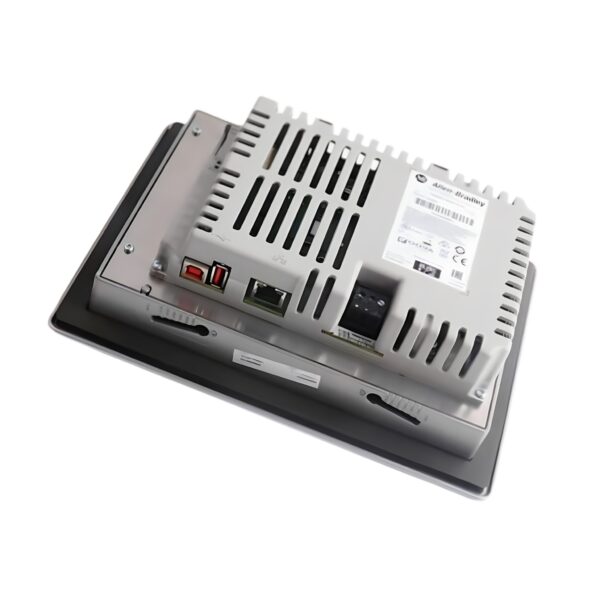

Allen Bradley 2713P-T7WD1 PanelView 5310 Wide Display

£899.94

⚡ Request a Live Quote — we’ll check today’s live pricing and send our best offer.

  • Vibrant 7-Inch Touchscreen Display – Wide aspect ratio for superior visualization.
  • Seamless Industrial Connectivity – Supports EtherNet/IP and USB interface.
  • IP66 Front Panel Protection – Designed for harsh industrial environments.
  • Compact & Space-Saving Design – Slim and lightweight for easy integration.
  • Versatile Mounting Options – Supports wall mounting or direct panel installation.
📦 Fast UK Delivery

In stock now, delivered in 3–5 working days — most orders arrive in 3–4 days. Fully tracked and insured.

🛡️ 24-Month Drive Outlet Warranty
Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.
SKU: 2713P-T7WD1 Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 2713P-T7WD1 PanelView 5310 Wide Display

The AB 2713P-T7WD1 is a PanelView 5310 graphic terminal featuring a 7-inch wide-format TFT color touchscreen, built for machine-level operator interface tasks in industrial automation. With EtherNet/IP support, 24V DC input, and native integration with Studio 5000 View Designer, this unit offers intuitive control, high-resolution visuals, and efficient commissioning.

The panel provides a full-color 16.7 million color display, supports single Ethernet port connectivity, and includes one USB interface, making it a flexible and compact HMI solution. Housed in an IP66-rated front bezel, the device is ideal for installation in demanding environments.

Technical Specifications

Model: 2713PT7WD1
Series: PanelView 5310
Display Type: 7-inch TFT color touchscreen (wide format)
Resolution: 800 x 480 (WVGA)
Aspect Ratio: 16:9 widescreen
Color Depth: 16.7 million (24-bit)
Touch Interface: Capacitive
Mounting Type: Panel or wall mount
Application: Compact machine visualization, Logix-based control, industrial HMI

Electrical Specifications

  • Supply Voltage: 24V DC
  • Input Voltage Range: 18–30 V DC
  • Voltage Type: DC
  • Power Consumption: Approx. 25 W max
  • Operating System: Embedded Windows-based OS

I/O & Communication Interfaces

  • Ethernet Ports: 1 x RJ45 (EtherNet/IP supported)
  • USB Ports: 1 x USB 2.0 Type A
  • Serial Ports: None
  • Wireless Interfaces: None
  • Supported Protocols: EtherNet/IP
  • Unsupported Protocols: RS-232, RS-485, PROFINET, DeviceNet, TCP/IP

Mechanical Specifications

  • Front Width: 237 mm
  • Front Height: 178 mm
  • Depth (Built-in): 69.5 mm
  • Mounting: Panel/wall mount
  • Display Type: TFT LCD
  • IP Rating (Front): IP66
  • Cooling Method: Passive cooling (fanless)

Environmental Specifications

  • Operating Temperature: 0°C to +55°C
  • Storage Temperature: –25°C to +70°C
  • Humidity: 5% to 95% RH (non-condensing)
  • Vibration / Shock Resistance: IEC 60068-2 compliant
  • Pollution Degree: 2

Compliance & Certifications

  • CE Marked: Yes
  • UL / cUL Listed: Yes
  • RoHS Compliant: Yes
  • EMC Standards: EN 61000-6-2, EN 61000-6-4
  • Safety Standards: EN/IEC 61010-2-201, EN 61131-2

Key Features & Benefits

✅ 7″ Widescreen Display. Compact but clear visualization with 800×480 resolution.

✅ Studio 5000 Integration. Seamlessly connects to Logix controllers with direct tag referencing.

✅ IP66 Protection. Front panel is washdown-safe and suitable for harsh environments.

✅ EtherNet/IP Support. Fast and reliable communication for networked applications.

✅ Space-Saving Design. Slim footprint fits small control panels and OEM machines.

📦 Order the Allen Bradley 2713P-T7WD1 from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley 2713P-T7WD1 prices. Compact, durable, and built for next-generation visualization, this PanelView 5310 model is ideal for performance-driven automation systems.

Check stock now or request a quote.

Widescreen control. Rockwell reliability. Built for performance. — Drive Outlet Megastore

Weight 1 kg
