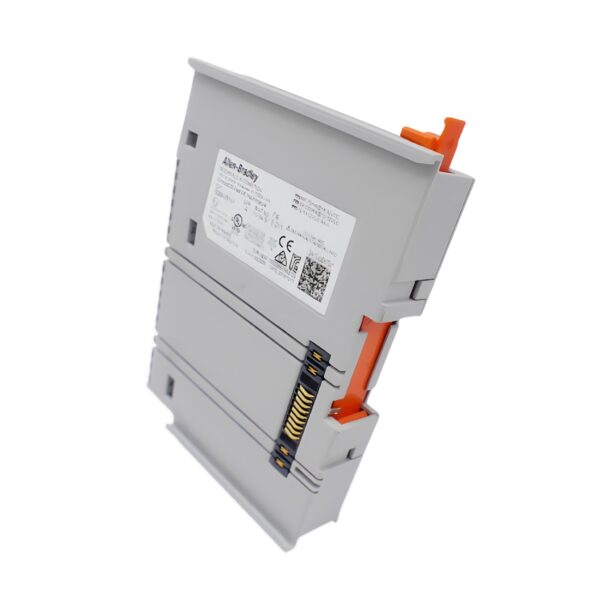

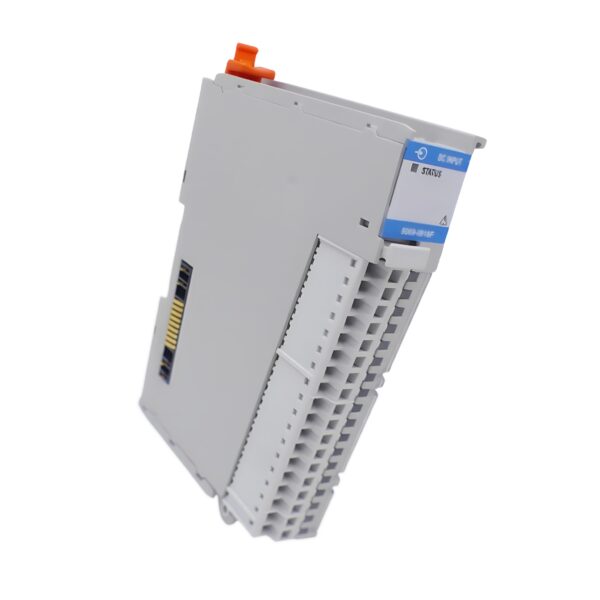

Allen Bradley 5069-IB16F Input Module

The AB 5069-IB16F is a high-speed digital input module designed for the Compact 5000 I/O platform. With 16 sink-type DC inputs operating at 12–24V, this fast-response module is ideal for capturing time-sensitive signals from sensors, switches, and encoders in high-performance applications.

Engineered for use alongside CompactLogix 5380/5480 controllers, the 5069-IB16F offers reliable signal acquisition and integration into modern industrial automation environments.

Technical Specifications

Model: 5069IB16F
Series: Compact 5000 I/O
Type: Fast Digital Input Module
Input Channels: 16
Input Type: DC Sink
Input Voltage Range: 12…24V DC
Module Type: Sourcing (sink input compatible)
Input Delay Time: 10 ms ON / 10 ms OFF (typical)
Mounting Type: DIN rail (via Compact 5000 chassis)
Plug Connection: Removable terminal block (plug-in)

Electrical Specifications

Input Signal Voltage:

• Logic HIGH: ≥ 11V DC
• Logic LOW: ≤ 5V DC

Nominal Input Voltage: 24V DC
Nominal Input Current: ~4 mA per point
Isolation Voltage: 30V (continuous), basic insulation
Backplane Current (5V): ~150 mA
Backplane Current (24V): ~20 mA
Power Dissipation: ~1.2 W
Protection Features: Reverse polarity protection (input side)
Short-Circuit Protection: Not available (input module)

Network & Interface Specifications

Communication: Via Compact 5000 backplane
Supported Protocols (via controller):
✅ EtherNet/IP
✅ TCP/IP
❌ Modbus
❌ DeviceNet
❌ ControlNet
I/O Mapping: Configured via Studio 5000
Hot Swappable: Yes, when used with powered backplane

Mechanical Specifications

Enclosure Type: Open-style module (panel-mounted via DIN rail)
Width: 25.56 mm
Height: 144.57 mm
Depth: 109.09 mm
Weight: Approx. 150 g
Installation Orientation: Vertical
Terminal Type: Plug-in connector (tool-free insertion/removal)

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: –40…85 °C
Humidity: 5% to 95% non-condensing
Shock Rating: 30 g operational
Vibration Resistance: 2 g @ 10–500 Hz
Pollution Degree: 2
Altitude Limit: Up to 2000 m
Application Suitability: Indoor use in control enclosures

Compliance & Certifications

Certifications: UL, c-UL, CE, RoHS
Standards Met: EN 61131-2, IEC 61000-6-2 / 6-4
Use with: CompactLogix 5380 / 5480 controllers
Safety Category: General use (not SIL-rated)

Key Features & Benefits

✅ 16 Fast Digital Inputs – Ideal for high-speed signal acquisition in process and machine control

✅ Sink-Type DC Input – Compatible with sourcing output sensors and field devices

✅ Compact Footprint – Narrow 25.56 mm width saves space in control panels

✅ Plug-and-Play Integration – Seamlessly installs in Compact 5000 DIN rail assemblies

✅ Tool-Free Wiring – Plug-in connector simplifies commissioning and maintenance
