Allen Bradley 5069-IY4 Analog Input Module
5069-IY4
5069-IY4
  1. Allen Bradley 5069-IY4 Analog Input Module
  2. 5069-IY4
  3. 5069-IY4

Allen Bradley 5069-IY4 Analog Input Module

£781.94 inc VAT

In Stock · Delivered in 3–5 Working Days
Estimated UK delivery time, subject to order confirmation, courier services and destination. International delivery times vary.
Technical SpecificationsAllen Bradley
Model 5069IY4
Series Compact 5000 I/O
Supported Input Types Voltage, Current, Thermocouple (TC), RTD
Communication Backplane via 5069 bus connector
Type Universal Analog Input Module
Resolution 16-bit or higher (dependent on configuration)
Input Signal Types • Voltage: ±10 V, 0–10 V, 0–5 V • Current: 0–20 mA, 4–20 mA • Thermocouple: B, E, J, K, N, R, S, T • RTD: Pt100, Pt1000, Ni100
Mounting Type DIN rail
Signal Type Selection Configurable per channel in software
Enclosure Protection IP20 when installed in cabinet
✓ Genuine OEM Parts✓ 2-Year Store-Backed Warranty✓ Technical Support

Found a Better Price? We’ll Match or Beat It!Send us the competing price or quote for a personalised offer.

🛡️ 24-Month Drive Outlet Warranty

Every product is 100% new, genuine, and backed by our exclusive 2-year warranty. We are an independent supplier and not an authorised distributor. Manufacturer warranties may not apply. See our Terms and Conditions.

SKU: 5069-IY4 Category: Tags: , , Brand:
Guaranteed Safe Checkout
Extra Features
  • 100% Brand New & Genuine OEM Product
  • Includes Full 2-Year Warranty for Peace of Mind
  • Fast UK & Worldwide Shipping – Fully Tracked
  • Expert Technical Support from Our In-House Engineers
  • Found a Better Price? We’ll Match or Beat It Instantly

Allen Bradley 5069-IY4 Analog Input Module

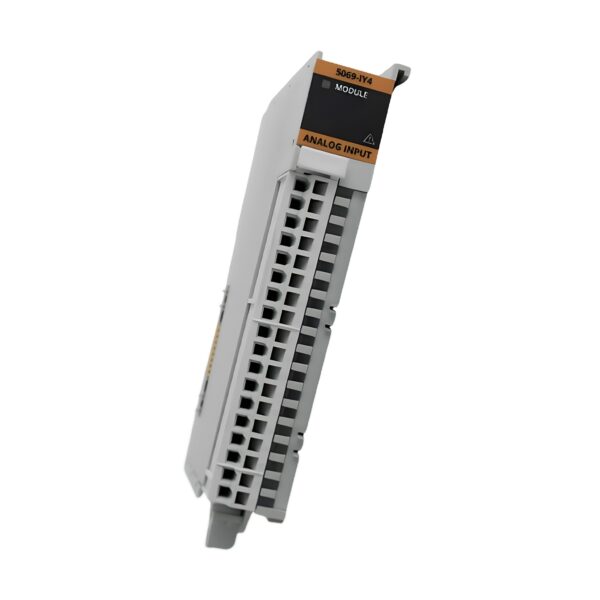

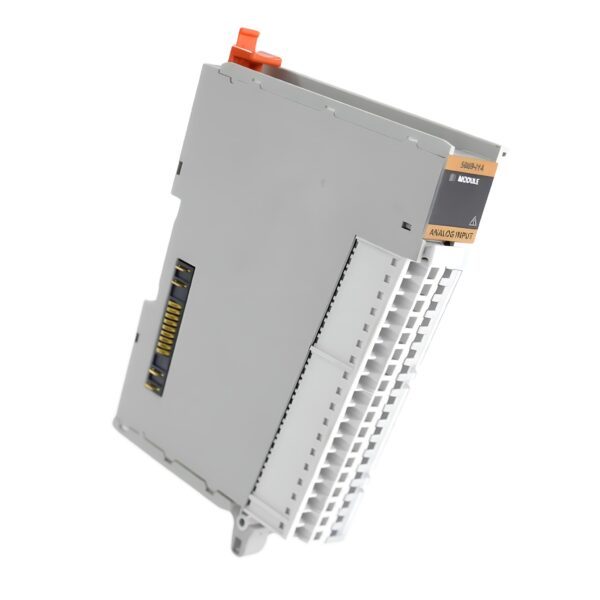

The AB 5069-IY4 is a 4-channel universal analog input module from the Compact 5000 I/O family, designed to handle multiple analog signal types—voltage, current, thermocouple (TC), and RTD—within a single module. Supporting flexible sensor integration, the 5069-IY4 enables precise data acquisition for high-performance CompactLogix 5380 control systems.

Technical Specifications

Model 5069IY4
Series Compact 5000 I/O
Type Universal Analog Input Module
Input Channels 4 individually configurable analog inputs
Supported Input Types Voltage, Current, Thermocouple (TC), RTD
Resolution 16-bit or higher (dependent on configuration)
Application Multi-signal acquisition for CompactLogix 5380/5580 systems

Electrical Specifications

Input Signal Types • Voltage: ±10 V, 0–10 V, 0–5 V • Current: 0–20 mA, 4–20 mA • Thermocouple: B, E, J, K, N, R, S, T • RTD: Pt100, Pt1000, Ni100
Input Impedance • Voltage: >1 MΩ • Current: 250 Ω
Accuracy ±0.1% of full scale (typical)
Update Rate Configurable per channel – supports fast sampling
Channel Isolation Yes – channel-to-channel and channel-to-backplane
Analog Outputs None
Cold Junction Compensation Internal (for TC input)
Open Circuit Detection Yes

Mechanical Specifications

Width 25.56 mm
Height 144.57 mm
Depth 109.09 mm
Mounting Type DIN rail
Plug-In Terminal Included
Weight Approx. 200 g
Installation Orientation Vertical recommended
Enclosure Protection IP20 when installed in cabinet

Environmental Specifications

Operating Temperature 0…60 °C
Storage Temperature –40…85 °C
Relative Humidity 5% to 95% non-condensing
Shock Resistance 30 g, 11 ms (IEC 60068-2-27)
Vibration Resistance 2 g, 10–500 Hz (IEC 60068-2-6)
Altitude Rating Up to 2000 m
Pollution Degree 2
Certifications CE, UL, cULus, RCM, RoHS
Explosion Safety Not rated for dust or gas

Compliance & Communication

System Integration 5069 Compact I/O with 5380/5580 CompactLogix controllers
Configuration Software Studio 5000 Logix Designer
Data Format Scaled engineering units or raw integer
Diagnostics Channel-level fault detection and open sensor diagnostics
Communication Backplane via 5069 bus connector
Signal Type Selection Configurable per channel in software

Related Products & Helpful Links

Frequently Asked Questions

How can I check whether 5069-IY4 is the correct replacement?

Check the exact manufacturer part number, electrical ratings, interface type, mounting and equipment compatibility against your existing equipment and the manufacturer’s datasheet.

How quickly can 5069-IY4 be delivered?

This product is listed as in stock, with estimated UK delivery in 3–5 working days. Delivery depends on order confirmation, courier services and destination.

Where can I check specifications and compatibility?

Review the specification information above and the product’s Downloads or Data Sheets tab, where documents are supplied. Our team can help check part numbers and installation compatibility.

What warranty does Drive Outlet Megastore offer?

Drive Outlet offers its own 2-year return-to-base warranty unless otherwise stated. Manufacturer warranties may not apply; please review the Terms and Conditions before ordering.

Weight 0.2 kg

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Allen Bradley Supplier UK – Automation Parts & Industrial Controls

Browse Allen Bradley products for industrial automation, PLC systems, PowerFlex drives, SMC soft starters, PanelView HMIs, I/O modules, relays and machine control spares.

⚙️ Genuine OEM Automation Parts
🔎 Search by Part Number
🚚 Fast UK & International Delivery
🛠️ Technical Sourcing Support

Popular Allen Bradley Products

Use the product links below as quick routes into this brand. If you already know your part number, use the search bar for the fastest result.

View Allen Bradley 22-COMM-E PowerFlex 40 Communication Module
View Allen Bradley 1786-RG6 Controlnet RG6 Shield 1000FT Cable
View Allen Bradley 150-F251NBD 251A 400V Soft Start – 132kW
View Allen Bradley 440R-N23117 Single Function Safety Relay
View Allen Bradley 2711P-T7C22D9P Graphic Terminal
View Allen Bradley 20F11NC043JA0NNNNN Inverter Drive – 22kW, IP20

Shop Allen Bradley by Product Category, Series & Specification

Compare Allen Bradley parts by PowerFlex series, ControlLogix or CompactLogix platform, POINT I/O type, voltage, current rating, communication protocol and exact catalogue number.

View Allen Bradley Modules
View Allen Bradley Cables
View Allen Bradley Soft Starts
View Allen Bradley Relays
View Allen Bradley Graphic Terminals
View Allen Bradley PowerFlex 753 Inverters
View All Allen Bradley Products

Need Help Finding the Right Allen Bradley Product?

If you cannot find the exact part number, send us the model code, a photo of the rating plate or the details of the machine it is fitted to. We can help check availability, replacements and suitable alternatives.

Request a Quote / Contact Us

Allen Bradley FAQs

How do I find the correct Allen Bradley product?

The fastest way is to search using the exact manufacturer part number or model code. You can also browse this brand page by product category, series and specification to compare close alternatives.

What should I check before buying Allen Bradley products?

Check the full Allen Bradley catalogue number, series letter, voltage, power rating, firmware or revision requirements, communication option and compatibility with the existing Rockwell Automation system.

Can you help if my exact Allen Bradley part number is not listed?

Yes. Send us the part number, a photo of the label or the machine details and we can check availability, replacement options and suitable alternatives.

Are these products suitable for industrial replacement jobs?

These pages are designed for maintenance teams, panel builders, OEM buyers and engineers who need part-number-led industrial automation spares for repairs, upgrades and breakdown support.

How quickly can you supply Allen Bradley products?

Availability depends on the exact product and quantity required. Check the product page or contact us and we can confirm stock position, lead time and shipping options.

View all Allen Bradley products

5069-IY4_Product-Profile.pdf5069-IY4_Technical-Drawing.pdf5069-IY4_Installation-Instructions.pdf5069-IY4_User-Manual.pdf
