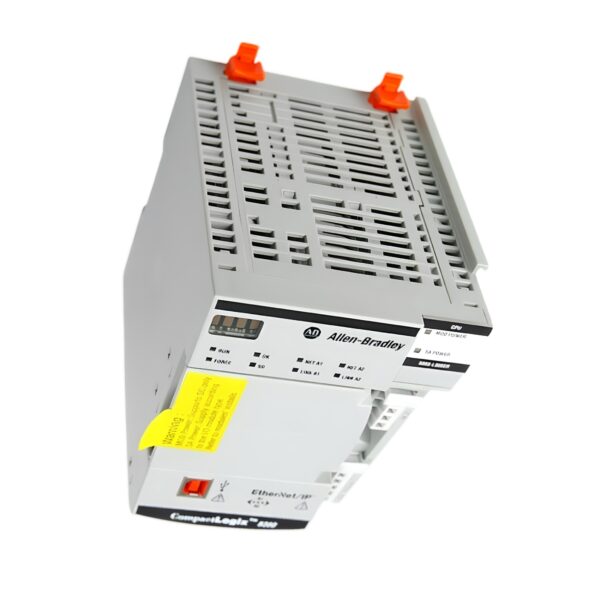

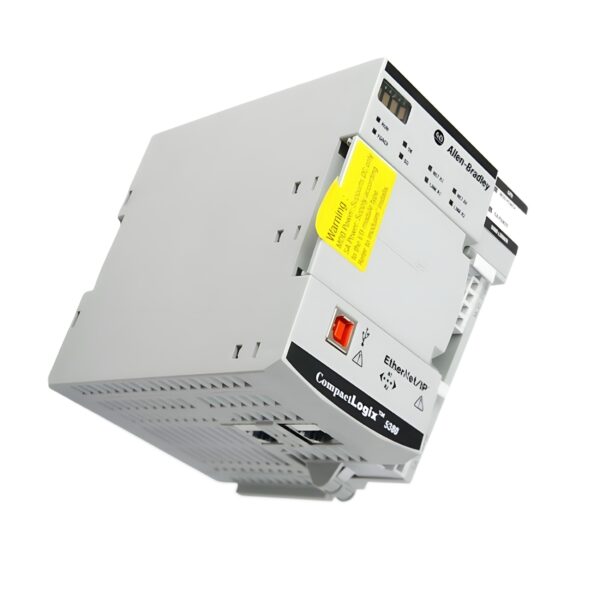

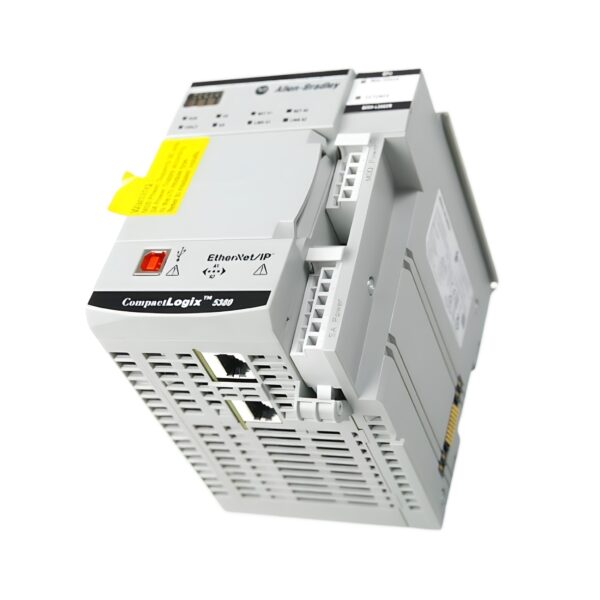

Allen Bradley 5069-L306ER CompactLogix 5380 Controller

The AB 5069-L306ER is a high-speed CompactLogix 5380 controller offering efficient machine-level control for applications requiring mid-range performance and compact design. With 600 KB user memory, 8 local I/O modules, and support for up to 16 EtherNet/IP nodes, this controller is ideal for compact automation systems where cost, speed, and reliability are key.

Equipped with dual Gigabit Ethernet ports for Device Level Ring (DLR) support, the 5069-L306ER ensures fast data transfer, robust network resilience, and seamless integration into modern control architectures. Designed to deliver real-time motion and process control, it supports up to 4 CIP motion axes and comes ready for Studio 5000 environments.

Technical Specifications

Model: 5069L306ER
Series: CompactLogix 5380
Type: Programmable Automation Controller (PAC)
Display: Yes – 4-character alpha-numeric
Memory Size: 614.4 KB
Application: Mid-range machine control, packaging, material handling, indexing systems

Electrical Specifications

Supply Voltage: 24 V DC
Power Consumption: Approx. 6 W
Communication Ports:

• 2 x 10/100/1000 Mbps Ethernet (with DLR support)
• 1 x USB Type B (programming and firmware upload)
  EtherNet/IP Support: Yes
  TCP/IP Support: Yes
  Battery: Not required – uses nonvolatile memory
  Motion Support: Up to 4 axes of CIP motion (standard configuration)

Mechanical Specifications

Width: 98.1 mm
Height: 143.97 mm
Depth: 136.81 mm
Mounting: DIN Rail
Installation Orientation: Vertical
Weight: Approx. 0.8 kg
Display Type: Built-in text-based status display

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
Shock Resistance: 30 g, 11 ms per IEC 60068-2-27
Vibration Resistance: 2 g, 10–500 Hz per IEC 60068-2-6
Certifications: CE, cULus, RCM, KC, EtherNet/IP
SIL Level: SIL 2 (IEC 61508)
Performance Level: PL d (EN ISO 13849-1)
Pollution Degree: 2

Compliance & Communication

Network Protocols: EtherNet/IP, TCP/IP
DLR Support: Yes – integrated dual Ethernet ports
USB Functionality: Yes – firmware updates and programming
Studio 5000 Compatibility: Fully supported
Redundancy Support: No
Built-in Security: Password protection, controller lock features

Key Features & Benefits

✅ High-Speed Processing – 600 KB memory and 1 ms scan times for responsive mid-range control applications

✅ Dual Ethernet Ports – DLR support ensures network redundancy and seamless communication with EtherNet/IP devices

✅ Compact Size – Slim 98 mm wide design ideal for control cabinets with limited space

✅ Integrated Display – 4-character screen provides clear status updates and diagnostics at a glance

✅ Efficient I/O Expansion – Supports up to 8 local I/O modules and 16 EtherNet/IP nodes
