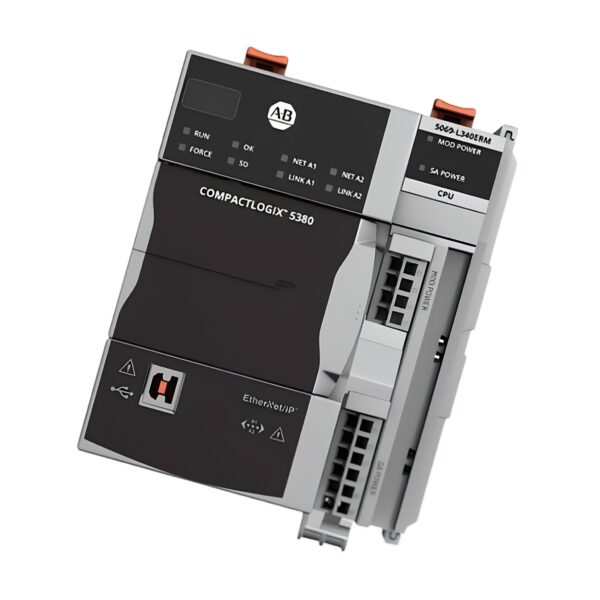

Allen Bradley 5069-L320ERM CompactLogix 5380 Controller

The AB 5069-L320ERM is a high-speed CompactLogix 5380 controller engineered for demanding applications that require motion control, high-speed networking, and precision automation. With 2 MB of user memory, dual EtherNet/IP ports, and integrated support for up to 8 CIP motion axes and 40 nodes, this controller offers excellent performance in a compact DIN-rail mountable form factor.

Perfectly suited for machine builders and system integrators, the 5069-L320ERM supports integrated motion, high-speed I/O, and modern safety features, making it a powerful solution for control architectures where speed, safety, and scale matter.

Technical Specifications

Model: 5069L320ERM
Series: CompactLogix 5380
Type: Programmable Automation Controller (PAC)
Controller Memory: 2 MB
I/O Support: 16 local I/O modules
Motion Support: Up to 8 CIP Motion axes
EtherNet/IP Nodes Supported: 40
Display: 4-character alpha-numeric status display
Application: High-speed discrete, motion, and modular control systems

Electrical Specifications

Input Voltage: 19.2–28.8 V DC (24 V DC nominal)
Power Consumption: Approx. 10 W
Memory Size: 2048 kBytes (2 MB)
Embedded Ethernet Ports: 2 x 10/100/1000 Mbps (supports DLR and linear topologies)
USB Port: 1 x USB 2.0 Type B (programming and firmware updates)
Serial Ports: None
Battery: Not required – uses non-volatile storage
Backplane Communication: Supports 5069 I/O modules directly
I/O Expansion: Up to 16 local modules plus remote I/O over EtherNet/IP

Mechanical Specifications

Width: 98.1 mm
Height: 143.97 mm
Depth: 136.81 mm
Mounting Type: DIN rail
Display Type: Built-in diagnostic alpha-numeric
Housing Style: Compact modular
Weight: Approx. 0.5 kg
Installation Orientation: Any

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
Shock Resistance: 30 g, 11 ms (IEC 60068-2-27)
Vibration Resistance: 2 g, 10–500 Hz (IEC 60068-2-6)
Altitude Rating: Up to 2000 m
Ingress Protection: IP20 (when installed in enclosure)
Certifications: CE, cULus, RCM, RoHS
SIL Rating: SIL 2 (IEC 61508)
Performance Level: PL d (EN ISO 13849-1)

Compliance & Communication

Supported Protocols: EtherNet/IP, TCP/IP
Integrated Motion Support: Yes – 8 CIP Motion Axes
Safety Features: Compatible with safety I/O and safety controllers
Programming Software: Studio 5000 Logix Designer
Diagnostics: Status indicators, onboard display, controller diagnostics
Chassis Integration: Part of 5069 CompactLogix platform
Security: Role-based access and password protection supported

Key Features & Benefits

✅ 2MB Memory with Motion Support – Handles complex control routines and up to 8 coordinated axes

✅ Dual Gigabit Ethernet Ports – Fast, redundant network support with DLR topology compatibility

✅ Compact DIN-Rail Mounting – Ideal for small to medium applications with limited panel space

✅ Integrated I/O and Motion Control – Combine fast local control with real-time EtherNet/IP expansion

✅ Studio 5000 Integration – Simplifies programming, commissioning, and diagnostics
