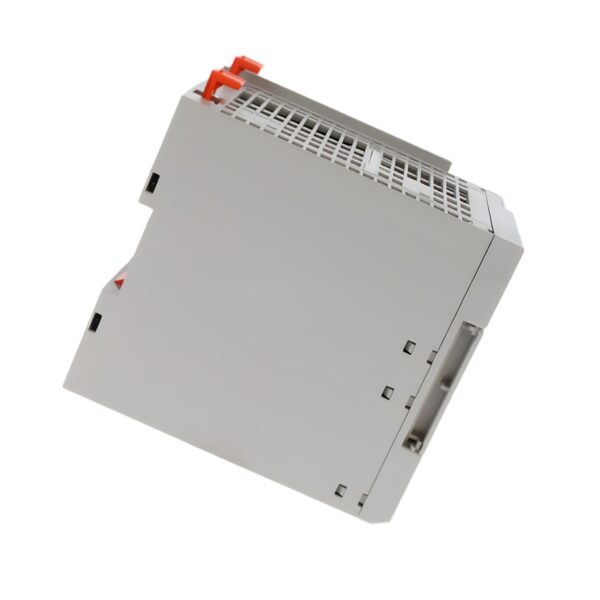

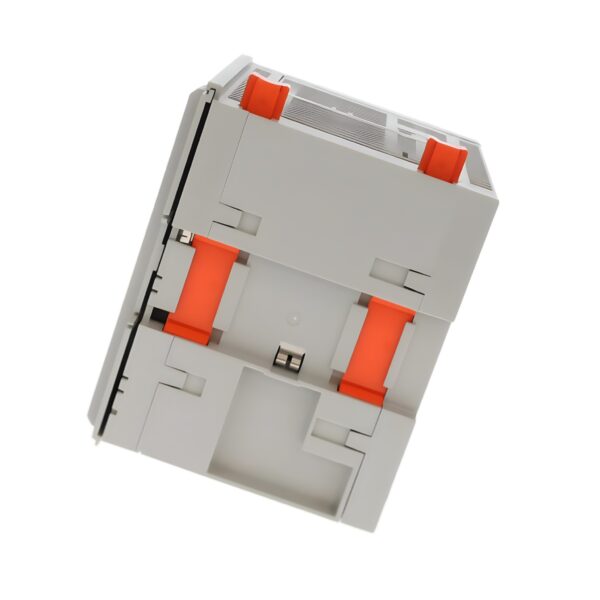

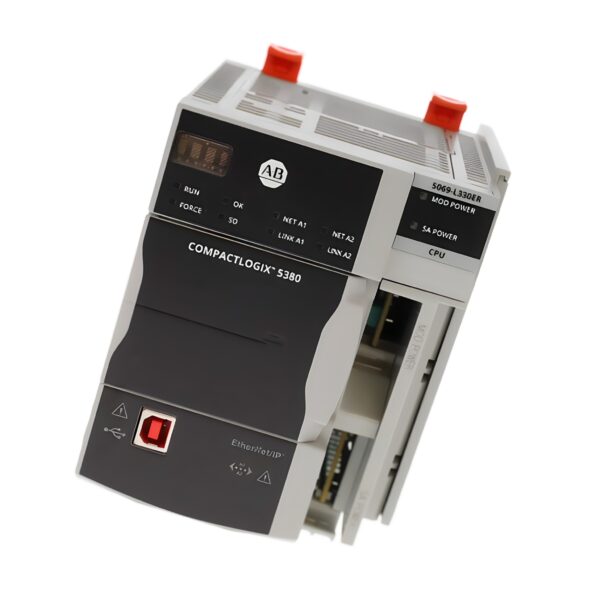

Allen Bradley 5069-L330ER CompactLogix 5380 Controller

The AB 5069-L330ER is a high-performance CompactLogix 5380 controller featuring 3 MB of user memory and dual EtherNet/IP ports. Designed for demanding mid-to-large automation systems, this controller supports up to 50 EtherNet/IP nodes and 31 local I/O modules—making it ideal for applications requiring speed, safety, and scalability.

With integrated SIL 2 and PL d functional safety ratings, real-time diagnostics, and embedded USB and Ethernet ports, the 5069-L330ER delivers fast processing, secure communications, and seamless integration into Logix-based control architectures.

Technical Specifications

Model: 5069L330ER
Series: CompactLogix 5380
Type: Programmable Automation Controller (PAC)
Memory Size: 3 MB (3072 kB) user memory
Max Local I/O Modules: 31
Max Remote EtherNet/IP Nodes: 50
Form Factor: Compact
Mounting: DIN rail or panel
Integrated Display: Yes
Front Installation: Supported
Battery Backup: Energy storage module (optional – 5069-ESMC series)

Electrical Specifications

Power Supply: Supplied via 5069 I/O power supply module
Backplane Current (3.3V): 1.5 A
Power Dissipation: Approx. 6.5 W
Heat Dissipation: Approx. 22.2 BTU/hr
Isolation Voltage: 30V (continuous), basic insulation
Protection Type: Internal electronic protection, surge and ESD protection

Network & Interface Specifications

Integrated Interfaces:

• EtherNet/IP Ports: 2 (embedded dual ports for DLR or linear topology)
• USB Port: 1 (Type B for programming and diagnostics)

Supported Protocols:
EtherNet/IP
TCP/IP
Modbus TCP (via Logix application support)
CIP Safety (with supported devices)

Network Redundancy: Supported (via Device-Level Ring)
Software: Studio 5000 Logix Designer v30 or later

Mechanical Specifications

Width: 98.1 mm
Height: 143.97 mm
Depth: 136.81 mm
Mounting Orientation: Vertical DIN rail
Enclosure Type: Open-type for control cabinet installation
Weight: Approx. 0.85 kg

Environmental Specifications

Operating Temperature: 0…60 °C
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
Vibration Resistance: 2 g @ 10–500 Hz
Shock Rating: 30 g operating, 50 g non-operating
Pollution Degree: 2
Certifications: Class I Div 2 hazardous locations

Compliance & Certifications

Certifications: UL, c-UL, CE, RoHS
SIL Rating: SIL 2 (IEC 61508)
Performance Level: PL d (EN ISO 13849-1)
EMC Compliance: EN 61000-6-2 / 6-4
Standards Met: EN 61131-2, IEC 61508
Functional Safety: Suitable for safety-related automation (with proper configuration)

Key Features & Benefits

✅ 3 MB User Memory – Supports data-rich logic applications and complex sequencing

✅ Dual EtherNet/IP Ports – Enable ring, linear, or star topologies with real-time data exchange

✅ Compact & Scalable Design – Supports 31 local I/O modules and 50 remote nodes

✅ Integrated Safety Compliance – SIL 2 / PL d rated for safety-critical applications

✅ USB Programming Port – Fast project downloads, diagnostics, and firmware updates
