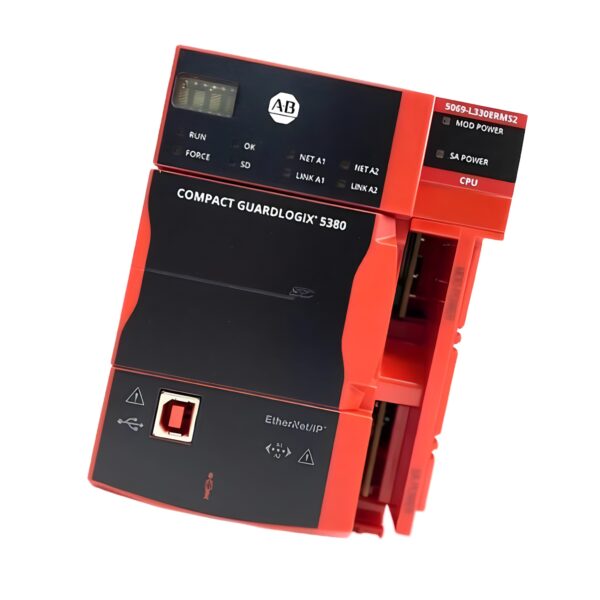

Allen Bradley 5069-L330ERMS2 GuardLogix 5380 Safety Controller

The AB 5069-L330ERMS2 is a high-performance safety controller from the Compact GuardLogix 5380 family, engineered for machine control systems that require integrated safety. Combining standard and safety control in a single processor, this controller offers 3.0 MB of standard user memory and 1.5 MB of safety memory, supporting SIL 2 and PL d safety levels for demanding industrial applications.

With dual Ethernet ports, the 5069-L330ERMS2 supports up to 60 EtherNet/IP nodes, 31 local I/O modules, and 16 coordinated motion axes—ideal for advanced applications in automotive, packaging, and material handling where speed, safety, and scalability are critical.

Technical Specifications

Model: 5069L330ERMS2
Series: Compact GuardLogix 5380
Controller Type: Safety + Standard Integrated CPU
Memory (Standard): 3.0 MB
Memory (Safety): 1.5 MB
Safety Integrity Level (SIL): SIL 2 (IEC 61508)
Performance Level (PL): PL d (EN ISO 13849-1)
Application: Machine control, motion control, integrated safety

Electrical & Processing Specifications

Number of Axes (Integrated Motion): 16
I/O Module Support: Up to 31 local 5069 I/O modules
EtherNet/IP Devices Supported: Up to 60 nodes
Number of Relay Outputs: 0
Embedded Display: Yes (diagnostics and status)
Supported Protocols: EtherNet/IP, TCP/IP
Unsupported Protocols: DeviceNet, ControlNet, Modbus

Communication Interfaces

Industrial Ethernet Ports: 2
USB Ports: 1 (for programming and diagnostics)
Backplane: 5069 Compact I/O bus
Programming Environment: Studio 5000 Logix Designer
Configuration Options: Remote/Local download, safety signature enforcement

Mechanical Specifications

Width: 98.1 mm
Height: 143.97 mm
Depth: 136.81 mm
Mounting Style: DIN rail
Display: Integrated front panel display
Construction: Modular Compact I/O form factor

Environmental Specifications

Operating Temperature: 0°C to 60°C
Storage Temperature: –40°C to 85°C
Humidity: 5% to 95% RH (non-condensing)
IP Rating: IP20 (for control cabinet installation)
Altitude: Up to 2000 m without derating

Compliance & Certifications

CE Marked: Yes
UL / cUL Listed: Yes
RoHS Compliant: Yes
SIL Certification: IEC 61508
PL Certification: EN ISO 13849-1

Key Features & Benefits

✅ Dual Functionality: Combines standard and safety logic in one controller

✅ SIL 2 / PL d Certified: Compliant with global safety standards for functional safety applications

✅ High-Capacity Memory: 3.0 MB standard + 1.5 MB safety memory for complex logic systems

✅ Integrated Motion: Control up to 16 axes with seamless EtherNet/IP synchronization

✅ Compact & Scalable: Fits into tight panels and scales with up to 31 local I/O modules
