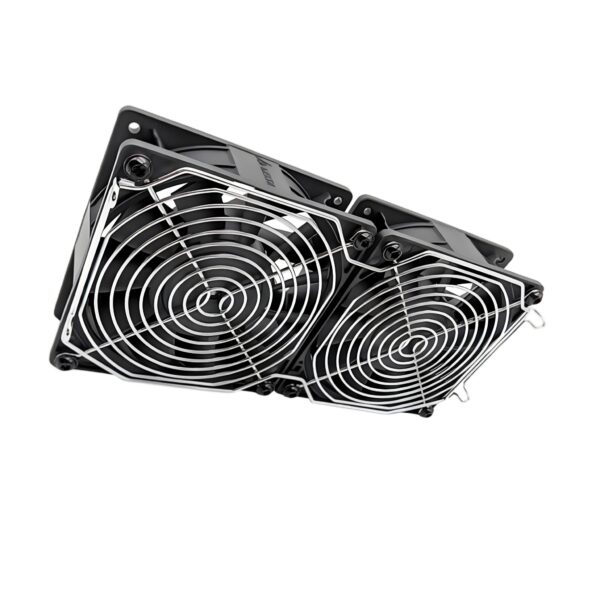

Allen Bradley SK-R9-FAN11-F6 PowerFlex 750 Heatsink Fan Kit

The AB SK-R9-FAN11-F6 is a replacement heatsink fan kit for Allen Bradley PowerFlex 750-Series AC drives, specifically designed for Frame Size 6 and Frame Size 7 units. This NEMA 1 rated fan assembly helps maintain optimal operating temperatures in demanding industrial environments, improving drive longevity and performance under high thermal loads.

Designed as a field-replaceable component, the SK-R9-FAN11-F6 ensures continued operation of your PowerFlex 755 and 753 drives by enabling effective heat dissipation through the drive’s rear heatsink section.

Technical Specifications

Model: SKR9FAN11F6
Series: PowerFlex 750
Type: Replacement Heatsink Fan Kit
Application: Forced air cooling for PowerFlex 750 Series Drives
Compatible Frame Sizes: Frame Size 6 and 7
Enclosure Rating: NEMA Type 1
Location: Rear heatsink fan
Mounting: Internal, rear-mounted

Electrical Specifications

Power Source: Powered internally by the drive
Voltage Rating: Supplied through integrated control board
Current Draw: Minimal (fan-specific)
Fuse Protection: Not applicable
Thermal Management Type: Forced convection (active cooling)
Control Logic: Drive-controlled fan operation based on thermal profile
Replacement Type: Factory serviceable or field-replaceable

Mechanical Specifications

Assembly Type: Pre-assembled fan module
Cooling Method: Axial fan(s), direct-mount to heatsink
Mounting Orientation: Vertical recommended
Frame Compatibility: For use with PowerFlex Frame Size 6 and 7 drives only
Installation Tools Required: Standard drive service tools
Weight: Approx. 1.2 kg
Dimensions: Matches drive form factor (enclosure specific)

Environmental Specifications

Operating Temperature: Matches host drive rating (typically –20…50 °C)
Storage Temperature: –40…85 °C
Relative Humidity: 5% to 95% non-condensing
Pollution Degree: 2
Ingress Protection: NEMA 1 (when installed in enclosure)
Certifications: UL Recognized, CE, RoHS Compliant
Cooling Compliance: Matches drive heat dissipation spec

Compliance & Application Notes

Drive Compatibility:

• PowerFlex 755
• PowerFlex 753
• Only for use in Frame Size 6 or 7 models
  Maintenance Interval: Replace fan approximately every 40,000–50,000 hours or as required based on temperature duty cycle
  Installation Note: Disconnect power and follow Rockwell Automation safety procedures before servicing

Key Features & Benefits

✅ Compatible with Frame 6 & 7 PowerFlex 750 Drives – Ensures proper cooling and thermal performance

✅ Reliable Fan Design – Maintains internal drive temperature for optimal operational lifespan

✅ NEMA 1 Rated – Suitable for standard industrial enclosures

✅ Factory-Specified Cooling – Matches Rockwell’s thermal management specifications

✅ Easy Field Replacement – Minimize downtime with simple swap-out installation

📦 Order the Allen Bradley SK-R9-FAN11-F6 from Drive Outlet Megastore

At Drive Outlet Megastore we offer unbeatable Allen Bradley SK-R9-FAN11-F6 prices. This essential cooling accessory for PowerFlex 750 drives is the perfect replacement to keep your automation systems running cool and efficiently.

Click here to request a quote or check availability

Drive Outlet Megastore – your trusted source for Allen Bradley drive accessories, fan kits, and thermal management solutions.
