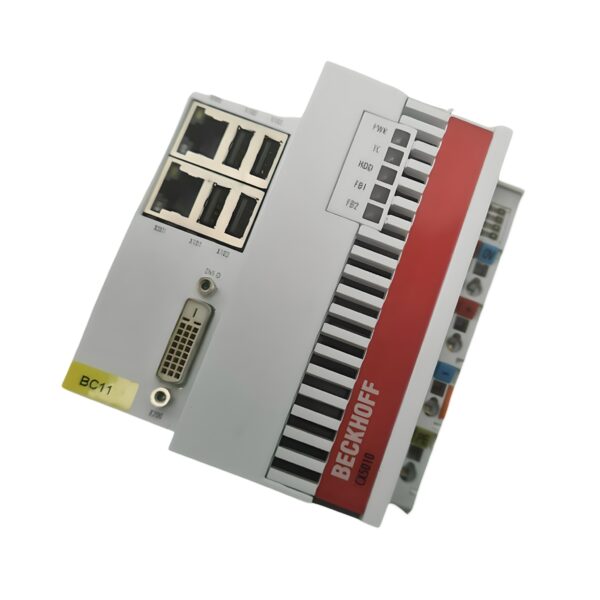

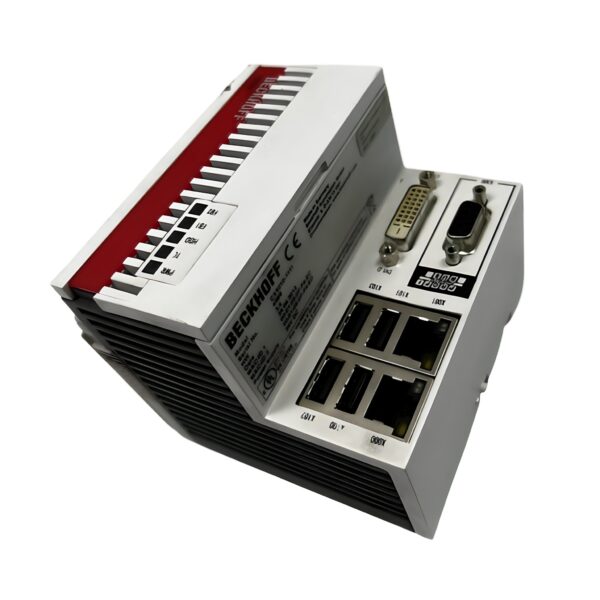

Beckhoff CX5010-0112 Embedded PC

The Beckhoff CX5010-0112 is a powerful DIN-rail mountable Embedded PC featuring an Intel Atom Z510 processor running at 1.1 GHz. Designed for industrial automation, it combines compact form factor with advanced connectivity, making it ideal for decentralized control systems using EtherCAT I/O.

This unit includes a 128 MB Compact Flash card (expandable), 512 MB of internal RAM, 2 x Gigabit Ethernet ports, and 4 x USB 2.0 interfaces. It supports TwinCAT 3 (performance class 40) for robust PLC and motion control.

Technical Specifications

Part Number: CX5010-0112 Beckhoff
Series: CX5010
CPU: Intel Atom Z510, 1.1 GHz
Performance Class: TwinCAT 3 – Performance Class 40
Operating System: Dependent on configuration (licensed separately)
Runtime Environment: TwinCAT 3 compatible (license required)

Memory & Storage

RAM: 512 MB DDR2 (non-expandable)
Flash Memory: 128 MB Compact Flash card (exchangeable & expandable)
NOVRAM: Optional, varies by model

Interfaces & Connectivity

Ethernet: 2 x RJ45 (10/100/1000 Mbit/s)
USB: 4 x USB 2.0 ports
Display Output: DVI-I (optional based on configuration)
I/O Interface: E-Bus or K-Bus depending on backplane module
Additional Interfaces: RS232/RS485 (via extension modules)

Electrical Specifications

Power Supply: 24 V DC (-15% / +20%)
Power Consumption: Approx. 10–13 W
Current Supply to I/O Bus: Up to 2 A

Mechanical Specifications

Mounting: DIN rail (EN 60715, 35 mm)
Cooling: Passive, fanless design
Protection Class: IP20
Dimensions (W x H x D): 64 mm x 100 mm x 91 mm
Weight: Approx. 300 g

Environmental Specifications

Operating Temperature: -25…+60°C
Storage Temperature: -40…+85°C
Relative Humidity: 95%, non-condensing
Vibration/Shock Resistance: EN 60068-2-6 / EN 60068-2-27
EMC Immunity/Emission: EN 61000-6-2 / EN 61000-6-4

Certifications

Approvals: CE, UL
IP Rating: IP20
Product Status: Active / Regular Delivery

Key Product Features

✅ 1.1 GHz Intel Atom Z510 processor for low-power industrial control.

✅ 2 x Gigabit Ethernet ports for fast and redundant networking.

✅ 4 x USB 2.0 ports for peripheral expansion.

✅ 128 MB CF card for compact storage with expandability.

✅ DIN-rail mountable with fanless, IP20 design.

📦 Buy Beckhoff CX5010-0112 Embedded PC – Fanless DIN-Rail Controller with USB & Ethernet

At Drive Outlet Megastore we offer unbeatable Beckhoff CX5010-0112 prices.

Perfect for space-saving industrial control, this Embedded PC delivers reliable automation and flexible connectivity options.

Contact us now to check stock availability or request a quotation for volume orders.
